Cable and Cord Grips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Type | Outside Cable Diameter (Min) | Outside Cable Diameter (Max) | Thread Size | Thread Length | Conduit Hub Size | Panel Hole Size | Material | Includes | Color | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
21653.6CABLE GLAND 6.6-9.4MM PG11 BRASS |
3,108 |
|
Datasheet | Cable Gland | 0.260" (6.60mm) | 0.370" (9.40mm) | PG11 | 0.240" (6.10mm) | - | 0.730" (18.5mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
21503.6CABLE GLAND 6.86-10.41MM PG9 |
1,111 |
|
Datasheet | Cable Gland | 0.270" (6.86mm) | 0.410" (10.41mm) | PG9 | 0.240" (6.10mm) | - | 0.600" (15.2mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
97270.6CABLE GLAND 4.06-6.6MM M12 BRASS |
3,762 |
|
Datasheet | Cable Gland | 0.160" (4.06mm) | 0.260" (6.60mm) | M12x1.5 | 0.200" (5.08mm) | - | 0.470" (11.9mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP54 - Dust Protected, Water Resistant; NEMA 13 | -40°C ~ 300°C | |
|
97179.6CABLE GLND 5.08-7.87MM M20 BRASS |
1,018 |
|
Datasheet | Cable Gland | 0.200" (5.08mm) | 0.310" (7.87mm) | M20x1.5 | 0.240" (6.10mm) | - | 0.790" (20.1mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
21658.6CABLE GLAND 8.89-12.95MM PG13.5 |
1,450 |
|
Datasheet | Cable Gland | 0.350" (8.89mm) | 0.510" (12.95mm) | PG13.5 | - | - | 0.830" (21.1mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
21684.6CABLE GLAND 8.89-12.95MM PG11 |
3,341 |
|
Datasheet | Cable Gland | 0.350" (8.89mm) | 0.510" (12.95mm) | PG11 | 0.240" (6.10mm) | - | 0.730" (18.5mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
|
96822.1PCCABLE GLAND M40 POLYAMIDE |
2,853 |
|
Datasheet | Cable Gland | - | - | M40x1.5 | - | - | - | Polyamide (PA), Nylon | - | Black | - | -20°C ~ 100°C | |
|
97141.6CABLE GLAND 4.06-6.6MM M25 BRASS |
4,788 |
|
Datasheet | Cable Gland | 0.160" (4.06mm) | 0.260" (6.60mm) | M25x1.5 | 0.300" (7.62mm) | - | 0.980" (24.9mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|

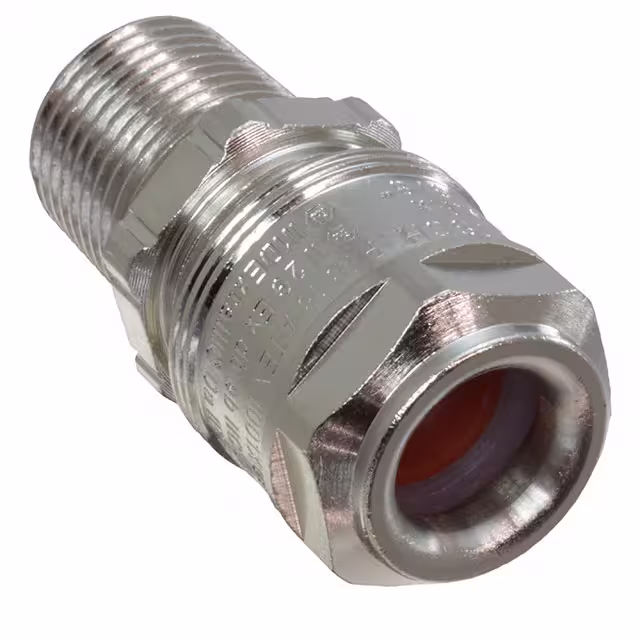

LEX3038MSHTSCABLE GLND 7-11MM 3/8" NPT BRASS |
3,396 |
|
Datasheet | Cable Gland | 0.276" (7.00mm) | 0.433" (11.00mm) | 3/8" NPT | 0.630" (16.00mm) | - | - | Brass, Nickel Plated | - | Silver | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -60°C ~ 130°C | |
|
21621.6CABLE GLAND 7.87-10.92MM M16 |
4,709 |
|
Datasheet | Cable Gland | 0.310" (7.87mm) | 0.430" (10.92mm) | M16x1.5 | 0.390" (9.91mm) | - | 0.630" (16.0mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C |
