Cable and Cord Grips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Type | Outside Cable Diameter (Min) | Outside Cable Diameter (Max) | Thread Size | Thread Length | Conduit Hub Size | Panel Hole Size | Material | Includes | Color | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

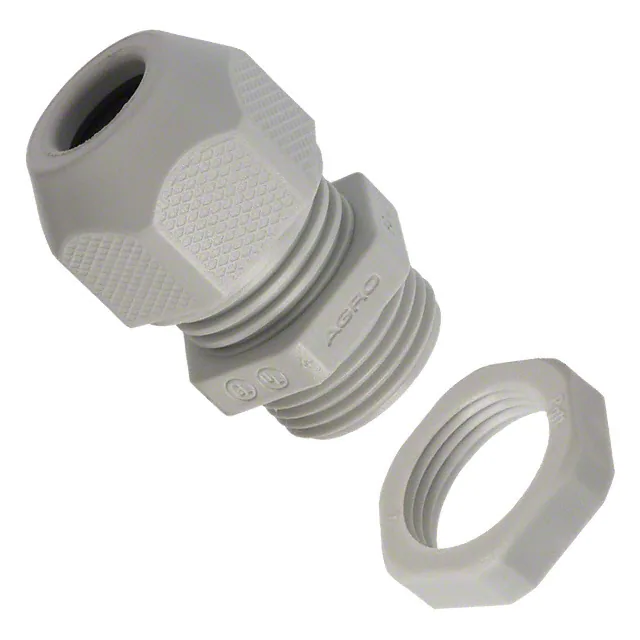

A1555.11.07CABLE GLAND 2-7MM PG11 POLYAMIDE |
3,309 |
|
Datasheet | Cable Gland | 0.079" (2.00mm) | 0.276" (7.00mm) | PG11 | 0.315" (8.00mm) | - | 0.732" (18.6mm) | Polyamide (PA), Nylon | Sealing Ring | Light Gray | IP68 - Dust Tight, Waterproof | -30°C ~ 100°C | |
|
A1100.13.080CABLE GLAND 6-8MM PG13 BRASS |
1,208 |
|
Datasheet | Cable Gland | 0.236" (6.00mm) | 0.315" (8.00mm) | PG13 | 0.394" (10.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
A1000.3/8NPT.080CABLE GLAND 6-8MM 3/8" NPT BRASS |
3,464 |
|
Datasheet | Cable Gland | 0.236" (6.00mm) | 0.315" (8.00mm) | 3/8" NPT | 0.472" (12.00mm) | - | - | Brass, Nickel Plated | Seal | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|

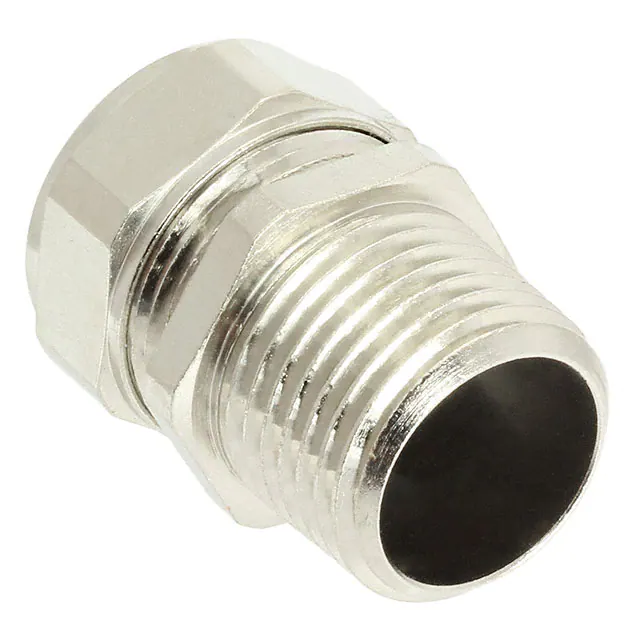

A1000.1/2NPT.080CABLE GLAND 6-8MM 1/2" NPT BRASS |
4,121 |
|
Datasheet | Cable Gland | 0.236" (6.00mm) | 0.315" (8.00mm) | 1/2" NPT | 0.591" (15.00mm) | - | - | Brass, Nickel Plated | Seal | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|

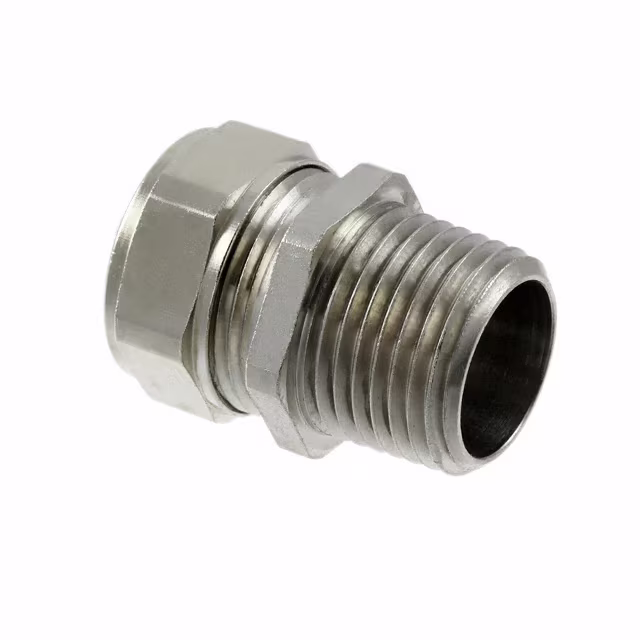

A1000.1/2NPT.110CABLE GLND 8-11MM 1/2" NPT BRASS |
1,386 |
|
Datasheet | Cable Gland | 0.315" (8.00mm) | 0.433" (11.00mm) | 1/2" NPT | 0.591" (15.00mm) | - | - | Brass, Nickel Plated | Seal | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|

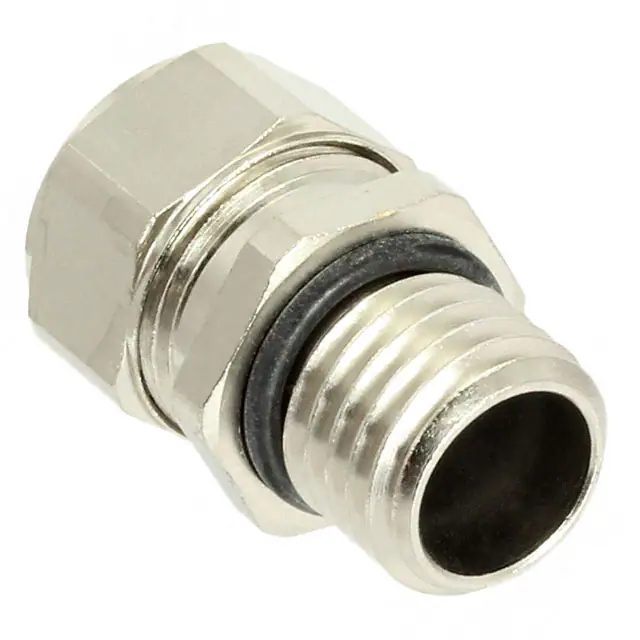

A1100.12.065CABLE GLAND 5-6.5MM M12 BRASS |
3,850 |
|
Datasheet | Cable Gland | 0.197" (5.00mm) | 0.256" (6.50mm) | M12x1.5 | 0.394" (10.00mm) | - | 0.472" (12.0mm) | Brass, Nickel Plated | O-Ring, Seal, Strain Relief | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
A1100.10.040CABLE GLAND 3-4MM M10 BRASS |
1,678 |
|
Datasheet | Cable Gland | 0.118" (3.00mm) | 0.157" (4.00mm) | M10x1.5 | 0.394" (10.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal, Strain Relief | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|

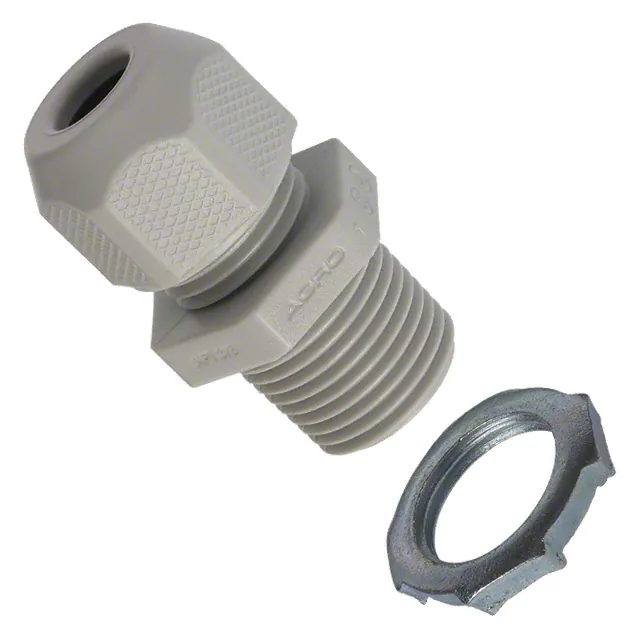

A1555.N0375.08CABLE GLAND 3-8MM 3/8" NPT |
1,203 |
|
Datasheet | Cable Gland | 0.118" (3.00mm) | 0.315" (8.00mm) | 3/8" NPT | 0.591" (15.00mm) | - | - | Polyamide (PA), Nylon | Sealing Ring | Light Gray | IP54/IP68 - Dust Protected, Dust Tight, Waterproof, Water Resistant | -30°C ~ 100°C | |
|
A1555.20.08CABLE GLAND 3.5-8MM M20 POLYAMID |
2,258 |
|
Datasheet | Cable Gland, Short Entry | 0.138" (3.50mm) | 0.315" (8.00mm) | M20x1.5 | 0.354" (9.00mm) | - | 0.787" (20.0mm) | Polyamide (PA), Nylon | Sealing Ring | Light Gray | IP68 - Dust Tight, Waterproof | -30°C ~ 100°C | |
|
A1545.13.07CABLE GLAND 3-7MM PG13 POLYAMIDE |
1,722 |
|
Datasheet | Cable Gland | 0.118" (3.00mm) | 0.276" (7.00mm) | PG13 | 0.354" (9.00mm) | - | - | Polyamide (PA), Nylon | Sealing Ring | Black | IP68 - Dust Tight, Waterproof | -30°C ~ 100°C |
