Cable and Cord Grips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Type | Outside Cable Diameter (Min) | Outside Cable Diameter (Max) | Thread Size | Thread Length | Conduit Hub Size | Panel Hole Size | Material | Includes | Color | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A1100.32.170CABLE GLAND 14-16.99MM M32 BRASS |
2,681 |
|
Datasheet | Cable Gland | 0.551" (14.00mm) | 0.669" (16.99mm) | M32x1.5 | 0.512" (13.00mm) | - | 1.260" (32.0mm) | Brass, Nickel Plated | O-Ring, Seal, Strain Relief | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
|
A1100.32.255CABLE GLAND 21-25.5MM M32 BRASS |
2,121 |
|
Datasheet | Cable Gland | 0.827" (21.00mm) | 1.004" (25.50mm) | M32x1.5 | 0.512" (13.00mm) | - | 1.260" (32.0mm) | Brass, Nickel Plated | O-Ring, Seal, Strain Relief | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
|
A1100.29.190CABLE GLAND 16-19MM PG29 BRASS |
4,769 |
|
Datasheet | Cable Gland | 0.630" (16.00mm) | 0.748" (19.00mm) | PG29 | 0.472" (12.00mm) | - | 1.457" (37.0mm) | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
|
A1100.29.230CABLE GLAND 19-23MM PG29 BRASS |
3,873 |
|
Datasheet | Cable Gland | 0.748" (19.00mm) | 0.906" (23.00mm) | PG29 | 0.472" (12.00mm) | - | 1.457" (37.0mm) | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
|
A1100.29.275CABLE GLAND 23-27.5MM PG29 BRASS |
4,059 |
|
Datasheet | Cable Gland | 0.906" (23.00mm) | 1.083" (27.50mm) | PG29 | 0.472" (12.00mm) | - | 1.457" (37.0mm) | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|

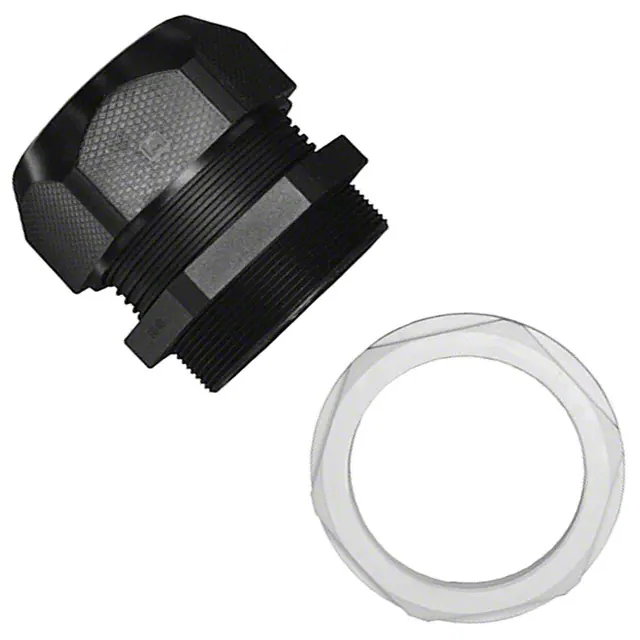

A1545.48.44CABLE GLAND 32-44MM PG48 |
1,681 |
|
Datasheet | Cable Gland | 1.260" (32.00mm) | 1.732" (44.00mm) | PG48 | 0.591" (15.00mm) | - | 2.338" (59.3mm) | Polyamide (PA), Nylon | Sealing Ring | Black | IP68 - Dust Tight, Waterproof | -30°C ~ 100°C | |
|
A1555.48.44CABLE GLAND 32-44MM PG48 |
3,510 |
|
Datasheet | Cable Gland | 1.260" (32.00mm) | 1.732" (44.00mm) | PG48 | 0.591" (15.00mm) | - | 2.338" (59.3mm) | Polyamide (PA), Nylon | Sealing Ring | Light Gray | IP68 - Dust Tight, Waterproof | -30°C ~ 100°C | |
|
|
A1545.20.1.12CABLE GLAND 5.5-12MM M20 |
4,824 |
|
Datasheet | Cable Gland, Long Entry | 0.217" (5.50mm) | 0.472" (12.00mm) | M20x1.5 | - | - | 0.787" (20.0mm) | Polyamide (PA), Nylon | Sealing Ring | Black | IP68 - Dust Tight, Waterproof | - |
