Cable and Cord Grips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Type | Outside Cable Diameter (Min) | Outside Cable Diameter (Max) | Thread Size | Thread Length | Conduit Hub Size | Panel Hole Size | Material | Includes | Color | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

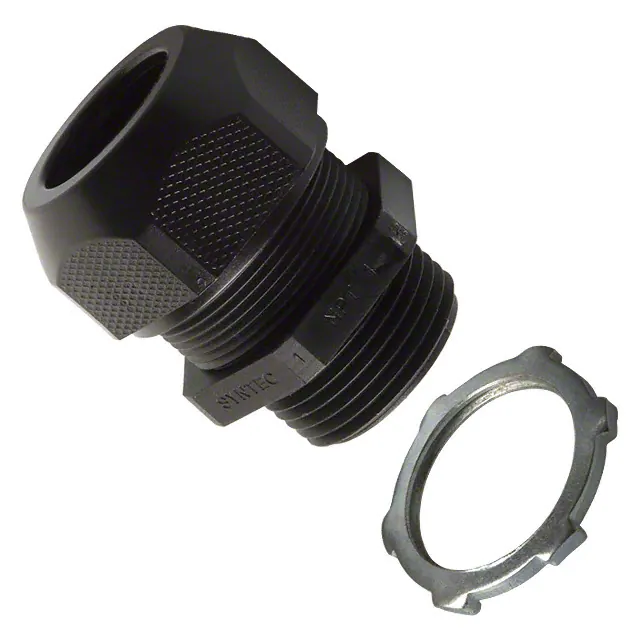

A1545.N1000.22CABLE GLAND 17-22MM 1" NPT |
3,973 |
|
Datasheet | Cable Gland | 0.669" (17.00mm) | 0.866" (22.00mm) | 1" NPT | 0.591" (15.00mm) | - | - | Polyamide (PA), Nylon | Sealing Ring | Black | IP54/IP68 - Dust Protected, Dust Tight, Waterproof, Water Resistant | -30°C ~ 100°C | |
|
A1555.N1000.22CABLE GLAND 17-22MM 1" NPT |
3,576 |
|
Datasheet | Cable Gland | 0.669" (17.00mm) | 0.866" (22.00mm) | 1" NPT | 0.591" (15.00mm) | - | - | Polyamide (PA), Nylon | Sealing Ring | Light Gray | IP54/IP68 - Dust Protected, Dust Tight, Waterproof, Water Resistant | -30°C ~ 100°C | |
|

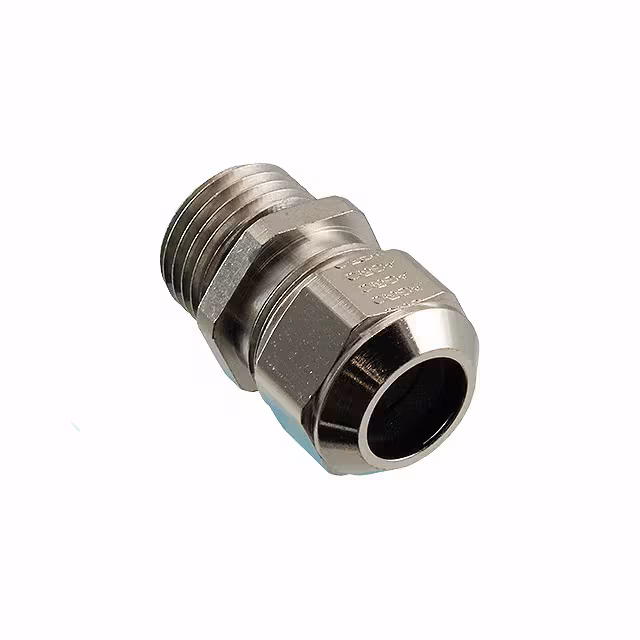

A1100.17.105CABLE GLAND 8-10.5MM M16 BRASS |
3,569 |
|
Datasheet | Cable Gland | 0.315" (8.00mm) | 0.413" (10.50mm) | M16x1.5 | 0.394" (10.00mm) | - | 0.630" (16.0mm) | Brass, Nickel Plated | O-Ring, Seal, Strain Relief | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|

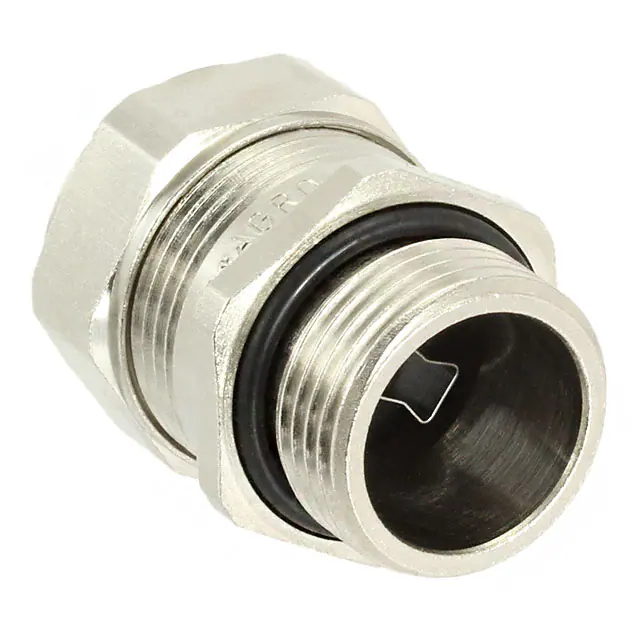

A1183.20CABLE GLAND 8-15MM M20 BRASS |
2,795 |
|
Datasheet | Cable Gland, Long Entry | 0.315" (8.00mm) | 0.591" (15.00mm) | M20x1.5 | 0.394" (10.00mm) | - | 0.787" (20.0mm) | Brass, Nickel Plated | Contact Spring, O-Ring, Seal, Strain Relief | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - | |
|
A1183.25CABLE GLND 12.5-20.5MM M25 BRASS |
4,211 |
|
Datasheet | Cable Gland, Long Entry | 0.492" (12.50mm) | 0.807" (20.50mm) | M25x1.5 | 0.433" (11.00mm) | - | 0.984" (25.0mm) | Brass, Nickel Plated | Contact Spring, O-Ring, Seal, Strain Relief | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -60°C ~ 100°C | |
|

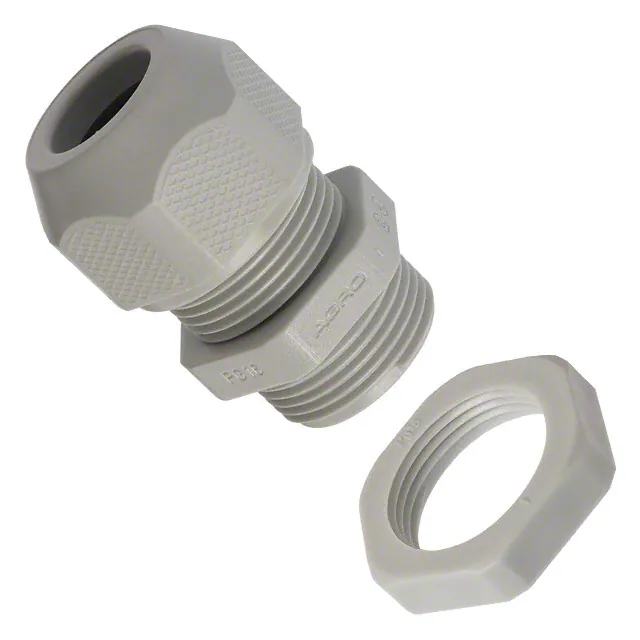

A1555.16.14CABLE GLAND 8.5-14MM PG16 |
4,602 |
|
Datasheet | Cable Gland | 0.335" (8.50mm) | 0.551" (14.00mm) | PG16 | 0.394" (10.00mm) | - | 0.886" (22.5mm) | Polyamide (PA), Nylon | Sealing Ring | Light Gray | IP68 - Dust Tight, Waterproof | -30°C ~ 100°C | |
|

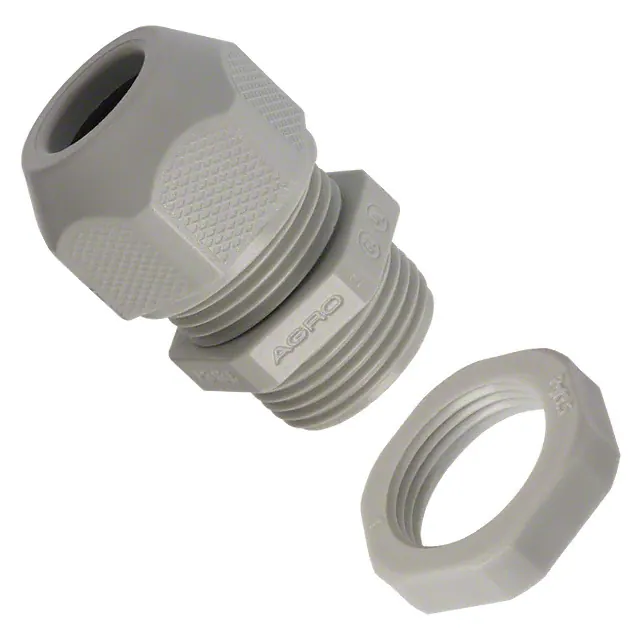

A1555.13.12CABLE GLAND 5.5-12MM PG13 |
3,610 |
|
Datasheet | Cable Gland | 0.217" (5.50mm) | 0.472" (12.00mm) | PG13 | 0.354" (9.00mm) | - | - | Polyamide (PA), Nylon | Sealing Ring | Light Gray | IP68 - Dust Tight, Waterproof | -30°C ~ 100°C | |
|
A1555.21.14CABLE GLAND 6.5-14MM PG21 |
4,798 |
|
Datasheet | Cable Gland | 0.256" (6.50mm) | 0.551" (14.00mm) | PG21 | 0.433" (11.00mm) | - | 1.114" (28.3mm) | Polyamide (PA), Nylon | Sealing Ring | Light Gray | IP68 - Dust Tight, Waterproof | -30°C ~ 100°C | |
|

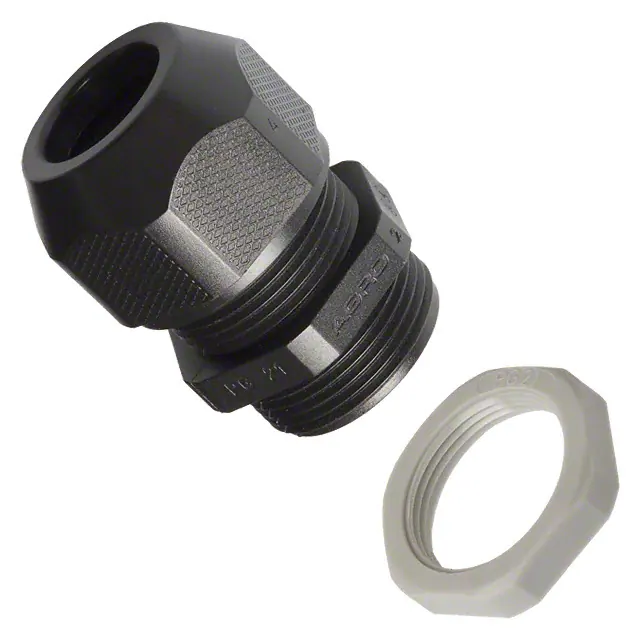

A1545.21.18CABLE GLAND 11-18.01MM PG21 |
4,050 |
|
Datasheet | Cable Gland | 0.433" (11.00mm) | 0.709" (18.01mm) | PG21 | 0.433" (11.00mm) | - | 1.114" (28.3mm) | Polyamide (PA), Nylon | Sealing Ring | Black | IP68 - Dust Tight, Waterproof | -30°C ~ 100°C | |
|
|
A1545.21.14CABLE GLAND 6.5-14MM PG21 |
1,039 |
|
Datasheet | Cable Gland | 0.256" (6.50mm) | 0.551" (14.00mm) | PG21 | 0.433" (11.00mm) | - | 1.114" (28.3mm) | Polyamide (PA), Nylon | Sealing Ring | Black | IP68 - Dust Tight, Waterproof | -30°C ~ 100°C |
