Cable and Cord Grips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Type | Outside Cable Diameter (Min) | Outside Cable Diameter (Max) | Thread Size | Thread Length | Conduit Hub Size | Panel Hole Size | Material | Includes | Color | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A1100.20.150CABLE GLAND 11-15MM M20 BRASS |
3,206 |
|
Datasheet | Cable Gland | 0.433" (11.00mm) | 0.591" (15.00mm) | M20x1.5 | 0.394" (10.00mm) | - | 0.787" (20.0mm) | Brass, Nickel Plated | O-Ring, Seal, Strain Relief | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
|
A1100.16.080CABLE GLAND 6-8MM PG16 BRASS |
4,240 |
|
Datasheet | Cable Gland | 0.236" (6.00mm) | 0.315" (8.00mm) | PG16 | 0.394" (10.00mm) | - | 0.886" (22.5mm) | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
|
A1100.16.110CABLE GLAND 8-11MM PG16 BRASS |
4,173 |
|
Datasheet | Cable Gland | 0.315" (8.00mm) | 0.433" (11.00mm) | PG16 | 0.394" (10.00mm) | - | 0.886" (22.5mm) | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|

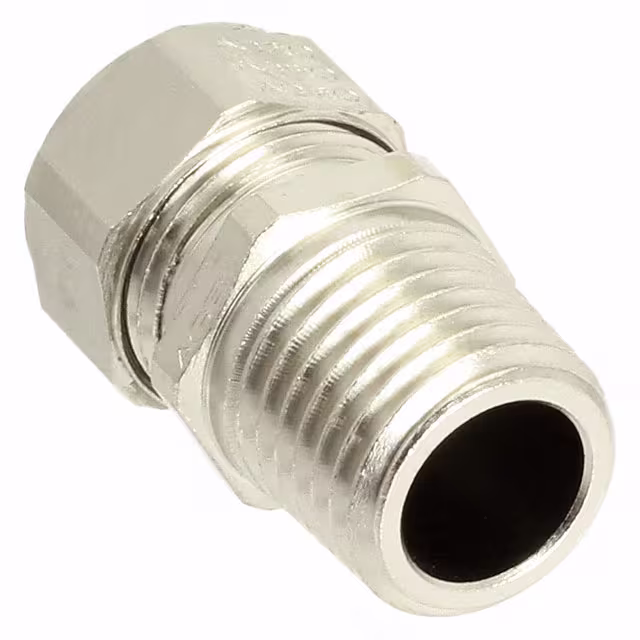

A1000.1/4NPT.065CABLE GLAND 5-6.5MM 1/4" NPT |
3,436 |
|
Datasheet | Cable Gland | 0.197" (5.00mm) | 0.256" (6.50mm) | 1/4" NPT | 0.472" (12.00mm) | - | - | Brass, Nickel Plated | Seal | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
A1000.3/8NPT.045CABLE GLAND 3.5-4.5MM 3/8" NPT |
1,337 |
|
Datasheet | Cable Gland | 0.138" (3.50mm) | 0.177" (4.50mm) | 3/8" NPT | 0.472" (12.00mm) | - | - | Brass, Nickel Plated | Seal | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
A1000.3/8NPT.060CABLE GLAND 4.5-6MM 3/8" NPT |
4,496 |
|
Datasheet | Cable Gland | 0.177" (4.50mm) | 0.236" (6.00mm) | 3/8" NPT | 0.472" (12.00mm) | - | - | Brass, Nickel Plated | Seal | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|

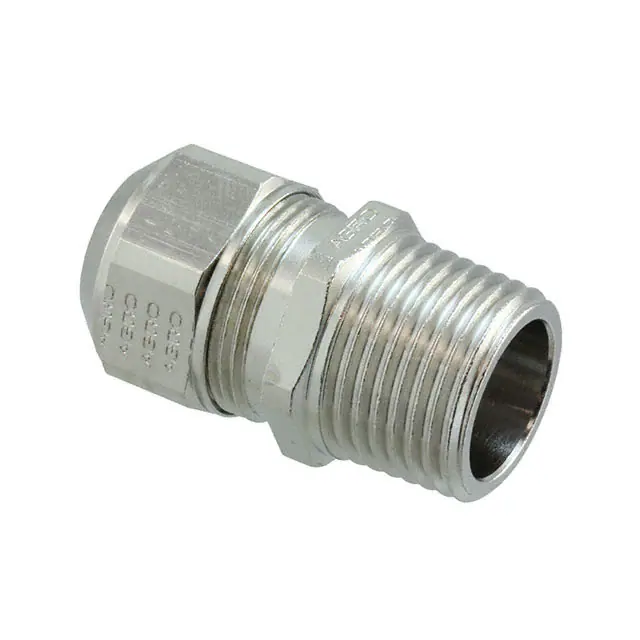

A1000.3/8NPT.105CABLE GLAND 8-10.5MM 3/8" NPT |
1,467 |
|
Datasheet | Cable Gland | 0.315" (8.00mm) | 0.413" (10.50mm) | 3/8" NPT | 0.472" (12.00mm) | - | - | Brass, Nickel Plated | Seal | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
A1183.12.050CABLE GLAND 3.5-5MM M12 BRASS |
4,856 |
|
Datasheet | Cable Gland, Long Entry | 0.138" (3.50mm) | 0.197" (5.00mm) | M12x1.5 | 0.394" (10.00mm) | - | 0.472" (12.0mm) | Brass, Nickel Plated | Contact Spring, O-Ring, Seal, Strain Relief | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -60°C ~ 100°C | |
|
A1183.12.065CABLE GLAND 5-6.5MM M12 BRASS |
3,710 |
|
Datasheet | Cable Gland, Long Entry | 0.197" (5.00mm) | 0.256" (6.50mm) | M12x1.5 | 0.394" (10.00mm) | - | 0.472" (12.0mm) | Brass, Nickel Plated | Contact Spring, O-Ring, Seal, Strain Relief | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -60°C ~ 100°C | |
|

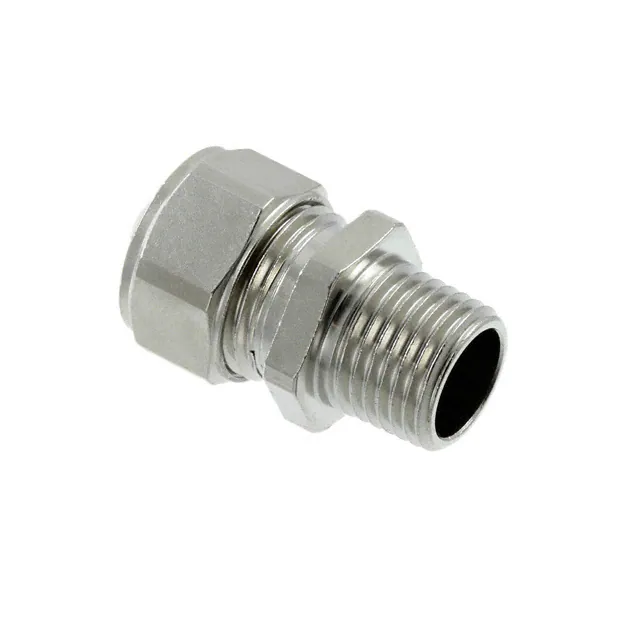

A1000.1/8NPT.040CABLE GLAND 3-4MM 1/8" NPT BRASS |
2,175 |
|
Datasheet | Cable Gland | 0.118" (3.00mm) | 0.157" (4.00mm) | 1/8" NPT | 0.315" (8.00mm) | - | - | Brass, Nickel Plated | Seal | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C |
