Cable and Cord Grips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Type | Outside Cable Diameter (Min) | Outside Cable Diameter (Max) | Thread Size | Thread Length | Conduit Hub Size | Panel Hole Size | Material | Includes | Color | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A1100.06.025CABLE GLAND 2-2.5MM M6 BRASS |
2,141 |
|
Datasheet | Cable Gland | 0.079" (2.00mm) | 0.098" (2.50mm) | M06x1 | 0.315" (8.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal, Strain Relief | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
A1555.29.25CABLE GLAND 17-25MM PG29 |
983 |
|
Datasheet | Cable Gland | 0.669" (17.00mm) | 0.984" (25.00mm) | PG29 | 0.433" (11.00mm) | - | 1.457" (37.0mm) | Polyamide (PA), Nylon | Sealing Ring | Light Gray | IP68 - Dust Tight, Waterproof | -30°C ~ 100°C | |
|
A1100.08.050CABLE GLAND 3.5-5MM M8 BRASS |
222 |
|
Datasheet | Cable Gland | 0.138" (3.50mm) | 0.197" (5.00mm) | M8x1.25 | 0.394" (10.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal, Strain Relief | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
A1100.12.050CABLE GLAND 3.5-5MM M12 BRASS |
156 |
|
Datasheet | Cable Gland | 0.138" (3.50mm) | 0.197" (5.00mm) | M12x1.5 | 0.394" (10.00mm) | - | 0.472" (12.0mm) | Brass, Nickel Plated | O-Ring, Seal, Strain Relief | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
A1000.1/8NPT.060CABLE GLAND 4-6MM 1/8" NPT BRASS |
117 |
|
Datasheet | Cable Gland | 0.157" (4.00mm) | 0.236" (6.00mm) | 1/8" NPT | 0.315" (8.00mm) | - | - | Brass, Nickel Plated | Seal | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
A1555.16.11CABLE GLAND 5-11MM PG16 POLYAMID |
289 |
|
Datasheet | Cable Gland | 0.197" (5.00mm) | 0.433" (11.00mm) | PG16 | 0.394" (10.00mm) | - | 0.886" (22.5mm) | Polyamide (PA), Nylon | Sealing Ring | Light Gray | IP68 - Dust Tight, Waterproof | -30°C ~ 100°C | |
|
A1555.21.18CABLE GLAND 11-18.01MM PG21 |
106 |
|
Datasheet | Cable Gland | 0.433" (11.00mm) | 0.709" (18.01mm) | PG21 | 0.433" (11.00mm) | - | 1.114" (28.3mm) | Polyamide (PA), Nylon | Sealing Ring | Light Gray | IP68 - Dust Tight, Waterproof | -30°C ~ 100°C | |
|

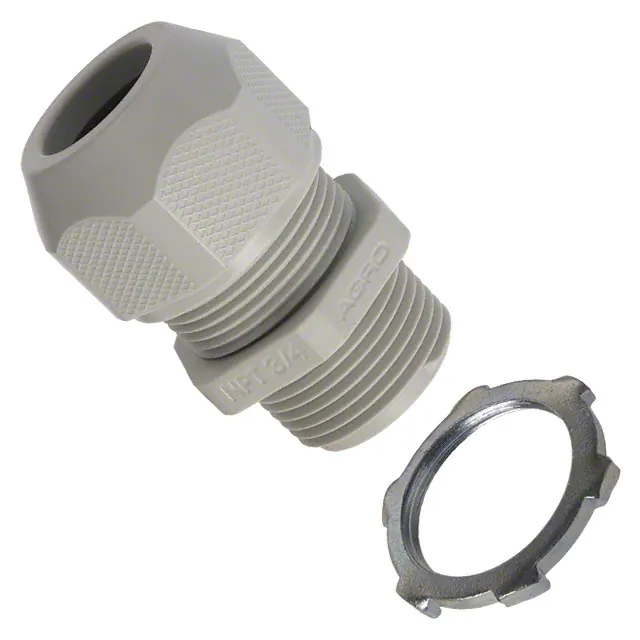

A1555.N0750.18CABLE GLAND 11-18.01MM 3/4" NPT |
3,996 |
|
Datasheet | Cable Gland | 0.433" (11.00mm) | 0.709" (18.01mm) | 3/4" NPT | 0.591" (15.00mm) | - | - | Polyamide (PA), Nylon | Sealing Ring | Light Gray | IP54/IP68 - Dust Protected, Dust Tight, Waterproof, Water Resistant | -30°C ~ 100°C | |
|
A1100.06.030CABLE GLAND 2.5-3MM M6 BRASS |
1,941 |
|
Datasheet | Cable Gland | 0.098" (2.50mm) | 0.118" (3.00mm) | M06x1 | 0.315" (8.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal, Strain Relief | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|

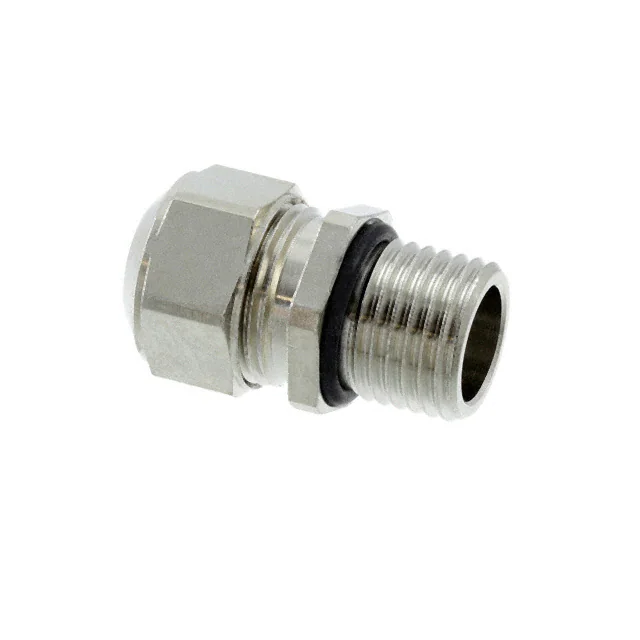

A1100.07.080CABLE GLAND 6.5-8MM PG7 BRASS |
1,652 |
|
Datasheet | Cable Gland | 0.256" (6.50mm) | 0.315" (8.00mm) | PG7 | 0.394" (10.00mm) | - | 0.492" (12.5mm) | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C |
