Cable and Cord Grips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Type | Outside Cable Diameter (Min) | Outside Cable Diameter (Max) | Thread Size | Thread Length | Conduit Hub Size | Panel Hole Size | Material | Includes | Color | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A1100.08.035CABLE GLAND 2.5-3.5MM M8 BRASS |
1,996 |
|
Datasheet | Cable Gland | 0.098" (2.50mm) | 0.138" (3.50mm) | M8x1.25 | 0.394" (10.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal, Strain Relief | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|

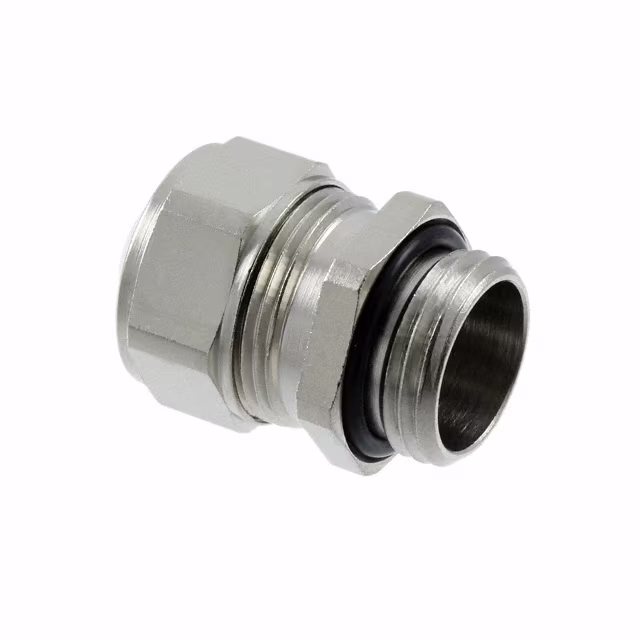

A1100.09.045CABLE GLAND 3.5-4.5MM PG9 BRASS |
1,730 |
|
Datasheet | Cable Gland | 0.138" (3.50mm) | 0.177" (4.50mm) | PG9 | 0.394" (10.00mm) | - | 0.598" (15.2mm) | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
A1100.07.065CABLE GLAND 5-6.5MM PG7 BRASS |
1,220 |
|
Datasheet | Cable Gland | 0.197" (5.00mm) | 0.256" (6.50mm) | PG7 | 0.394" (10.00mm) | - | 0.492" (12.5mm) | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
A1100.11.120CABLE GLAND 8.5-12MM PG11 BRASS |
1,512 |
|
Datasheet | Cable Gland | 0.335" (8.50mm) | 0.472" (12.00mm) | PG11 | 0.394" (10.00mm) | - | 0.732" (18.6mm) | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
A1100.13.150CABLE GLAND 11-15MM PG13 BRASS |
4,142 |
|
Datasheet | Cable Gland | 0.433" (11.00mm) | 0.591" (15.00mm) | PG13 | 0.394" (10.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|

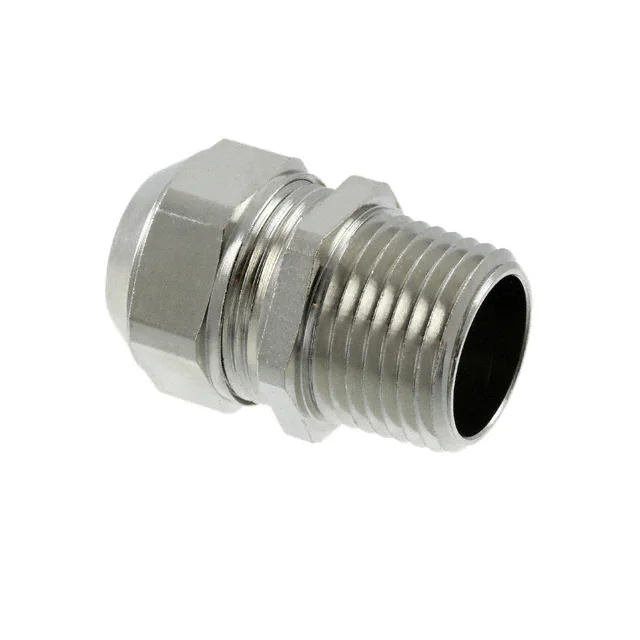

A1000.1/2NPT.150CABLE GLAND 11-15MM 1/2" NPT |
2,345 |
|
Datasheet | Cable Gland | 0.433" (11.00mm) | 0.591" (15.00mm) | 1/2" NPT | 0.591" (15.00mm) | - | - | Brass, Nickel Plated | Seal | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
A1000.1/4NPT.080CABLE GLAND 6.5-8MM 1/4" NPT |
3,709 |
|
Datasheet | Cable Gland | 0.256" (6.50mm) | 0.315" (8.00mm) | 1/4" NPT | 0.472" (12.00mm) | - | - | Brass, Nickel Plated | Seal | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
A1183.17CABLE GLAND 6-10.5MM M16 BRASS |
3,106 |
|
Datasheet | Cable Gland, Long Entry | 0.236" (6.00mm) | 0.413" (10.50mm) | M16x1.5 | 0.394" (10.00mm) | - | 0.630" (16.0mm) | Brass, Nickel Plated | Contact Spring, O-Ring, Seal, Strain Relief | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -60°C ~ 100°C | |
|
A1555.36.33CABLE GLAND 22-33MM PG36 |
4,636 |
|
Datasheet | Cable Gland | 0.866" (22.00mm) | 1.299" (33.00mm) | PG36 | 0.591" (15.00mm) | - | 1.850" (47.0mm) | Polyamide (PA), Nylon | Sealing Ring | Light Gray | IP68 - Dust Tight, Waterproof | -30°C ~ 100°C | |
|
A1183.32CABLE GLAND 17-25.5MM M32 BRASS |
3,966 |
|
Datasheet | Cable Gland, Long Entry | 0.669" (17.00mm) | 1.004" (25.50mm) | M32x1.5 | 0.512" (13.00mm) | - | 1.260" (32.0mm) | Brass, Nickel Plated | Contact Spring, O-Ring, Seal, Strain Relief | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -60°C ~ 100°C |
