Time Delay Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Relay Type | Function | Circuit | Delay Time | Contact Rating @ Voltage | Voltage - Supply | Termination Style | Timing Adjustment Method | Timing Initiate Method | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TDIH24ALRELAY TIME DEL 10230SEC 10A 120V |
4,528 |
|
Datasheet | TDIH | Bulk | Active | Socketable | Mechanical Relay | Interval | DPDT (2 Form C) | 10 Sec ~ 10230 Sec | 10A @ 120/240VAC | 24VAC | Plug In, 8 Pin (Octal) | DIP Switches | Input Voltage | - | - |
|
|
TDIL120ALRELAY TIME DEL 102.3SEC 10A 120V |
1,310 |
|
Datasheet | TDIL | Bulk | Active | Socketable | Mechanical Relay | Interval | DPDT (2 Form C) | 0.1 Sec ~ 102.3 Sec | 10A @ 120/240VAC | 120VAC | Plug In, 8 Pin (Octal) | DIP Switches | Input Voltage | - | - |
|
|
TDIL24DLRELAY TIME DEL 102.3SEC 10A 120V |
3,967 |
|
Datasheet | TDI | Bulk | Active | Socketable | Mechanical Relay | Interval | DPDT (2 Form C) | 0.1 Sec ~ 102.3 Sec | 10A @ 120/240VAC | 24VDC | Plug In, 8 Pin (Octal) | DIP Switches | Input Voltage | - | - |
|
ASTUD3RELAY TIME DELAY 100MIN DIN RAIL |
1,629 |
|
Datasheet | ASTU | Bulk | Active | DIN Rail | Solid State Relay | Programmable (Multi-Function) | SPST-NO (1 Form A) | 0.1 Sec ~ 100 Min | - | 9 ~ 110VDC | Screw Terminal | Screwdriver Slot | Input Voltage | - | - |
|

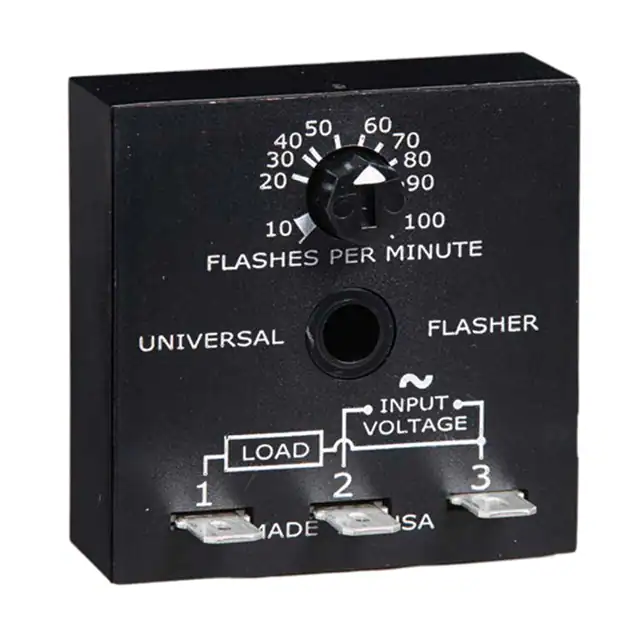

FSU1005RELAY TIME DELAY 100FPM CHAS MT |
3,394 |
|
Datasheet | FSU1000 | Bulk | Active | Chassis Mount | Solid State Relay | Repeat Cycle | SPST-NO (1 Form A) | 10 FPM ~ 100 FPM | - | 24 ~ 240VAC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage, Trigger Signal | - | - |
|

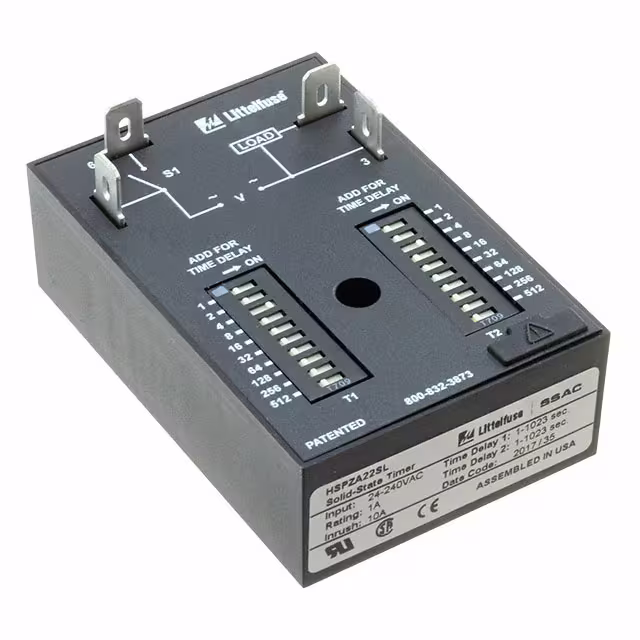

HSPZA22SLRELAY TIME DELAY CHAS MT |
4,450 |
|
Datasheet | HSPZA | Bulk | Active | Chassis Mount | Solid State Relay | One Shot | SPST-NO (1 Form A) | - | - | 24 ~ 240VAC | Quick Connect - 0.250" (6.3mm) | DIP Switches | Input Voltage, Trigger Signal | - | - |
|
|
ASTUA3RELAY TIME DELAY 100MIN DIN RAIL |
4,600 |
|
Datasheet | ASTU | Bulk | Active | DIN Rail | Solid State Relay | Programmable (Multi-Function) | SPST-NO (1 Form A) | 0.1 Sec ~ 100 Min | - | 24 ~ 240VAC | Screw Terminal | Screwdriver Slot | Input Voltage | - | - |
|

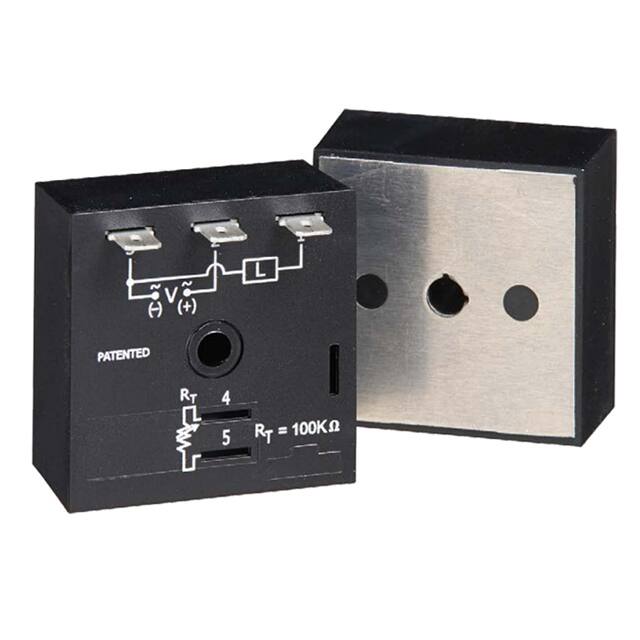

TH1C621RELAY TIME DELAY 3SEC CHAS MT |
3,303 |
|
Datasheet | TH1 | Bulk | Active | Chassis Mount | Solid State Relay | On-Delay | SPST-NO (1 Form A) | 0.1 Sec ~ 3 Sec | - | 230VAC | Quick Connect - 0.250" (6.3mm) | External Resistor | Input Voltage | - | - |
|
TRDU12D1RELAY TIME DELAY 1705HR 10A 120V |
1,327 |
|
Datasheet | TRDU | Bulk | Active | Socketable | Mechanical Relay | Programmable (Multi-Function) | DPDT (2 Form C) | 0.1 Sec ~ 1705 Hrs | 10A @ 120/240VAC | 12VDC | Plug In, 8 Pin (Octal) | DIP Switches | Input Voltage, Trigger Signal | - | - |
|
|
TRDU230A2RELAY TIME DELAY 1705HR 10A 120V |
1,698 |
|
Datasheet | TRDU | Bulk | Active | Socketable | Mechanical Relay | Programmable (Multi-Function) | SPDT (1 Form C) | 0.1 Sec ~ 1705 Hrs | 10A @ 120/240VAC | 230VAC | Plug In, 8 Pin (Octal) | DIP Switches | Input Voltage, Trigger Signal | - | - |
