Time Delay Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Relay Type | Function | Circuit | Delay Time | Contact Rating @ Voltage | Voltage - Supply | Termination Style | Timing Adjustment Method | Timing Initiate Method | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TDMB411RELAY TIME DEL 102.3SEC 10A 120V |
2,061 |
|
Datasheet | TDMB | Bulk | Active | Socketable | Mechanical Relay | Off-Delay, On-Delay | SPDT (1 Form C) | 0.1 Sec ~ 102.3 Sec | 10A @ 120/240VAC | 120VAC | Plug In, 8 Pin (Octal) | DIP Switches | Input Voltage, Trigger Signal | - | - |
|
|
TDMB422DRELAY TIME DEL 1023SEC 10A 120V |
1,342 |
|
Datasheet | TDMB | Bulk | Active | Socketable | Mechanical Relay | Off-Delay, On-Delay | DPDT (2 Form C) | 1 Sec ~ 1023 Sec | 10A @ 120/240VAC | 120VAC | Plug In, 11 Pin (Octal) | DIP Switches | Input Voltage, Trigger Signal | - | - |
|
TDBH120ALDRELAY TIME DEL 10230SEC 10A 120V |
2,539 |
|
Datasheet | TDBH | Bulk | Active | Socketable | Mechanical Relay | Off-Delay | DPDT (2 Form C) | 10 Sec ~ 10230 Sec | 10A @ 120/240VAC | 120VAC | Plug In, 11 Pin (Octal) | DIP Switches | Input Voltage, Trigger Signal | - | - |
|
RS6A13RELAY TIME DELAY ON/OFF RECYCLNG |
4,900 |
|
Datasheet | RS | Bulk | Active | Chassis Mount | Solid State Relay | Repeat Cycle | SPST-NO (1 Form A) | 0.1 Sec ~ 102.3 Sec | - | 230VAC | Quick Connect - 0.250" (6.3mm) | DIP Switches | Input Voltage | - | - |
|
FS155-30RFRELAY TIME DELAY 30FPM CHAS MT |
4,362 |
|
Datasheet | FS | Bulk | Active | Chassis Mount | Solid State Relay | Repeat Cycle | SPST-NO (1 Form A) | Fixed, 30 FPM | - | 120VAC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage | - | - |
|
|
FS165-30TRELAY TIME DELAY 30FPM CHAS MT |
3,957 |
|
Datasheet | FS | Bulk | Active | Chassis Mount | Solid State Relay | Repeat Cycle | SPST-NO (1 Form A) | Fixed, 30 FPM | - | 230VAC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage | - | - |
|
FA155-2RELAY TIME DELAY CHAS MT |
1,700 |
|
Datasheet | FA | Bulk | Active | Chassis Mount | Solid State Relay | Repeat Cycle | SPST-NO (1 Form A) | - | - | 120VAC | Quick Connect - 0.250" (6.3mm) | - | Input Voltage | - | - |
|

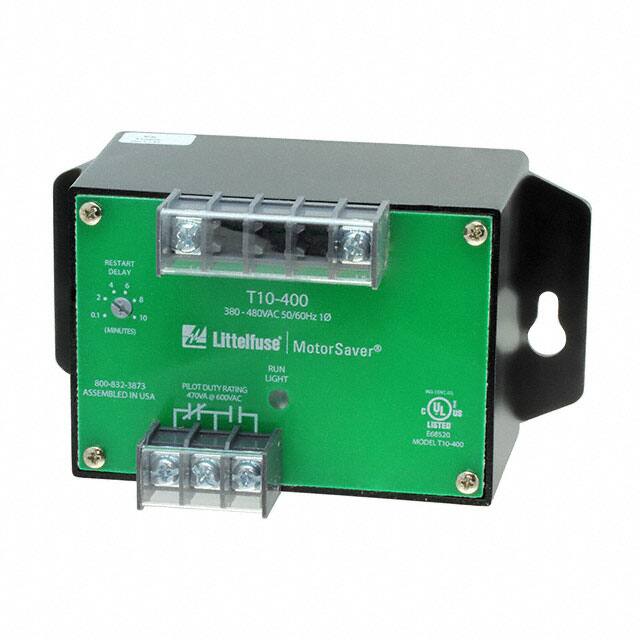

T10400RELAY TIME DELAY 10MIN CHAS MT |
3,380 |
|
Datasheet | T10 | Bulk | Active | Chassis Mount | Solid State Relay | On-Delay | SPDT (1 Form C) | 0.1 Min ~ 10 Min | - | 460VAC | Screw Terminal | Screwdriver Slot | Input Voltage | - | - |
|
T10120RELAY TIME DELAY 10MIN CHAS MT |
2,905 |
|
Datasheet | T10 | Bulk | Active | Chassis Mount | Solid State Relay | On-Delay | SPDT (1 Form C) | 0.1 Min ~ 10 Min | - | 115VAC | Screw Terminal | Screwdriver Slot | Input Voltage | - | - |
|
|
T10200RELAY TIME DELAY 10MIN CHAS MT |
3,386 |
|
Datasheet | T10 | Bulk | Active | Chassis Mount | Solid State Relay | On-Delay | SPDT (1 Form C) | 0.1 Min ~ 10 Min | - | 230VAC | Screw Terminal | Screwdriver Slot | Input Voltage | - | - |
