Time Delay Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Relay Type | Function | Circuit | Delay Time | Contact Rating @ Voltage | Voltage - Supply | Termination Style | Timing Adjustment Method | Timing Initiate Method | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TDS24ALRELAY TIME DEL 1023SEC 10A 120V |
1,272 |
|
Datasheet | TDS | Bulk | Active | Socketable | Mechanical Relay | One Shot | SPDT (1 Form C) | 1 Sec ~ 1023 Sec | 10A @ 120/240VAC | 24VAC | Plug In, 8 Pin (Octal) | DIP Switches | Input Voltage, Trigger Signal | - | - |
|
TDSH120ALRELAY TIME DEL 10230SEC 10A 120V |
3,880 |
|
Datasheet | TDSH | Bulk | Active | Socketable | Mechanical Relay | One Shot | SPDT (1 Form C) | 10 Sec ~ 10230 Sec | 10A @ 120/240VAC | 120VAC | Plug In, 8 Pin (Octal) | DIP Switches | Input Voltage, Trigger Signal | - | - |
|
|
TDSL120ALRELAY TIME DEL 102.3SEC 10A 120V |
2,586 |
|
Datasheet | TDSL | Bulk | Active | Socketable | Mechanical Relay | One Shot | SPDT (1 Form C) | 0.1 Sec ~ 102.3 Sec | 10A @ 120/240VAC | 120VAC | Plug In, 8 Pin (Octal) | DIP Switches | Input Voltage, Trigger Signal | - | - |
|

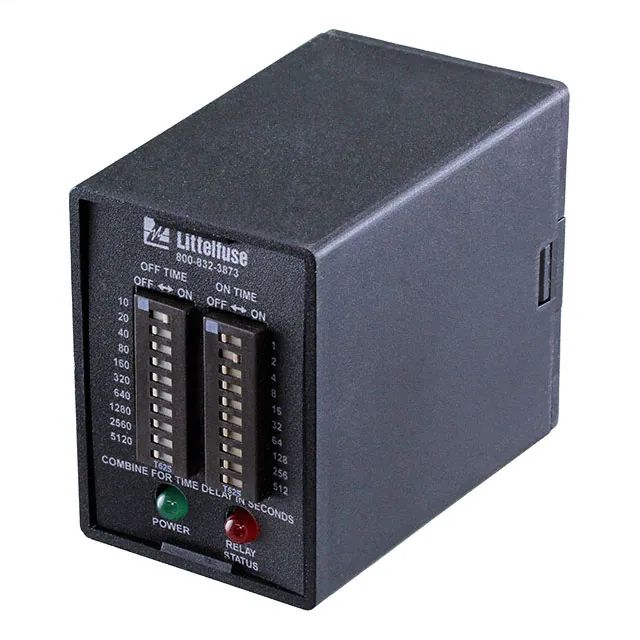

TDR4A23RELAY TIME DEL 1023SEC 10A 120V |
1,218 |
|
Datasheet | TDR | Bulk | Active | Socketable | Mechanical Relay | Repeat Cycle | DPDT (2 Form C) | 1 Sec ~ 1023 Sec | 10A @ 120/240VAC | 120VAC | Plug In, 8 Pin (Octal) | DIP Switches | Input Voltage | - | - |
|

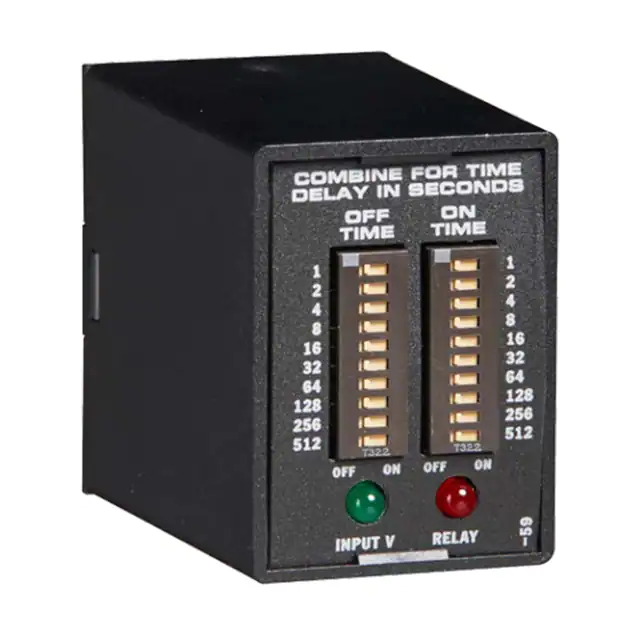

TDR1A22RELAY TIME DEL 1023SEC 10A 120V |
2,092 |
|
Datasheet | TDR | Bulk | Active | Socketable | Mechanical Relay | Repeat Cycle | DPDT (2 Form C) | 1 Sec ~ 1023 Sec | 10A @ 120/240VAC | 12VDC | Plug In, 8 Pin (Octal) | DIP Switches | Input Voltage | - | - |
|
|
TDR2A23RELAY TIME DEL 1023SEC 10A 120V |
1,807 |
|
Datasheet | TDR | Bulk | Active | Socketable | Mechanical Relay | Repeat Cycle | DPDT (2 Form C) | 1 Sec ~ 1023 Sec | 10A @ 120/240VAC | 24VAC | Plug In, 8 Pin (Octal) | DIP Switches | Input Voltage | - | - |
|
|
TDR4A13RELAY TIME DEL 102.3SEC 10A 120V |
1,761 |
|
Datasheet | TDR | Bulk | Active | Socketable | Mechanical Relay | Repeat Cycle | DPDT (2 Form C) | 0.1 Sec ~ 102.3 Sec | 10A @ 120/240VAC | 120VAC | Plug In, 8 Pin (Octal) | DIP Switches | Input Voltage | - | - |
|
|
TDR4B22RELAY TIME DEL 1023SEC 10A 120V |
2,382 |
|
Datasheet | TDR | Bulk | Active | Socketable | Mechanical Relay | Repeat Cycle | DPDT (2 Form C) | 1 Sec ~ 1023 Sec | 10A @ 120/240VAC | 120VAC | Plug In, 8 Pin (Octal) | DIP Switches | Input Voltage | - | - |
|
|
TDR4B23RELAY TIME DEL 10230SEC 10A 120V |
1,626 |
|
Datasheet | TDR | Bulk | Active | Socketable | Mechanical Relay | Repeat Cycle | DPDT (2 Form C) | 10 Sec ~ 10230 Sec | 10A @ 120/240VAC | 120VAC | Plug In, 8 Pin (Octal) | DIP Switches | Input Voltage | - | - |
|
|
TDR6A22RELAY TIME DEL 1023SEC 10A 120V |
3,988 |
|
Datasheet | TDR | Bulk | Active | Socketable | Mechanical Relay | Repeat Cycle | DPDT (2 Form C) | 1 Sec ~ 1023 Sec | 10A @ 120/240VAC | 230VAC | Plug In, 8 Pin (Octal) | DIP Switches | Input Voltage | - | - |
