Time Delay Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Relay Type | Function | Circuit | Delay Time | Contact Rating @ Voltage | Voltage - Supply | Termination Style | Timing Adjustment Method | Timing Initiate Method | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TSDS320NRELAY TIME DELAY 10SEC CHAS MT |
2,268 |
|
Datasheet | TSDS | Bulk | Active | Chassis Mount | Solid State Relay | One Shot | SPST-NO (1 Form A) | 0.1 Sec ~ 10 Sec | - | 24VDC | Quick Connect - 0.250" (6.3mm) | External Resistor | Input Voltage, Trigger Signal | - | - |
|
TSD1321RELAY TIME DELAY 100SEC CHAS MT |
4,101 |
|
Datasheet | TSD1 | Bulk | Active | Chassis Mount | Solid State Relay | On-Delay | SPST-NO (1 Form A) | 1 Sec ~ 100 Sec | - | 24VDC | Quick Connect - 0.250" (6.3mm) | External Resistor | Input Voltage | - | - |
|

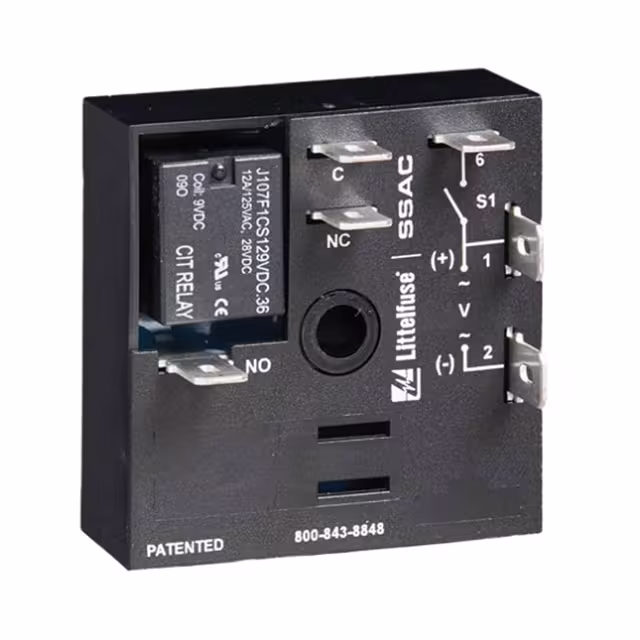

KRDB120RELAY TIME DELAY 10SEC 10A 125V |
4,704 |
|
Datasheet | KRDB | Bulk | Active | Chassis Mount | Mechanical Relay | Off-Delay | SPDT (1 Form C) | 0.1 Sec ~ 10 Sec | 10A @ 125VAC | 12VDC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage, Trigger Signal | - | - |
|

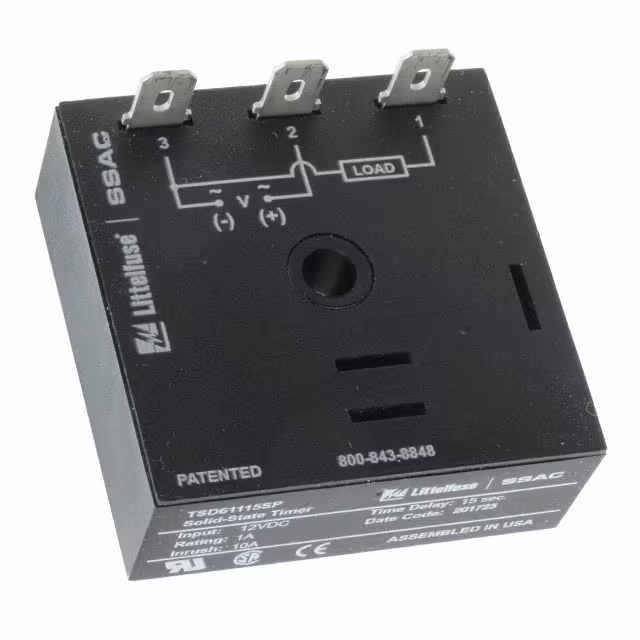

TSD61115SPRELAY TIME DELAY 15 SEC CHAS MT |
2,217 |
|
Datasheet | TSD | Bulk | Active | Chassis Mount | Solid State Relay | Interval | SPST-NO (1 Form A) | Fixed, 15 Sec | - | 12VDC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage | - | - |
|

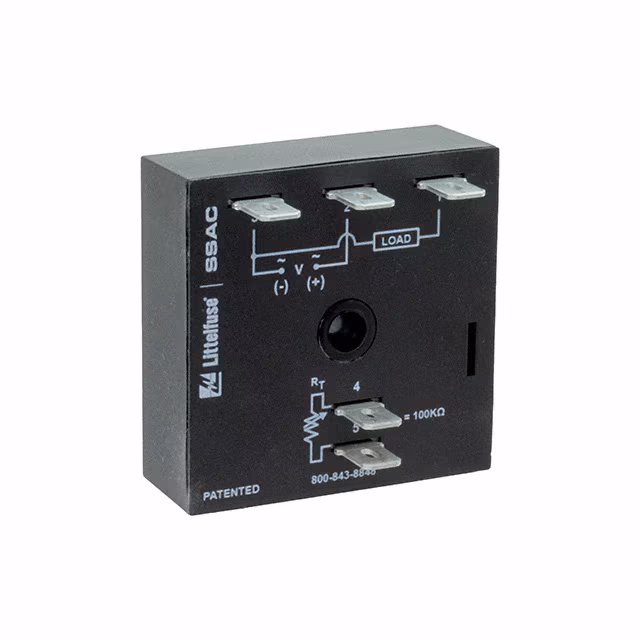

TSD6320PRELAY TIME DELAY 10SEC CHAS MT |
3,974 |
|
Datasheet | TSD | Bulk | Active | Chassis Mount | Solid State Relay | Interval | SPST-NO (1 Form A) | 0.04 Sec ~ 10 Sec | - | 24VDC | Quick Connect - 0.250" (6.3mm) | External Resistor | Input Voltage | - | - |
|

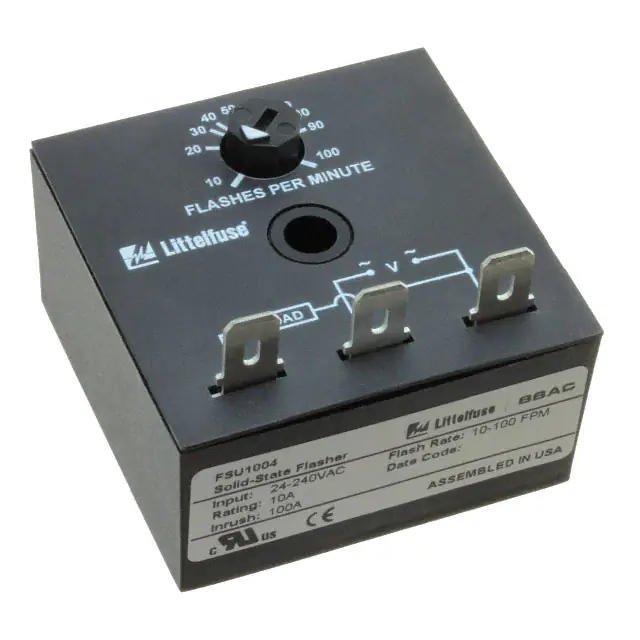

FSU1004RELAY TIME DELAY 100FPM CHAS MT |
4,217 |
|
Datasheet | FSU1000 | Bulk | Active | Chassis Mount | Solid State Relay | Repeat Cycle | SPST-NO (1 Form A) | 10 FPM ~ 100 FPM | - | 24 ~ 240VAC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage, Trigger Signal | - | - |
|

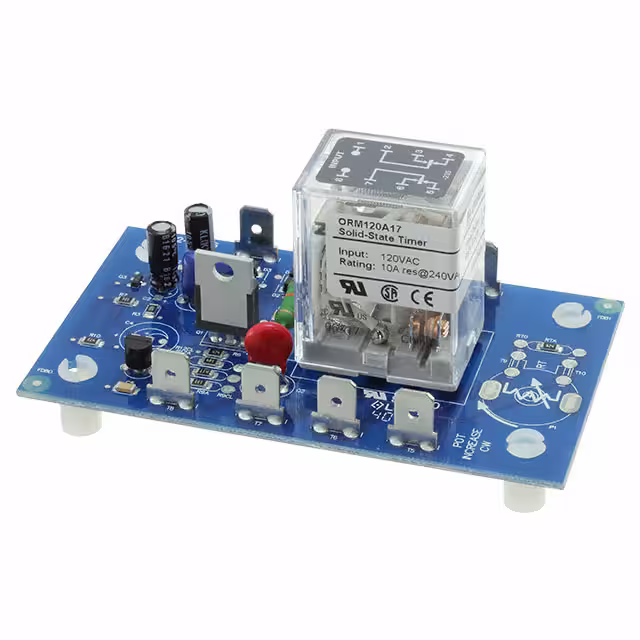

ORM120A17RELAY TIME DELAY 7SEC 10A 120V |
4,979 |
|
Datasheet | ORM | Bulk | Active | Chassis Mount | Mechanical Relay | On-Delay | DPDT (2 Form C) | Fixed, 7 Sec | 10A @ 120/240VAC | 120VAC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage | - | - |
|
HRDB121RELAY TIME DELAY 100SEC 30A 125V |
2,687 |
|
Datasheet | HRDB | Bulk | Active | Chassis Mount | Mechanical Relay | Off-Delay | SPDT (1 Form C) | 1 Sec ~ 100 Sec | 30A @ 125/240VAC | 12VDC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage, Trigger Signal | - | - |
|

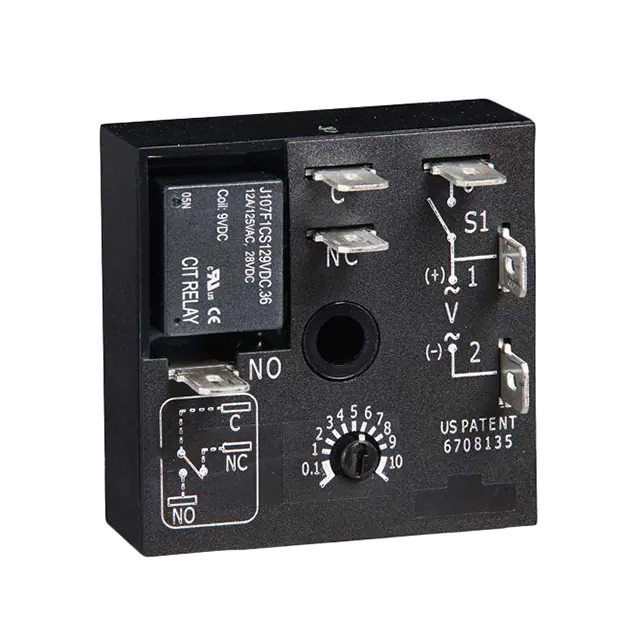

KRDS1135MRELAY TIME DELAY 35MIN 10A 125V |
1,500 |
|
Datasheet | KRDS | Bulk | Active | Chassis Mount | Mechanical Relay | One Shot | SPDT (1 Form C) | Fixed, 35 Min | 10A @ 125VAC | 12VDC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage, Trigger Signal | - | - |
|
|
KRDB421RELAY TIME DELAY 100SEC 10A 125V |
2,439 |
|
Datasheet | KRDB | Bulk | Active | Chassis Mount | Mechanical Relay | Off-Delay | SPDT (1 Form C) | 1 Sec ~ 100 Sec | 10A @ 125VAC | 120VAC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage, Trigger Signal | - | - |
