Time Delay Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Relay Type | Function | Circuit | Delay Time | Contact Rating @ Voltage | Voltage - Supply | Termination Style | Timing Adjustment Method | Timing Initiate Method | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSM30.7W6RELAY TIME DELAY 0.7 SEC CHAS MT |
4,978 |
|
Datasheet | MSM | Bulk | Obsolete | Chassis Mount | Solid State Relay | On-Delay | SPST-NO (1 Form A) | Fixed, 0.7 Sec | - | 24VDC | Wire Leads | Fixed | Input Voltage | - | - |
|
CT1S30RELAY TIME DELAY 1SEC 30SEC |
2,952 |
|
Datasheet | CT | Bulk | Active | Chassis Mount | Solid State Relay | Off-Delay, On-Delay | SPST-NO (1 Form A) | Fixed, 1 Sec, 30 Sec | - | 24VAC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage | - | - |
|
|
CT5S300RELAY TIME DELAY 300SEC CHAS MT |
3,113 |
|
Datasheet | CT | Bulk | Active | Chassis Mount | Solid State Relay | Off-Delay, On-Delay | SPST-NO (1 Form A) | Fixed, 5 Sec, 300 Sec | - | 24VAC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage | - | - |
|
MSM210P3RELAY TIME DELAY 10 SEC CHAS MT |
1,711 |
|
Datasheet | MSM | Bulk | Active | Chassis Mount | Solid State Relay | On-Delay | SPST-NO (1 Form A) | Fixed, 10 Sec | - | 24VAC | PC Pin | Fixed | Input Voltage | - | - |
|
MSM10.5W6RELAY TIME DELAY 0.5 SEC CHAS MT |
2,214 |
|
Datasheet | MSM | Bulk | Active | Chassis Mount | Solid State Relay | On-Delay | SPST-NO (1 Form A) | Fixed, 0.5 Sec | - | 12VDC | Wire Leads | Fixed | Input Voltage | - | - |
|
|
MSM25W9RELAY TIME DELAY 5SEC CHAS MT |
4,938 |
|
Datasheet | MSM | Bulk | Active | Chassis Mount | Solid State Relay | On-Delay | SPST-NO (1 Form A) | Fixed, 5 Sec | - | 24VAC | Wire Leads | Fixed | Input Voltage | - | - |
|
|
MSM420W6RELAY TIME DELAY 20 SEC CHAS MT |
1,049 |
|
Datasheet | MSM | Bulk | Active | Chassis Mount | Solid State Relay | On-Delay | SPST-NO (1 Form A) | Fixed, 20 Sec | - | 120VAC | Wire Leads | Fixed | Input Voltage | - | - |
|

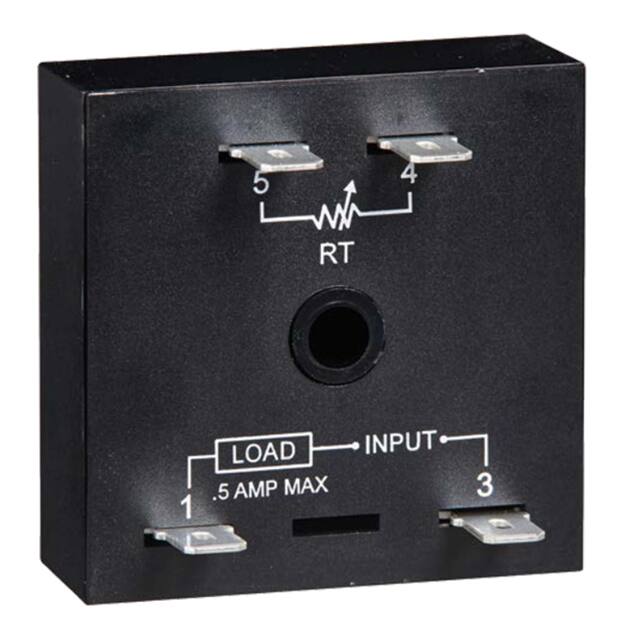

TAC14164RELAY TIME DELAY 64SEC CHAS MT |
3,333 |
|
Datasheet | TAC1 | Bulk | Obsolete | Chassis Mount | Solid State Relay | On-Delay | SPST-NO (1 Form A) | Fixed, 64 Sec | - | 120VAC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage | - | - |
|

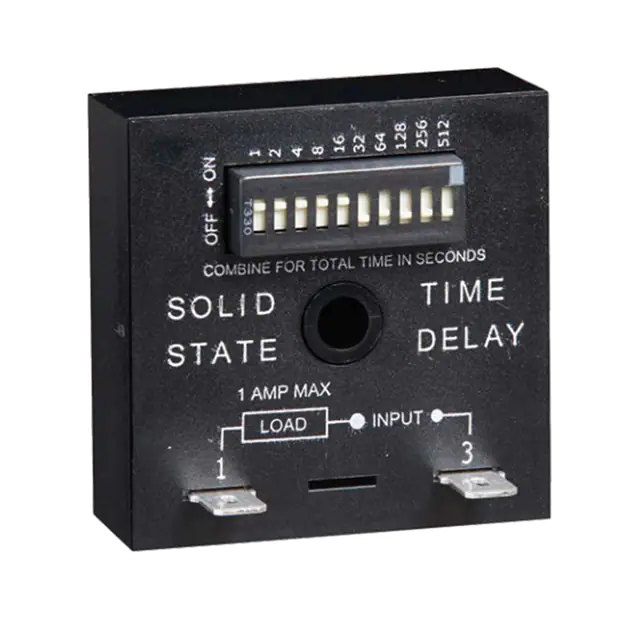

TDUH3001ARELAY TIME DELAY 10230SEC CHAS |
2,769 |
|
Datasheet | TDUH | Bulk | Active | Chassis Mount | Solid State Relay | On-Delay | SPST-NO (1 Form A) | 10 Sec ~ 10230 Sec | - | 100 ~ 240VAC/DC | Quick Connect - 0.250" (6.3mm) | DIP Switches | Input Voltage | - | - |
|

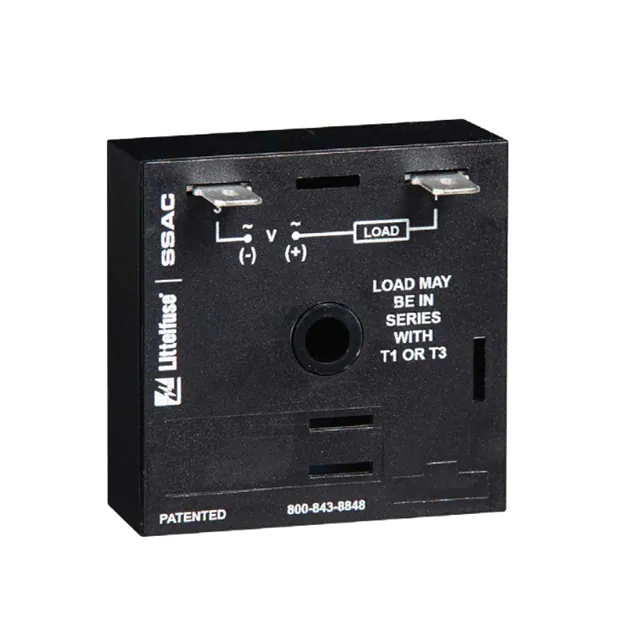

KSD1123RELAY TIME DELAY 10MIN CHAS MT |
4,051 |
|
Datasheet | KSD1 | Bulk | Active | Chassis Mount | Solid State Relay | On-Delay | SPST-NO (1 Form A) | 0.1 Min ~ 10 Min | - | 12VDC | Quick Connect - 0.250" (6.3mm) | External Resistor | Input Voltage | - | - |
