Time Delay Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Relay Type | Function | Circuit | Delay Time | Contact Rating @ Voltage | Voltage - Supply | Termination Style | Timing Adjustment Method | Timing Initiate Method | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

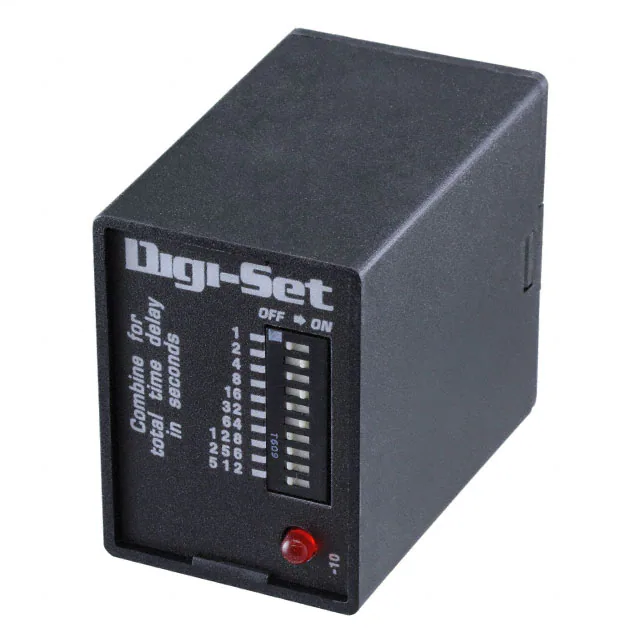

TDB120ALDRELAY TIME DEL 1023SEC 10A 120V |
3,435 |
|
Datasheet | TDB | Bulk | Active | Socketable | Mechanical Relay | Off-Delay | DPDT (2 Form C) | 1 Sec ~ 1023 Sec | 10A @ 120/240VAC | 120VAC | Plug In, 11 Pin (Octal) | DIP Switches | Input Voltage, Trigger Signal | - | - |
|

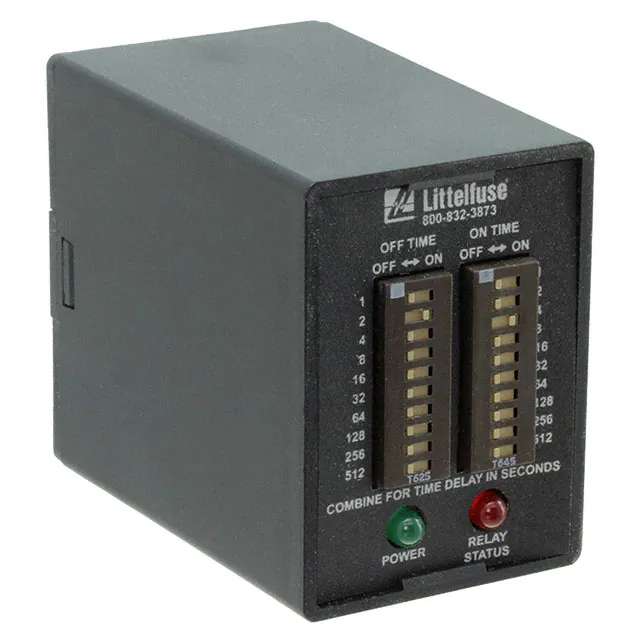

TDR4A22RELAY TIME DEL 1023SEC 10A 120V |
1,202 |
|
Datasheet | TDR | Bulk | Active | Socketable | Mechanical Relay | Repeat Cycle | DPDT (2 Form C) | 1 Sec ~ 1023 Sec | 10A @ 120/240VAC | 120VAC | Plug In, 8 Pin (Octal) | DIP Switches | Input Voltage | - | - |
|
|
TDR4A33RELAY TIME DEL 10230SEC 10A 120V |
2,705 |
|
Datasheet | TDR | Bulk | Active | Socketable | Mechanical Relay | Repeat Cycle | DPDT (2 Form C) | 10 Sec ~ 10230 Sec | 10A @ 120/240VAC | 120VAC | Plug In, 8 Pin (Octal) | DIP Switches | Input Voltage | - | - |
|
TDS230ALRELAY TIME DEL 1023SEC 10A 120V |
4,378 |
|
Datasheet | TDS | Bulk | Active | Socketable | Mechanical Relay | One Shot | SPDT (1 Form C) | 1 Sec ~ 1023 Sec | 10A @ 120/240VAC | 230VAC | Plug In, 8 Pin (Octal) | DIP Switches | Input Voltage, Trigger Signal | - | - |
|
TDR4A12RELAY TIME DEL 102.3SEC 10A 120V |
4,918 |
|
Datasheet | TDR | Bulk | Active | Socketable | Mechanical Relay | Repeat Cycle | DPDT (2 Form C) | 0.1 Sec ~ 102.3 Sec | 10A @ 120/240VAC | 120VAC | Plug In, 8 Pin (Octal) | DIP Switches | Input Voltage | - | - |
|
KRDI420RELAY TIME DELAY 10SEC 10A 125V |
1,308 |
|
Datasheet | KRDI | Bulk | Active | Chassis Mount | Mechanical Relay | Interval | SPDT (1 Form C) | 0.1 Sec ~ 10 Sec | 10A @ 125VAC | 120VAC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage | - | - |
|
HRDR331A1RELAY TIME DELAY 100SEC 30A 125V |
3,007 |
|
Datasheet | HRDR | Bulk | Active | Chassis Mount | Mechanical Relay | Repeat Cycle | SPDT (1 Form C) | 1 Sec ~ 100 Sec | 30A @ 125/240VAC | 24VDC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage, Trigger Signal | - | - |
|
FA155RELAY TIME DELAY CHAS MT |
3,795 |
|
Datasheet | FA | Bulk | Active | Chassis Mount | Solid State Relay | Repeat Cycle | SPST-NO (1 Form A) | - | - | 120VAC | Quick Connect - 0.250" (6.3mm) | - | Input Voltage | - | - |
|
FS126RC-45RELAY TIME DELAY 45FPM CHAS MT |
3,861 |
|
Datasheet | FS100 | Bulk | Active | Chassis Mount | Solid State Relay | Repeat Cycle | SPST-NO (1 Form A) | Fixed, 45 FPM | - | 120VAC | Wire Leads | Fixed | Input Voltage | - | - |
|

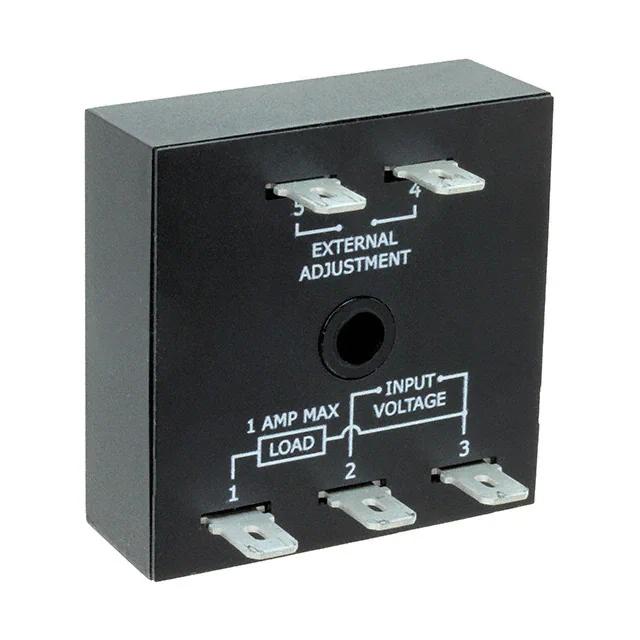

TS2223RELAY TIME DELAY 180SEC CHAS MT |
2,895 |
|
- |
TS2 | Bulk | Active | Chassis Mount | Solid State Relay | Interval | SPST-NO (1 Form A) | 2 Sec ~ 180 Sec | - | 24VAC | Quick Connect - 0.250" (6.3mm) | External Resistor | Input Voltage | - | - |
