Time Delay Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Relay Type | Function | Circuit | Delay Time | Contact Rating @ Voltage | Voltage - Supply | Termination Style | Timing Adjustment Method | Timing Initiate Method | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

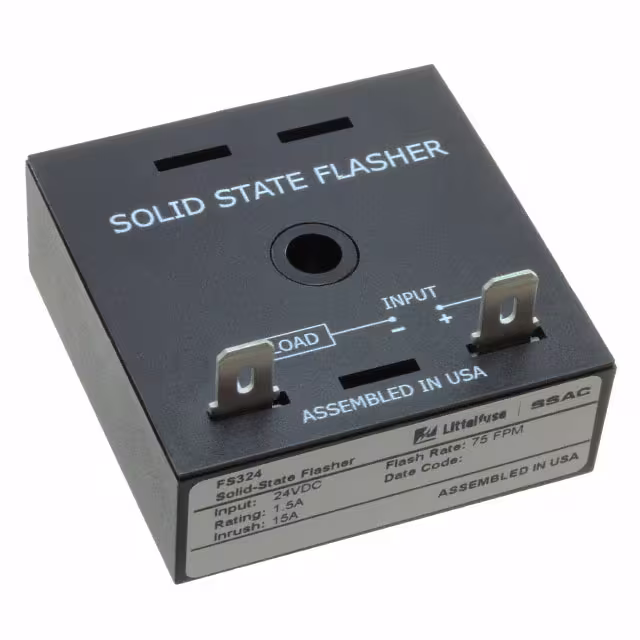

FS324RELAY TIME DELAY 75 FPM CHAS MT |
1,722 |
|
Datasheet | FS300 | Bulk | Active | Chassis Mount | Solid State Relay | Repeat Cycle | SPST-NO (1 Form A) | Fixed, 75 FPM | - | 24VDC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage | - | - |
|

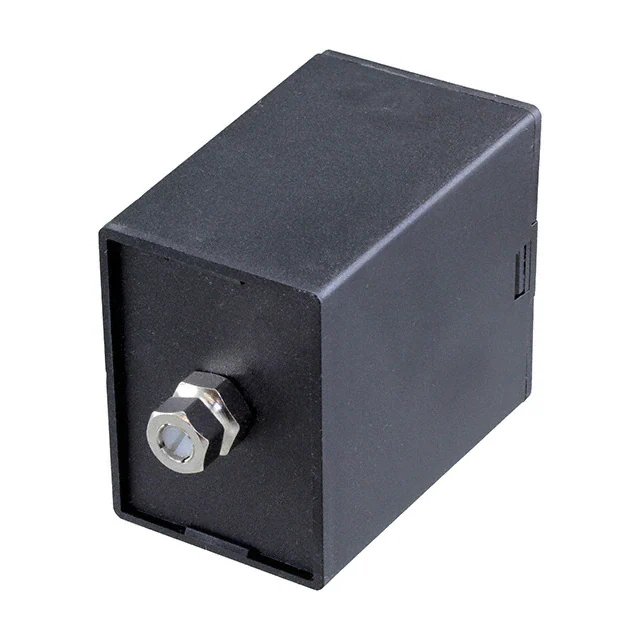

FS590RELAY TIME DELAY 100FPM 10A 120V |
3,263 |
|
Datasheet | FS500 | Bulk | Active | Socketable | Mechanical Relay | Repeat Cycle | DPDT (2 Form C) | 10 FPM ~ 100 FPM | 10A @ 120/240VAC | 120VAC/DC | Plug In, 8 Pin (Octal) | Screwdriver Slot | Input Voltage | - | - |
|

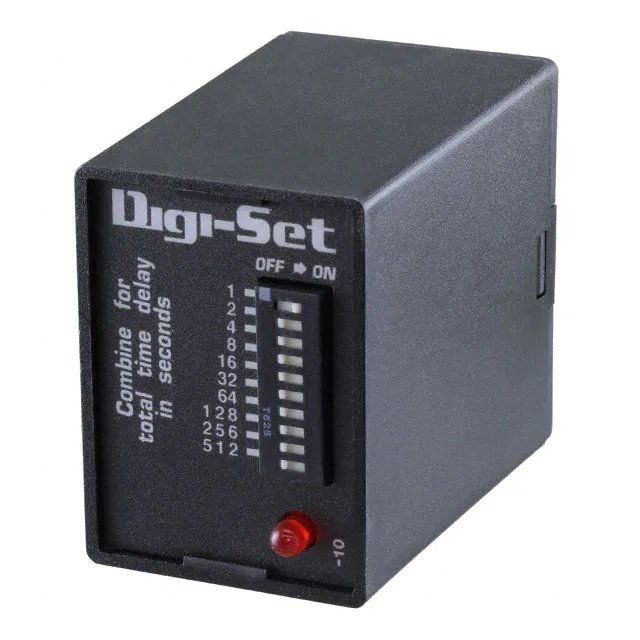

TDM12DLRELAY TIME DEL 1023SEC 10A 120V |
2,150 |
|
Datasheet | TDM | Bulk | Active | Socketable | Mechanical Relay | On-Delay | DPDT (2 Form C) | 1 Sec ~ 1023 Sec | 10A @ 120/240VAC | 12VDC | Plug In, 8 Pin (Octal) | DIP Switches | Input Voltage | - | - |
|

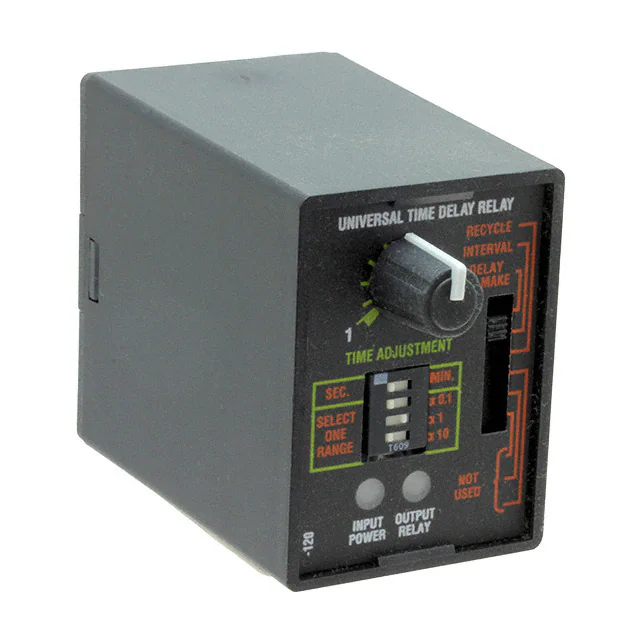

TRU1RELAY TIME DEL 1000MIN 10A 120V |
2,323 |
|
Datasheet | TRU | Bulk | Active | Socketable | Mechanical Relay | Programmable (Multi-Function) | DPDT (2 Form C) | 0.1 Sec ~ 1000 Min | 10A @ 120/240VAC | 19 ~ 264VAC, 19 ~ 30VDC | Plug In, 8 Pin (Octal) | Hand Dial | Input Voltage, Trigger Signal | - | - |
|

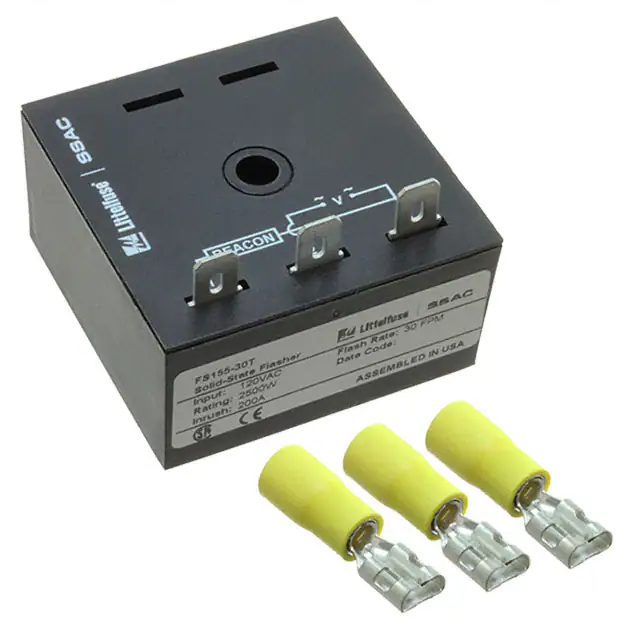

FS155-30TRELAY TIME DELAY 30FPM CHAS MT |
3,990 |
|
Datasheet | FS | Bulk | Active | Chassis Mount | Solid State Relay | Repeat Cycle | SPST-NO (1 Form A) | Fixed, 30 FPM | - | 120VAC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage | - | - |
|
MSM20.15W9RELAY TIME DELAY 0.15SEC CHASSIS |
4,937 |
|
Datasheet | MSM | Bulk | Active | Chassis Mount | Solid State Relay | On-Delay | SPST-NO (1 Form A) | Fixed, 0.15 Sec | - | 24VAC | Wire Leads | Fixed | Input Voltage | - | - |
|
TS1421RELAY TIME DELAY 3SEC CHAS MT |
1,171 |
|
Datasheet | TS1 | Bulk | Active | Chassis Mount | Solid State Relay | On-Delay | SPST-NO (1 Form A) | 0.05 Sec ~ 3 Sec | - | 120VAC | Quick Connect - 0.250" (6.3mm) | External Resistor | Input Voltage | - | - |
|
FS312RELAY TIME DELAY 75 FPM CHAS MT |
3,528 |
|
Datasheet | FS300 | Bulk | Active | Chassis Mount | Solid State Relay | Repeat Cycle | SPST-NO (1 Form A) | Fixed, 75 FPM | - | 12VDC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage | - | - |
|

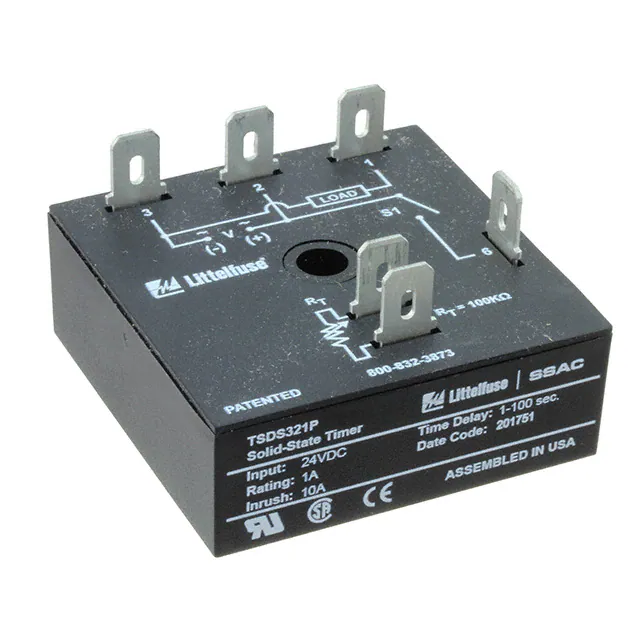

TSDS321PRELAY TIME DELAY 100SEC CHAS MT |
1,131 |
|
Datasheet | TSDS | Bulk | Active | Chassis Mount | Solid State Relay | One Shot | SPST-NO (1 Form A) | 1 Sec ~ 100 Sec | - | 24VDC | Quick Connect - 0.250" (6.3mm) | External Resistor | Input Voltage, Trigger Signal | - | - |
|
KRPSA10.1SFTRELAY TIME DELAY 0.1SEC 10A 125V |
3,346 |
|
Datasheet | KRPS | Bulk | Active | Chassis Mount | Mechanical Relay | Off-Delay, On-Delay | SPDT (1 Form C) | Fixed, 0.1 Sec | 10A @ 125VAC | 24 ~ 240VAC/DC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage, Trigger Signal | - | - |
