Time Delay Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Relay Type | Function | Circuit | Delay Time | Contact Rating @ Voltage | Voltage - Supply | Termination Style | Timing Adjustment Method | Timing Initiate Method | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

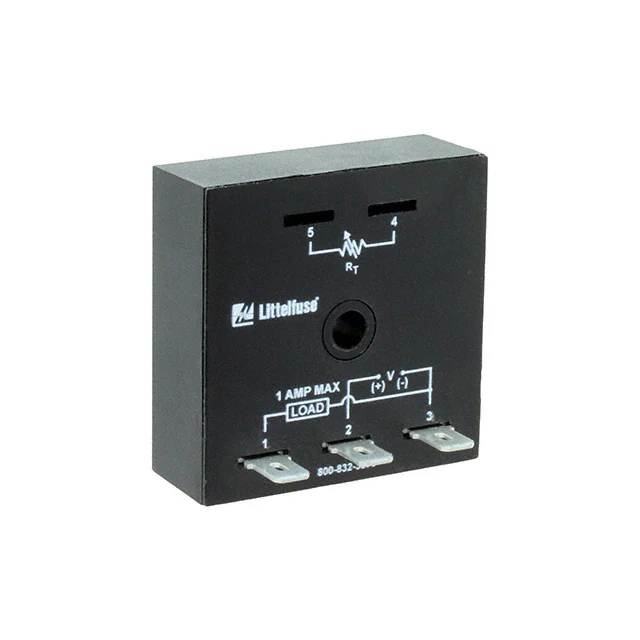

TS6116PRELAY TIME DELAY 6SEC CHAS MT |
1,722 |
|
Datasheet | TS6 | Bulk | Active | Chassis Mount | Solid State Relay | Interval | SPST-NO (1 Form A) | Fixed, 6 Sec | - | 12VDC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage | - | - |
|
KSDS1115SPRELAY TIME DELAY 15 SEC CHAS MT |
3,836 |
|
Datasheet | KSDS | Bulk | Active | Chassis Mount | Solid State Relay | One Shot | SPST-NO (1 Form A) | Fixed, 15 Sec | - | 12VDC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage, Trigger Signal | - | - |
|
KRDI120RELAY TIME DELAY 10SEC 10A 125V |
1,018 |
|
Datasheet | KRDI | Bulk | Active | Chassis Mount | Mechanical Relay | Interval | SPDT (1 Form C) | 0.1 Sec ~ 10 Sec | 10A @ 125VAC | 12VDC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage | - | - |
|
KRDM430RELAY TIME DELAY 10SEC 10A 125V |
4,579 |
|
Datasheet | KRDM | Bulk | Active | Chassis Mount | Mechanical Relay | On-Delay | SPDT (1 Form C) | 0.1 Sec ~ 10 Sec | 10A @ 125VAC | 120VAC | Quick Connect - 0.250" (6.3mm) | External Resistor | Input Voltage | - | - |
|

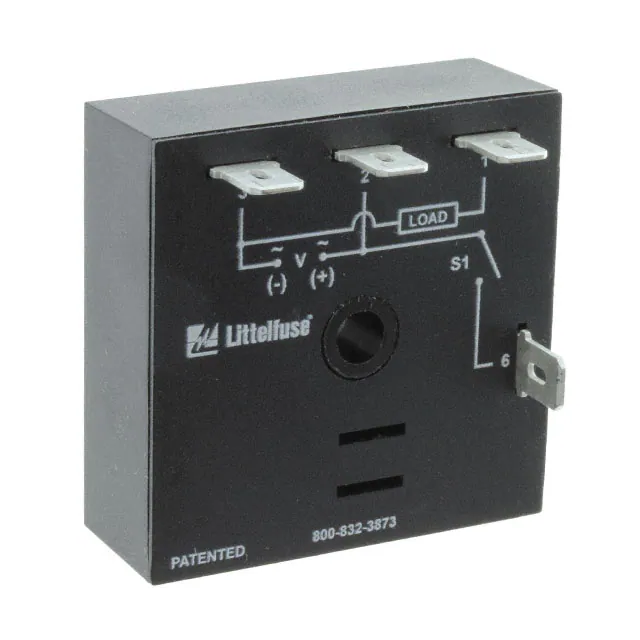

KSDB113MPRELAY TIME DELAY 3MIN CHAS MT |
1,626 |
|
Datasheet | KSDB | Bulk | Active | Chassis Mount | Solid State Relay | Off-Delay | SPST-NO (1 Form A) | Fixed, 3 Min | - | 12VDC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage, Trigger Signal | - | - |
|

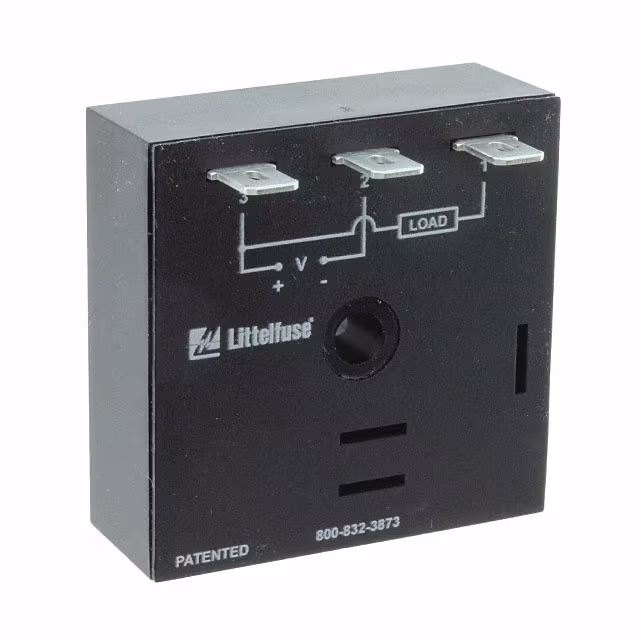

KSPSN13MIRELAY TIME DELAY 3MIN CHAS MT |
2,841 |
|
Datasheet | KSPS | Bulk | Active | Chassis Mount | Solid State Relay | Interval | SPST-NO (1 Form A) | Fixed, 3 Min | - | 12 ~ 120VDC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage | - | - |
|
TSA141300RELAY TIME DELAY 5MIN CHAS MT |
3,469 |
|
Datasheet | TSA | Bulk | Active | Chassis Mount | Solid State Relay | On-Delay | - | Fixed, 5 Min | - | 120VAC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage, Trigger Signal | - | - |
|

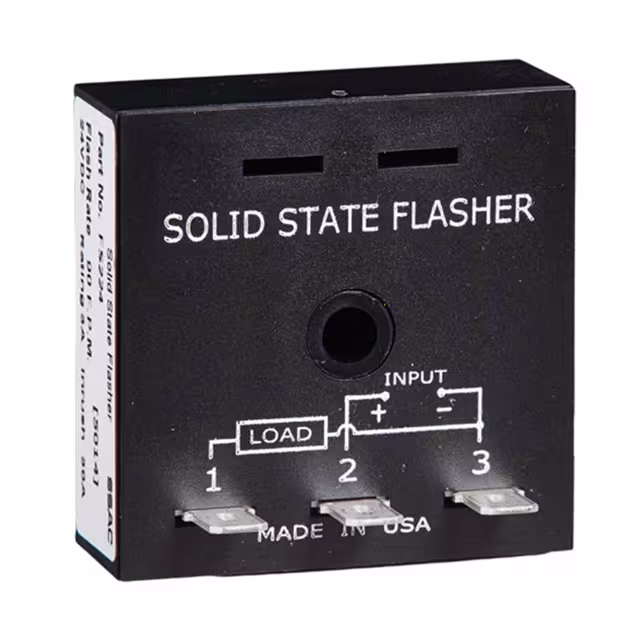

FS224RELAY TIME DELAY 90 FPM CHAS MT |
3,823 |
|
Datasheet | FS200 | Bulk | Active | Chassis Mount | Solid State Relay | Repeat Cycle | SPST-NO (1 Form A) | Fixed, 90 FPM | - | 24VDC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage | - | - |
|

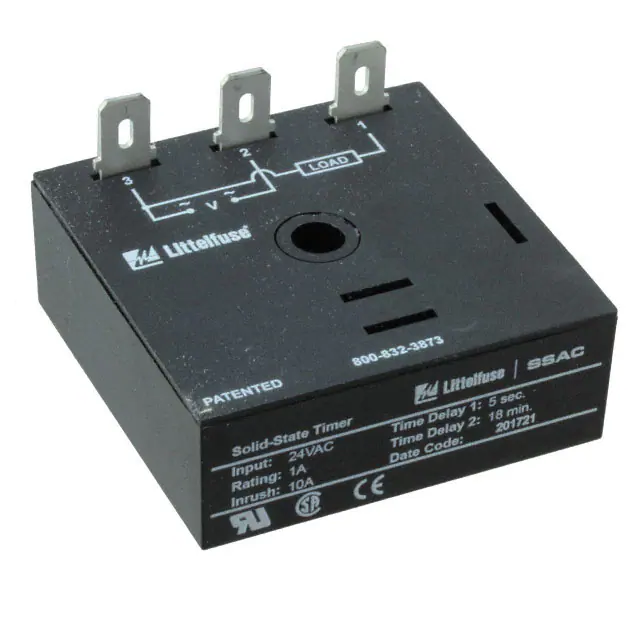

TSDR215SB18MRELAY TIME DELAY 18 MIN CHAS MT |
3,710 |
|
Datasheet | TSDR | Bulk | Active | Chassis Mount | Solid State Relay | Repeat Cycle | SPST-NO (1 Form A) | Fixed, 5 Sec, 18 Min | - | 24VAC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage | - | - |
|
|
TSDR415SB18MRELAY TIME DELAY 18 MIN CHAS MT |
2,079 |
|
Datasheet | TSDR | Bulk | Active | Chassis Mount | Solid State Relay | Repeat Cycle | SPST-NO (1 Form A) | Fixed, 5 Sec, 18 Min | - | 120VAC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage | - | - |
