Speakers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Technology | Type | Frequency Range | Frequency - Self Resonant | Impedance | Efficiency - dBA | Efficiency - Testing | Efficiency - Type | Power - Rated | Power - Max | Port Location | Shape | Material - Cone | Material - Magnet | Ingress Protection | Ratings | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMS-15113-078L100B-67SPEAKER 8OHM 700MW TOP PORT 91DB |
148 |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 700Hz | 8 Ohms | 91.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads with Connector | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|
|
CMS-151135-076L100B-67SPEAKER 6OHM 700MW TOP PORT 92DB |
135 |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 600Hz | 6 Ohms | 92.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads with Connector | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|
GC0281MSPEAKR 8OHM 100MW TOP PORT 112DB |
1,922 |
|
Datasheet | GC | Tray | Active | Magnetic | General Purpose | 0 Hz ~ 2.8 kHz | - | 8 Ohms | 91.00 | - | Sound Pressure Level (SPL) | 100 mW | 200 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.102" Dia (28.00mm) |
|
CMS-25145-158SPSPEAKER 8OHM 1.5W TOP PORT 93DB |
489 |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 560 Hz ~ 10 kHz | 700Hz | 8 Ohms | 93.00 | 1.5W/100mm | Sound Pressure Level (SPL) | 1.5 W | 1.8 W | Top | Rectangular | Foam | Nd-Fe-B | - | - | Solder Pads | 0.984" L x 0.551" W (25.00mm x 14.00mm) |
|
CMR-15062S-67SPEAKR 32OHM 20MW TOP PORT 117DB |
844 |
|
Datasheet | CMR | Tray | Active | Magnetic | Receiver | 300 Hz ~ 7 kHz | 550Hz | 32 Ohms | 117.00 | - | Sound Pressure Level (SPL) | 20 mW | 30 mW | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Spring Type | 0.591" L x 0.236" W (15.00mm x 6.00mm) |
|
CMS-15118D-SPSPEAKER 8OHM 700MW TOP PORT 91DB |
667 |
|
Datasheet | CMS | Tray | Active | Magnetic | Low Profile | 425 Hz ~ 10 kHz | 500Hz | 8 Ohms | 91.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|
CDS-4020-16SPEAKER 16OHM 1.5W TOP PORT 90DB |
330 |
|
Datasheet | CDS | Box | Active | Magnetic | General Purpose | 440 Hz ~ 20 kHz | 550Hz | 16 Ohms | 90.00 | 100mW/100mm | Sound Pressure Level (SPL) | 1.5 W | 3 W | Top | Oval, Rectangular Frame | Cloth | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.575" L x 0.787" W (40.00mm x 20.00mm) |
|

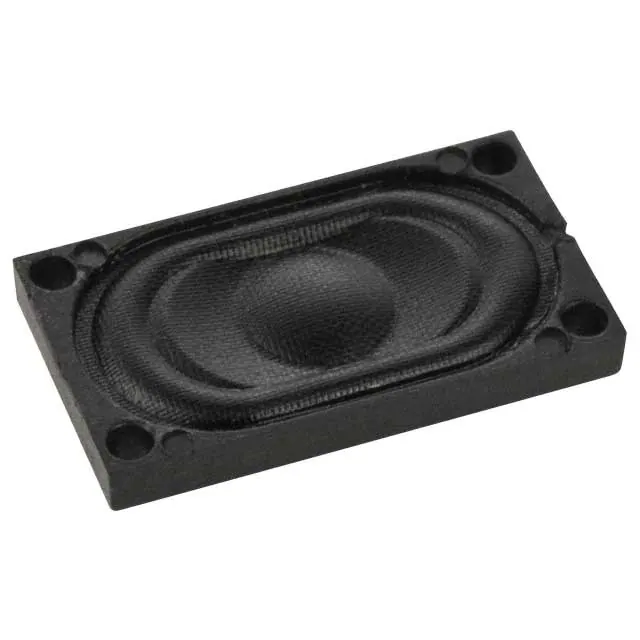

CDS-25148SPEAKER 8OHM 1.5W TOP PORT 73DB |
2,226 |
|
Datasheet | CDS | Tray | Active | Magnetic | General Purpose | 600 Hz ~ 20 kHz | 750Hz | 8 Ohms | 73.00 | 1W/1M | Sound Pressure Level (SPL) | 1.5 W | 2 W | Top | Rectangular | Cloth | Nd-Fe-B | - | - | Solder Pads | 0.984" L x 0.551" W (25.00mm x 14.00mm) |
|
CMS-15116-SPSPEAKER 6OHM 940MW TOP PORT 89DB |
431 |
|
Datasheet | CMS | Tray | Active | Magnetic | Low Profile | 467.5 Hz ~ 15 kHz | 550Hz | 6 Ohms | 89.00 | 940mW/100mm | Sound Pressure Level (SPL) | 940 mW | 1.3 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|
CVS-2308SPEAKER 8OHM 100MW TOP PORT 77DB |
979 |
|
Datasheet | CVS | Tray | Active | Magnetic | General Purpose | 1.2 kHz ~ 6 kHz | 1500Hz | 8 Ohms | 77.00 | 1W/1M | Sound Pressure Level (SPL) | 100 mW | 150 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | Washable | PC Pins | 0.906" Dia (23.00mm) |
