Speakers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Technology | Type | Frequency Range | Frequency - Self Resonant | Impedance | Efficiency - dBA | Efficiency - Testing | Efficiency - Type | Power - Rated | Power - Max | Port Location | Shape | Material - Cone | Material - Magnet | Ingress Protection | Ratings | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDM-12008SPEAKER 8OHM 500MW TOP PORT 90DB |
1,991 |
|
Datasheet | CDM | Tray | Active | Magnetic | General Purpose | 800 Hz ~ 20 kHz | 1000Hz | 8 Ohms | 90.00 | 500mW/100mm | Sound Pressure Level (SPL) | 500 mW | 600 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.472" Dia (12.00mm) |
|
CMS-16093-076SP-67SPEAKER 6OHM 700MW TOP PORT 90DB |
5,717 |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 600Hz | 6 Ohms | 90.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 0.630" L x 0.354" W (16.00mm x 9.00mm) |
|
CMS-151125-078SP-67SPEAKER 8OHM 700MW TOP PORT 91DB |
1,471 |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 700Hz | 8 Ohms | 91.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|
CMS-181325-078L100SPEAKER 8OHM 700MW TOP PORT 93DB |
2,219 |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 500 Hz ~ 10 kHz | 800Hz | 8 Ohms | 93.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 0.709" L x 0.512" W (18.00mm x 13.00mm) |
|
CMS-151125-076S-67SPEAKER 6OHM 700MW TOP PT 92.5DB |
7,332 |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 550Hz | 6 Ohms | 92.50 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|
CMS-16093-076S-67SPEAKER 6OHM 700MW TOP PORT 90DB |
2,393 |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 600Hz | 6 Ohms | 90.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Spring Type | 0.630" L x 0.354" W (16.00mm x 9.00mm) |
|

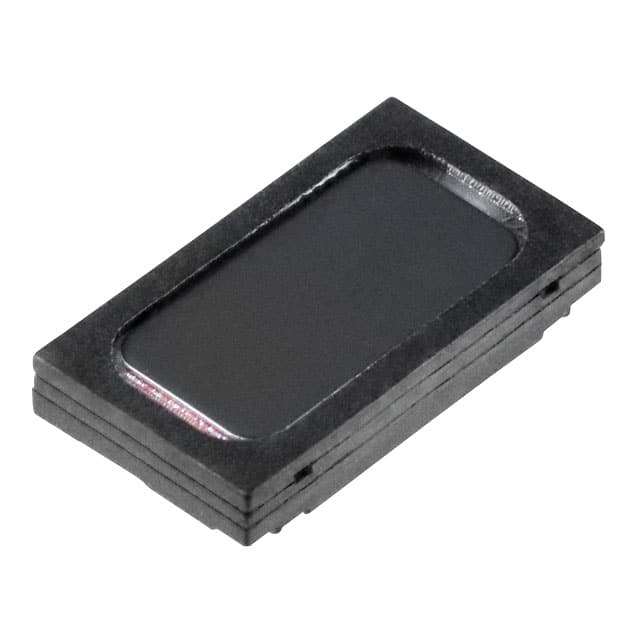

CMS-160903-16SPSPEAKER 6OHM 940MW TOP PORT 91DB |
419 |
|
Datasheet | CMS | Box | Active | Magnetic | General Purpose | 500 Hz ~ 10 kHz | 850Hz | 6 Ohms | 91.00 | 940mW/100mm | Sound Pressure Level (SPL) | 940 mW | 1.2 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | - | - | Solder Pads | 0.630" L x 0.354" W (16.00mm x 9.00mm) |
|
CMS-181325-078S-67SPEAKER 8OHM 700MW TOP PORT 93DB |
2,356 |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 500 Hz ~ 10 kHz | 800Hz | 8 Ohms | 93.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Spring Type | 0.709" L x 0.512" W (18.00mm x 13.00mm) |
|
CMS-151125-078L100A-67SPEAKER 8OHM 700MW TOP PORT 91DB |
3,004 |
|
- |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 700Hz | 8 Ohms | 91.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads with Connector | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|
CDM-13008SPEAKER 8OHM 200MW TOP PORT 87DB |
500 |
|
Datasheet | CDM | Tray | Active | Magnetic | General Purpose | 880 Hz ~ 20 kHz | 1100Hz | 8 Ohms | 87.00 | 200mW/100mm | Sound Pressure Level (SPL) | 200 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.512" Dia (13.00mm) |
