Speakers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Technology | Type | Frequency Range | Frequency - Self Resonant | Impedance | Efficiency - dBA | Efficiency - Testing | Efficiency - Type | Power - Rated | Power - Max | Port Location | Shape | Material - Cone | Material - Magnet | Ingress Protection | Ratings | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CES-503528-28PM-67SPEAKER 8OHM 2W TOP PORT 97DB |
433 |
|
Datasheet | CES | Tray | Active | Magnetic | General Purpose, Enclosure Included | 544 Hz ~ 20 kHz | 680Hz | 8 Ohms | 97.00 | 2W/100mm | Sound Pressure Level (SPL) | 2 W | 2.5 W | Top | Rectangular | Polyethylenimine (PEI) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads with Connector | 1.969" L x 1.378" W (50.00mm x 35.00mm) |
|
CES-6123-34PM-67ENCLOSED SPEAKER, 1W, 8OHM |
474 |
|
Datasheet | CES | Tray | Active | Magnetic | General Purpose | 600 Hz ~ 4.5 kHz | 750Hz | 4 Ohms | 116.00 | 3W/100mm | Sound Pressure Level (SPL) | 3 W | 4 W | Top | Round | Polyethylene Terephthalate (PET) | Nd-Fe-B | IPX7 | - | Wire Leads | 2.402" Dia (61.00mm) |
|
|
CDS-4410-54SPSPEAKER, 45 MM, 10 MM DEEP, PU+P |
388 |
|
Datasheet | CDS | Tray | Active | Magnetic | General Purpose | 360 Hz ~ 4 kHz | 450Hz | 4 Ohms | 84.00 | 1W/500mm | Sound Pressure Level (SPL) | 5 W | 6 W | Top | Round | Paper, Polyurethane (PU) | Nd-Fe-B | - | - | Solder Pads | 1.772" Dia (45.00mm) |
|
GF0876MSPEAKER 8OHM 12W TOP PORT 97DB |
1,491 |
|
Datasheet | GF | Box | Active | Magnetic | General Purpose | 580 Hz ~ 18 kHz | - | 8 Ohms | 97.00 | 1W/500mm | Sound Pressure Level (SPL) | 12 W | 15 W | Top | Round, Square Frame | Polyester, Polyethylene Terephthalate (PET) | Ferrite | - | - | Solder Eyelet(s) | 3.425" L x 3.425" W (87.00mm x 87.00mm) |
|
|
CMSM-3116-3416.6MM, 3W, 4OHM, 280HZ |
410 |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 224 Hz ~ 20 kHz | 280Hz | 4 Ohms | 98.00 | 3W/100mm | Sound Pressure Level (SPL) | 3 W | 3.5 W | Top | Round, Square Frame | Aluminum (AI), Rubber | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Eyelet(s) | 1.244" L x 1.244" W (31.60mm x 31.60mm) |
|
|
CMSM-2313-1823MM, 1W, 8OHM, 325HZ |
872 |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 325 Hz ~ 20 kHz | 325Hz | 8 Ohms | 97.00 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Round | Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | PC Pins | 0.906" Dia (23.00mm) |
|
CMS0321KLXSPEAKER 8OHM 2W TOP PORT 86DB |
697 |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 240 Hz ~ 15 kHz | 300Hz | 8 Ohms | 86.00 | 1W/500mm | Sound Pressure Level (SPL) | 2 W | 4 W | Top | Round, Square Frame | Paper | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.260" L x 1.260" W (32.00mm x 32.00mm) |
|
|
CDSM-6631-4866MM, 4W, 8OHM, 200HZ |
461 |
|
Datasheet | CDS | Tray | Active | Magnetic | General Purpose | 160 kHz ~ 20 kHz | 200Hz | 8 Ohms | 110.00 | 4W/100mm | Sound Pressure Level (SPL) | 4 W | 5 W | Top | Round, Square Frame | Cloth, Paper | Nd-Fe-B | - | - | Solder Eyelet(s) | 2.598" L x 2.598" W (66.00mm x 66.00mm) |
|

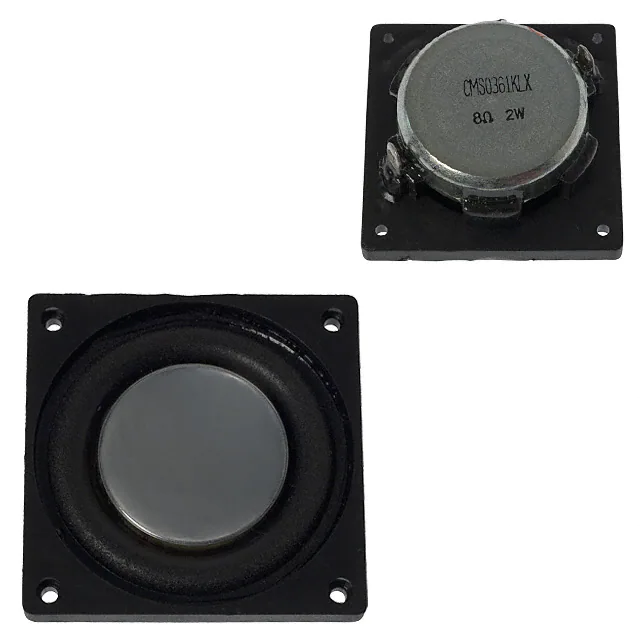

CMS0361KLXSPEAKER 8OHM 2W TOP PORT 82DB |
1,178 |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 184 Hz ~ 20 kHz | 230Hz | 8 Ohms | 82.00 | 1W/500mm | Sound Pressure Level (SPL) | 2 W | 4 W | Top | Round, Square Frame | Paper | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.421" L x 1.421" W (36.10mm x 36.10mm) |
|

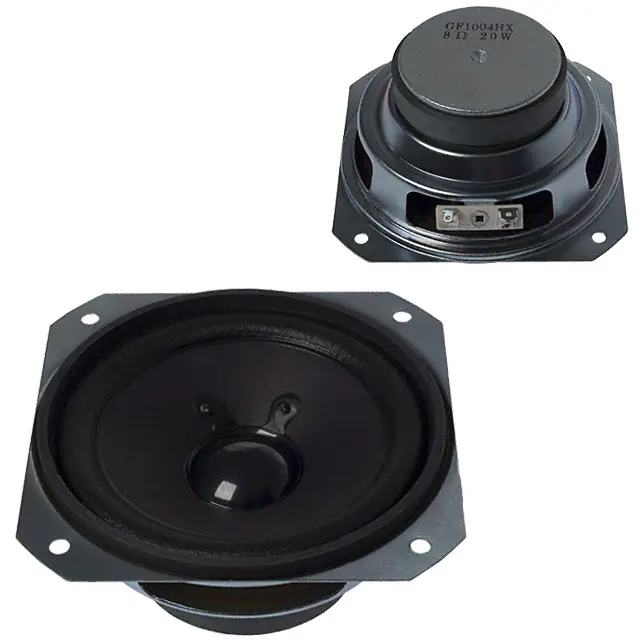

GF1004HSPEAKER 8OHM 20W TOP PORT 90DB |
2,375 |
|
Datasheet | GF | Box | Active | Magnetic | General Purpose | 100 Hz ~ 10 kHz | 100Hz | 8 Ohms | 90.00 | 1W/500mm | Sound Pressure Level (SPL) | 20 W | 40 W | Top | Round, Square Frame | Paper | Ferrite | - | - | Solder Eyelet(s) | 4.016" L x 4.016" W (102.00mm x 102.00mm) |
