Speakers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Technology | Type | Frequency Range | Frequency - Self Resonant | Impedance | Efficiency - dBA | Efficiency - Testing | Efficiency - Type | Power - Rated | Power - Max | Port Location | Shape | Material - Cone | Material - Magnet | Ingress Protection | Ratings | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDS-1328-16-SPSPEAKR 16OHM 200MW TOP PORT 85DB |
985 |
|
Datasheet | CDS | Box | Active | Magnetic | General Purpose | 880 Hz ~ 5 kHz | 1.1kHz | 16 Ohms | 85.00 | 100mW/100mm | Sound Pressure Level (SPL) | 200 mW | 300 mW | Top | Round | Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.512" Dia (13.00mm) |
|

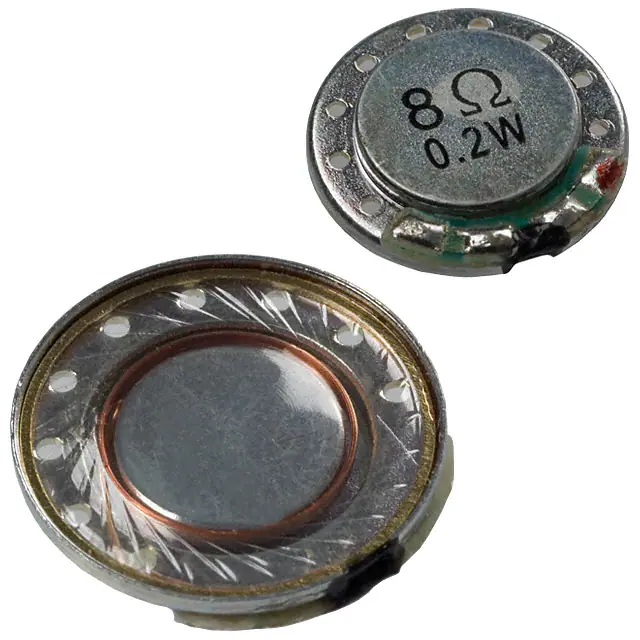

CDMG13008L-02SPEAKER 8OHM 200MW TOP PORT 75DB |
870 |
|
Datasheet | CDMG | Tray | Active | Magnetic | General Purpose | 1.05 kHz ~ 20 kHz | 1050Hz | 8 Ohms | 75.00 | 1W/1M | Sound Pressure Level (SPL) | 200 mW | 400 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.512" Dia (13.00mm) |
|
CMS-16093-076SSPEAKER 6OHM 700MW TOP PORT 90DB |
2,734 |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 600Hz | 6 Ohms | 90.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Spring Type | 0.630" L x 0.354" W (16.00mm x 9.00mm) |
|
CMS-16093-078SSPEAKER 8OHM 700MW TOP PORT 91DB |
1,158 |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 550Hz | 8 Ohms | 91.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Spring Type | 0.630" L x 0.354" W (16.00mm x 9.00mm) |
|
CMS-151125-076SSPEAKER 6OHM 700MW TOP PT 92.5DB |
899 |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 550Hz | 6 Ohms | 92.50 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|
CMS-15113-078SSPEAKER 8OHM 700MW TOP PORT 91DB |
842 |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 700Hz | 8 Ohms | 91.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|

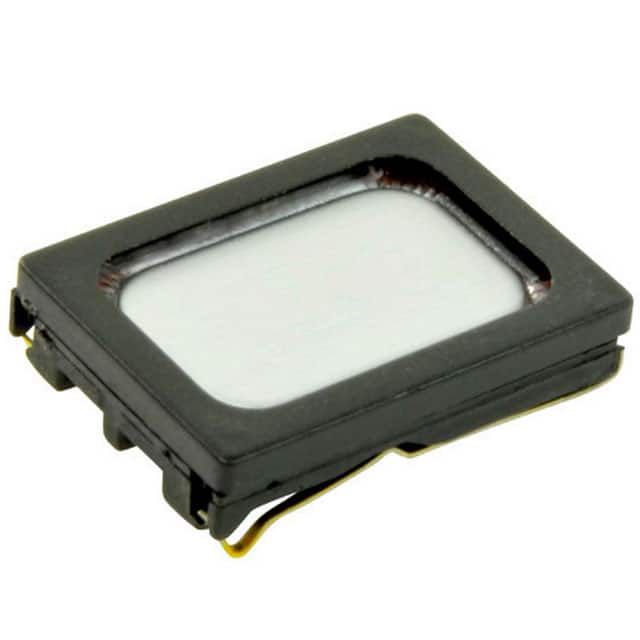

CMS-151125-076L100SPEAKER 6OHM 700MW TOP PT 92.5DB |
386 |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 550Hz | 6 Ohms | 92.50 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|
CMS-151125-078L100SPEAKER 8OHM 700MW TOP PORT 91DB |
688 |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 700Hz | 8 Ohms | 91.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|

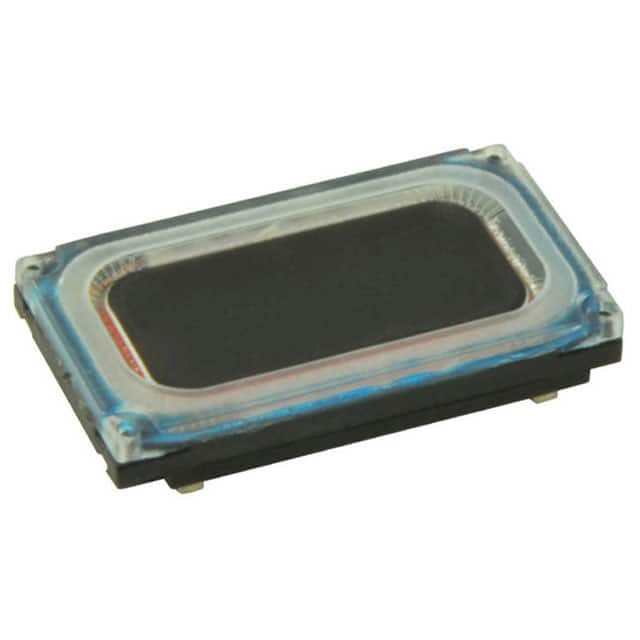

CMS-16093-076L100SPEAKER 6OHM 700MW TOP PORT 90DB |
536 |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 600Hz | 6 Ohms | 90.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 0.630" L x 0.354" W (16.00mm x 9.00mm) |
|
CMS-160925-078L100SPEAKER 8OHM 700MW TOP PORT 90DB |
265 |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 550Hz | 8 Ohms | 90.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 0.630" L x 0.354" W (16.00mm x 9.00mm) |
