Speakers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Technology | Type | Frequency Range | Frequency - Self Resonant | Impedance | Efficiency - dBA | Efficiency - Testing | Efficiency - Type | Power - Rated | Power - Max | Port Location | Shape | Material - Cone | Material - Magnet | Ingress Protection | Ratings | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

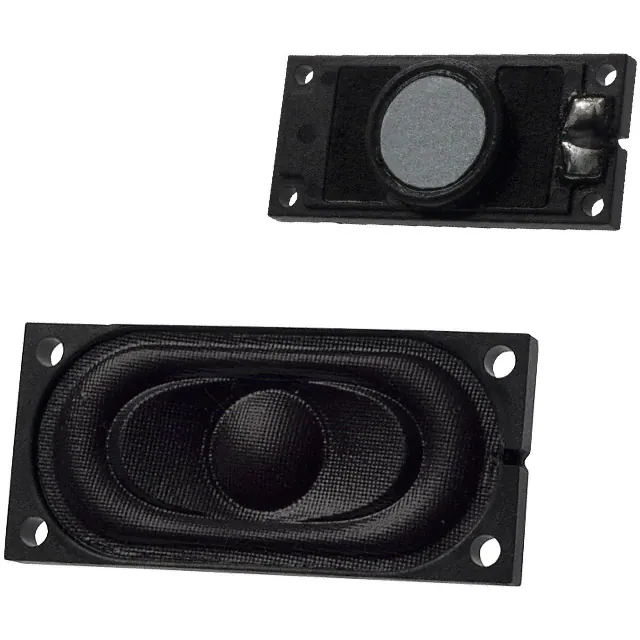

GC0351MSPEAKER 8OHM 1W TOP PORT 81DB |
26,969 |
|
Datasheet | GC | Tray | Active | Magnetic | General Purpose | 520 Hz ~ 20 kHz | 650Hz | 8 Ohms | 81.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Oval, Rectangular Frame | Cloth | Nd-Fe-B | - | - | Solder Pads | 1.378" L x 0.630" W (35.00mm x 16.00mm) |
|
CLS0301MP-1SPEAKER 8OHM 200MW TOP PORT 78DB |
950 |
|
Datasheet | CLS | Tray | Active | Magnetic | Low Profile | 500 Hz ~ 6 kHz | 500Hz | 8 Ohms | 78.00 | 200mW/500mm | Sound Pressure Level (SPL) | 200 mW | 300 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | PC Pins | 1.181" Dia (30.00mm) |
|
CLS0282MA-L152SPEAKER 8OHM 500MW TOP PORT 85DB |
3,782 |
|
Datasheet | CLS | Tray | Active | Magnetic | Low Profile | 550 Hz ~ 10 kHz | 550Hz | 8 Ohms | 85.00 | 500mW/500mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 1.102" Dia (28.00mm) |
|
CMS-20103-078SPSPEAKER 8OHM 700MW TOP PORT 90DB |
424 |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 440 Hz ~ 20 kHz | 550Hz | 8 Ohms | 90.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | - | - | Solder Pads | 0.787" L x 0.394" W (20.00mm x 10.00mm) |
|
CES-271911-158PMSPEAKER 8OHM 1.5W TOP PORT 95DB |
597 |
|
Datasheet | CES | Tray | Active | Magnetic | General Purpose, Enclosure Included | 600 Hz ~ 5 kHz | 750Hz | 8 Ohms | 95.00 | 1.5W/100mm | Sound Pressure Level (SPL) | 1.5 W | 1.7 W | Top | Rectangular | Foam | Nd-Fe-B | - | - | Wire Leads with Connector | 1.067" L x 0.756" W (27.10mm x 19.20mm) |
|
CES-302611-158PM-67SPEAKER 8OHM 1.5W TOP PORT 95DB |
272 |
|
Datasheet | CES | Tray | Active | Magnetic | General Purpose, Enclosure Included | 720 Hz ~ 15 kHz | 900Hz | 8 Ohms | 95.00 | 1.5W/100mm | Sound Pressure Level (SPL) | 1.5 W | 1.8 W | Top | Rectangular | Polyurethane (PU), Polyethylenimine (PEI) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads with Connector | 1.181" L x 0.984" W (30.00mm x 25.00mm) |
|

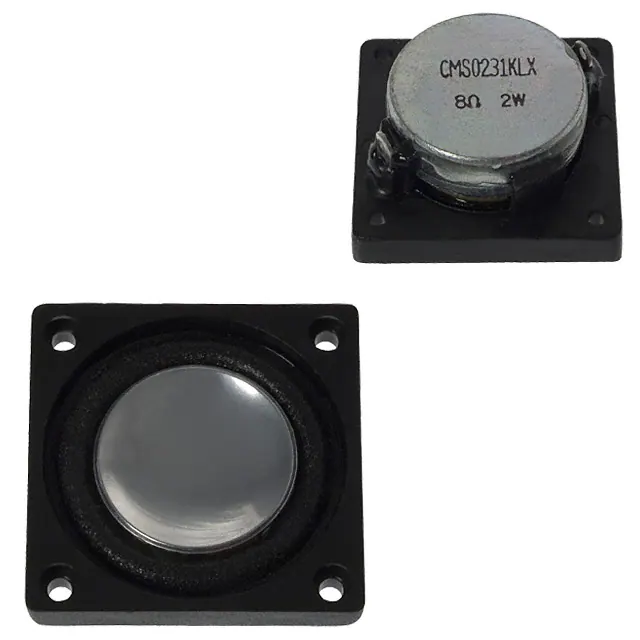

CMS0231KLXSPEAKER 8OHM 2W TOP PORT 82DB |
2,026 |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 450 Hz ~ 20 kHz | 450Hz | 8 Ohms | 82.00 | 1W/500mm | Sound Pressure Level (SPL) | 2 W | 4 W | Top | Round, Square Frame | Paper | Nd-Fe-B | - | - | Solder Eyelet(s) | 0.906" L x 0.906" W (23.00mm x 23.00mm) |
|
CES-571423-28PMSPEAKER 8OHM 2W TOP PORT 100DB |
338 |
|
Datasheet | CES | Box | Active | Magnetic | General Purpose, Enclosure Included | 700 Hz ~ 20 kHz | 700Hz | 8 Ohms | 100.00 | 2W/100mm | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Rectangular | Cloth | Nd-Fe-B | - | - | Wire Leads | 2.854" L x 0.906" W (72.50mm x 23.00mm) |
|

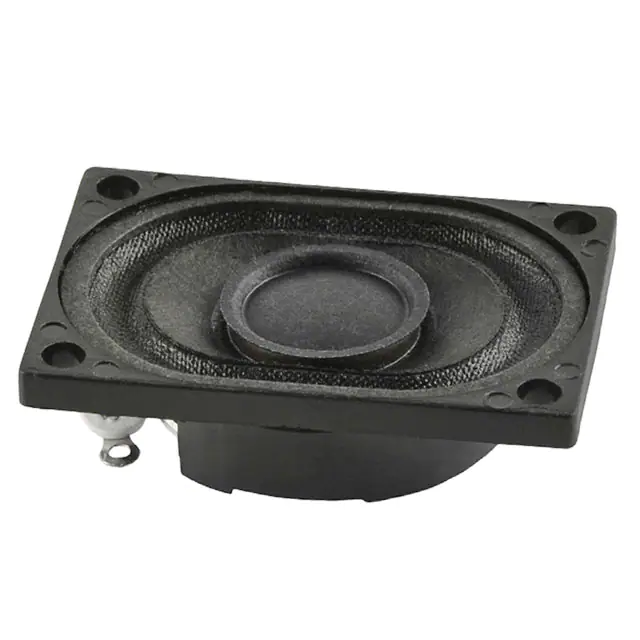

CMS-40288NSPEAKER 8OHM 2W TOP PORT 85DB |
240 |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 440 Hz ~ 20 kHz | 550Hz | 8 Ohms | 85.00 | 1W/300mm | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Oval, Rectangular Frame | Cloth | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.575" L x 1.102" W (40.00mm x 28.00mm) |
|

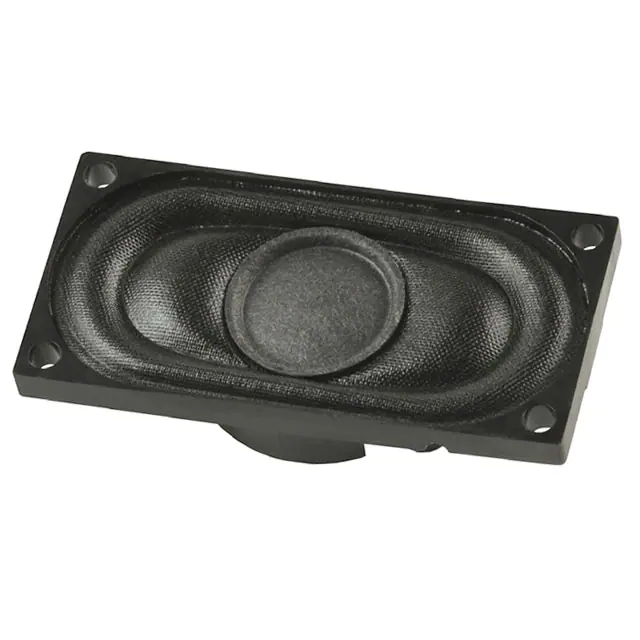

CMS-40208NSPEAKER 8OHM 1W TOP PORT 98DB |
985 |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 520 Hz ~ 13 kHz | 650Hz | 8 Ohms | 98.00 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Oval, Rectangular Frame | Cloth | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.575" L x 0.787" W (40.00mm x 20.00mm) |
