Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PV6HW40SS341SWITCH PB SPST 2A 48V |
155 |
|
Datasheet | PV6, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button | No Marking | Silver | LED, Blue | 2.8 VDC | Wire Leads | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
PVA6RPW41K1SWITCH PUSHBUTTON SPST 2A 36V |
163 |
|
Datasheet | PVA6 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Domed | Power Symbol | Black | LED, Green/Orange | 1.7 ~ 2.5 VDC / 2.8 ~ 3.7 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -20°C ~ 70°C |
|
PVA6LRE21111SWITCH PUSHBUTTON SPST 2A 36V |
123 |
|
Datasheet | PVA6L | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-On | 2A (DC) | - | 36 V | Round, Button, Domed | No Marking | Black | LED, Red | 1.7 ~ 2.5 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Fixed LED Ring | Circular - 16.00mm Dia | -20°C ~ 70°C |
|
ULV4F2B11544SWITCH PUSHBUTTON SPDT 3A 250V |
2,975 |
|
Datasheet | ULV4 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | Power Symbol | Black | LED, Blue | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
|
PVA6LRE21141SWITCH PUSHBUTTON SPST 2A 36V |
392 |
|
Datasheet | PVA6L | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-On | 2A (DC) | - | 36 V | Round, Button, Domed | No Marking | Black | LED, Blue | 2.8 ~ 3.7 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Fixed LED Ring | Circular - 16.00mm Dia | -20°C ~ 70°C |
|
PVA6RPW4141SWITCH PB SPST 2A 36V |
324 |
|
Datasheet | PVA6 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Domed | Power Symbol | Black | LED, Blue | 2.8 ~ 3.7 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -20°C ~ 70°C |
|
PVA6LRE212G1SWITCH PUSHBUTTON SPST 2A 36V |
120 |
|
Datasheet | PVA6L | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-On | 2A (DC) | - | 36 V | Round, Button, Domed | No Marking | Clear | LED, Green/Red | 1.7 ~ 2.5 VDC / 2.8 ~ 3.7 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Fixed LED Ring | Circular - 16.00mm Dia | -20°C ~ 70°C |
|

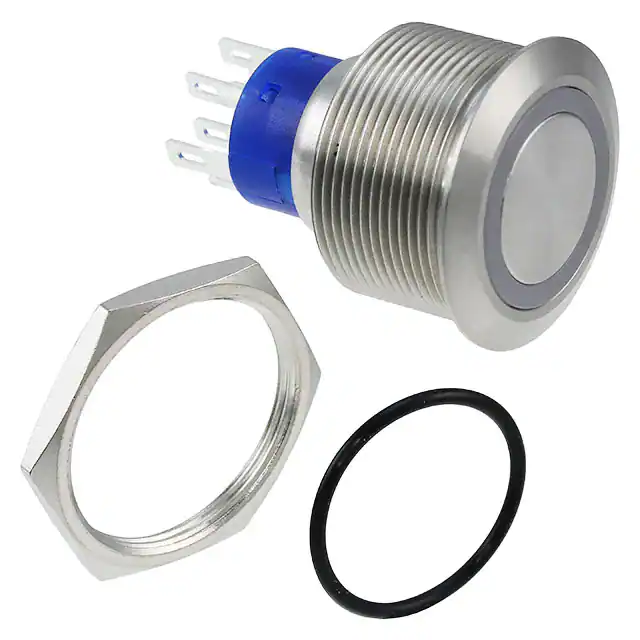

ULV8F2BSS331SWITCH PUSHBUTTON SPDT 3A 250V |
1,281 |
|
Datasheet | ULV8 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Green | 3 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 25.20mm Dia | -20°C ~ 55°C |
|
|
PVA6LRE211G1SWITCH PUSHBUTTON SPST 2A 36V |
117 |
|
Datasheet | PVA6L | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-On | 2A (DC) | - | 36 V | Round, Button, Domed | No Marking | Black | LED, Green/Red | 1.7 ~ 2.5 VDC / 2.8 ~ 3.7 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Fixed LED Ring | Circular - 16.00mm Dia | -20°C ~ 70°C |
|
|
PVA6REW4141SWITCH PB SPST 2A 36V |
126 |
|
Datasheet | PVA6 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Domed | No Marking | Black | LED, Blue | 2.8 ~ 3.7 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | Fixed LED Ring | Circular - 16.00mm Dia | -20°C ~ 70°C |
