Power Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F16-400PWR XFMR LAMINATED 6VA TH |
1,045 |
|
Datasheet | Split Pack™ | Box | Active | Laminated Core | 115V | Parallel 8V, Series 16V | Parallel 800mA, Series 400mA | Single | Dual | No | 6VA | Through Hole | PC Pin | 41.28mm L x 33.32mm W | 33.32mm | 2500Vrms | 0.44 lb (199.58 g) |
|
FD4-28PWR XFMR LAMINATED 6VA CHAS MT |
4,794 |
|
Datasheet | Quick Pack | Box | Active | Laminated Core | 115V, 230V | 28V | 200mA | Dual | Single | Yes | 6VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 65.07mm L x 31.75mm W | 34.93mm | 2500VAC | 0.44 lb (199.58 g) |
|

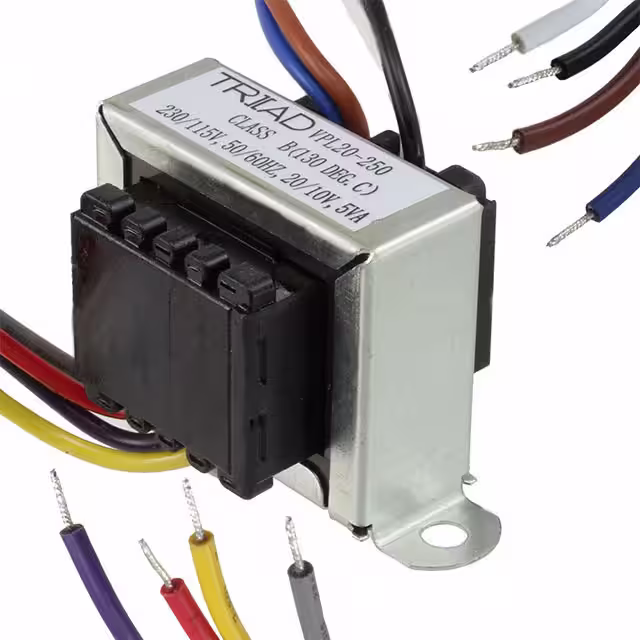

VPL20-250PWR XFMR LAMINATED 5.0VA CHAS MT |
1,810 |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | 20V | 250mA | Dual | Dual | No | 5.0VA | Chassis Mount | Wire Leads | 36.52mm L x 60.33mm W | 36.52mm | 3500Vrms | 0.4 lb (181.44 g) |
|
F48-400PWR XFMR LAMINATED 20VA TH |
2,778 |
|
Datasheet | Split Pack™, Class 2/3, F | Box | Active | Laminated Core | 115V | Parallel 24V, Series 48V | Parallel 800mA, Series 400mA | Single | Dual | No | 20VA | Through Hole | PC Pin | 57.15mm L x 47.63mm W | 36.50mm | 2500Vrms | 0.8 lb (362.87 g) |
|
F-44XPWR XFMR LAMINATED 25.2VA CHAS |
2,031 |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V | 12.6V | 2A | Single | Single | Yes | 25.2VA | Chassis Mount | Wire Leads | 84.12mm L x 50.80mm W | 49.20mm | 1500Vrms | 1.3 lbs (589.7 g) |
|
FP230-50PWR XFMR LAMINATED 12VA TH |
4,853 |
|
Datasheet | Flat Pack™ | Box | Active | Laminated Core | 115V, 230V | Parallel 120V, Series 230V | Parallel 100mA, Series 50mA | Dual | Dual | No | 12VA | Through Hole | PC Pin | 63.50mm L x 50.80mm W | 26.97mm | 2000Vrms | 0.688 lb (312.07 g) |
|
VPS28-1500PWR XFMR LAMINATED 43VA CHAS MT |
1,984 |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 3A, Series 1.5A | Dual | Dual | No | 43VA | Chassis Mount | Solder, Quick Connect | 58.67mm L x 50.80mm W | 68.33mm | 4000Vrms | 1.6 lbs (725.7 g) |
|
|
F16-2250PWR XFMR LAMINATED 36VA TH |
3,785 |
|
Datasheet | Split Pack™ | Box | Active | Laminated Core | 115V | Parallel 8V, Series 16V | Parallel 4.5A, Series 2.25A | Single | Dual | No | 36VA | Through Hole | PC Pin | 66.80mm L x 55.55mm W | 39.62mm | 2500Vrms | 1.1 lbs (499 g) |
|
FD6-28PWR XFMR LAMINATED 30VA CHAS MT |
1,702 |
|
Datasheet | Quick Pack | Box | Active | Laminated Core | 115V, 230V | 28V | 1.1A | Dual | Single | Yes | 30VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 82.55mm L x 42.85mm W | 49.20mm | 2500VAC | 1.1 lbs (499 g) |
|
TCT40-06E07ABPWR XFMR LAMINATED 40VA CHAS MT |
2,994 |
|
Datasheet | Class 2, TCT | Box | Active | Laminated Core | 120V, 240V | 24V | 1.67A | Single, Multiple Taps | Single | No | 40VA | Chassis Mount | Solder, Quick Connect | 92.46mm L x 56.67mm W | 57.40mm | 1500Vrms | 1.5 lbs (680.4 g) |
