Power Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F-251XPWR XFMR LAMINATED 28VA CHAS MT |
2,605 |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V | 14V | 2A | Single | Single | Yes | 28VA | Chassis Mount | Wire Leads | 93.65mm L x 49.0mm W | 57.15mm | 1500Vrms | 1.5 lbs (680.4 g) |
|
TCT50-09E07ABPWR XFMR LAMINATED 50VA CHAS MT |
2,116 |
|
Datasheet | Class 2, TCT | Box | Active | Laminated Core | 208V, 240V | 24V | 2.08A | Single, Multiple Taps | Single | No | 50VA | Chassis Mount | Solder, Quick Connect | 92.46mm L x 56.67mm W | 57.40mm | 1500Vrms | 2 lbs (907.2 g) |
|
VPS16-2700PWR XFMR LAMINATED 43VA CHAS MT |
1,251 |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | Parallel 8V, Series 16V | Parallel 5.4A, Series 2.7A | Dual | Dual | No | 43VA | Chassis Mount | Solder, Quick Connect | 58.67mm L x 50.80mm W | 54.10mm | 4000Vrms | 1.6 lbs (725.7 g) |
|
F-93XPWR XFMR LAMINATED VARIES CHAS |
4,185 |
|
Datasheet | Universal | Box | Active | Laminated Core | 115V | 10V, 20V, 40V | 750mA | Single, Multiple Taps | Single, Multiple Taps | No | Varies | Chassis Mount | Wire Leads | 101.60mm L x 57.15mm W | 66.04mm | 1500Vrms | 2.4 lbs (1.1 kg) |
|

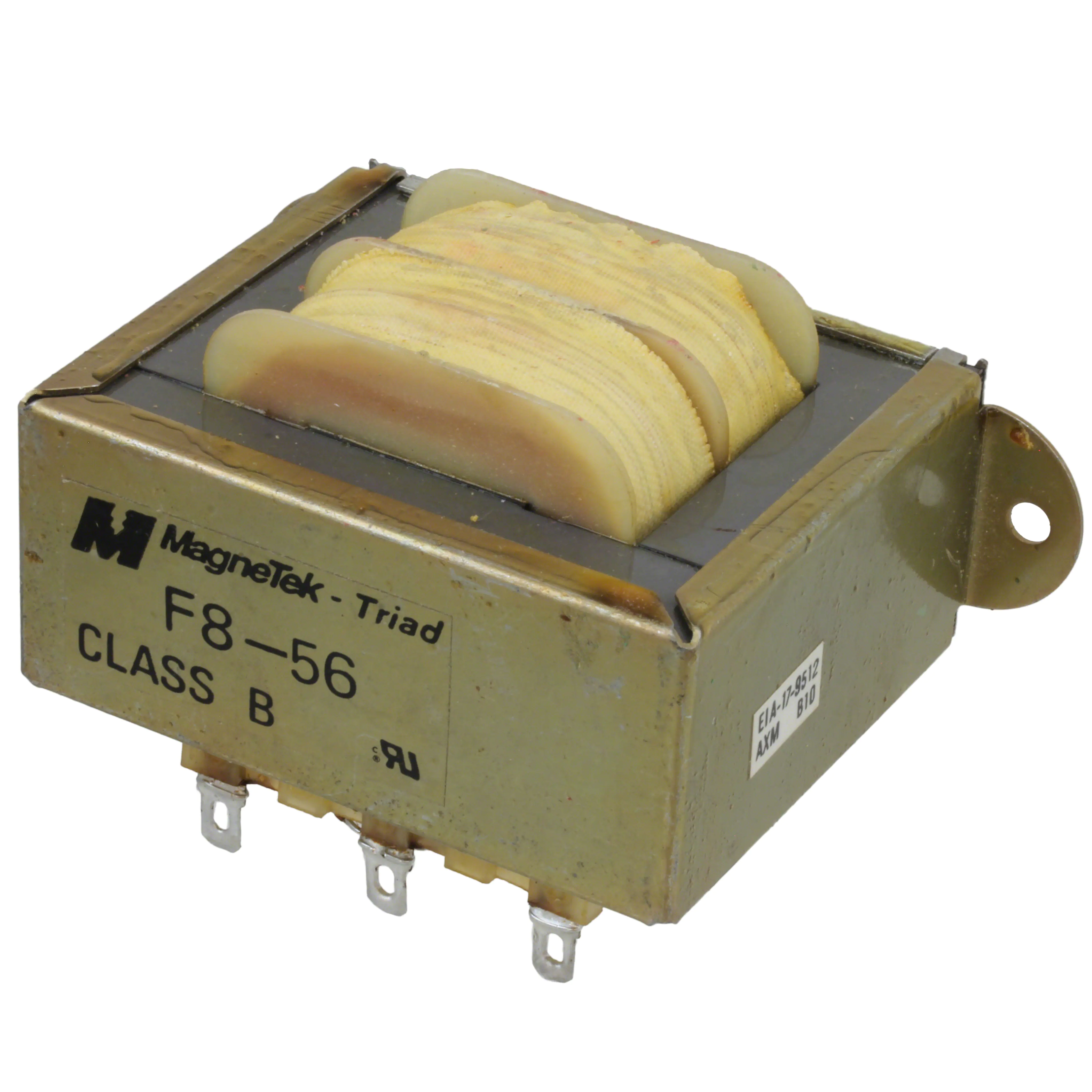

F8-56PWR XFMR LAMINATED 100VA CHAS MT |
1,188 |
|
Datasheet | Quick Pack | Box | Active | Laminated Core | 115V | 56V | 1.8A | Single | Single | Yes | 100VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 102.39mm L x 57.15mm W | 65.07mm | 2500VAC | 2.8 lbs (1.3 kg) |
|

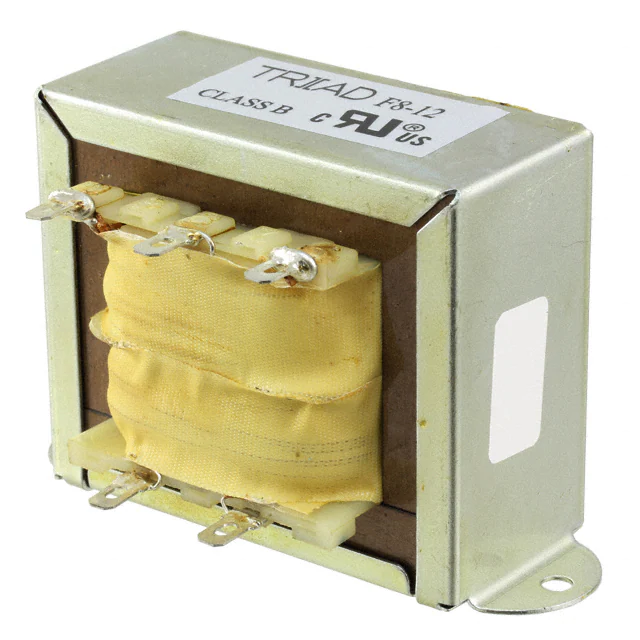

F8-12PWR XFMR LAMINATED 100VA CHAS MT |
1,188 |
|
Datasheet | Quick Pack | Box | Active | Laminated Core | 115V | 12.6V | 8A | Single | Single | Yes | 100VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 102.39mm L x 57.15mm W | 65.07mm | 2500VAC | 2.8 lbs (1.3 kg) |
|

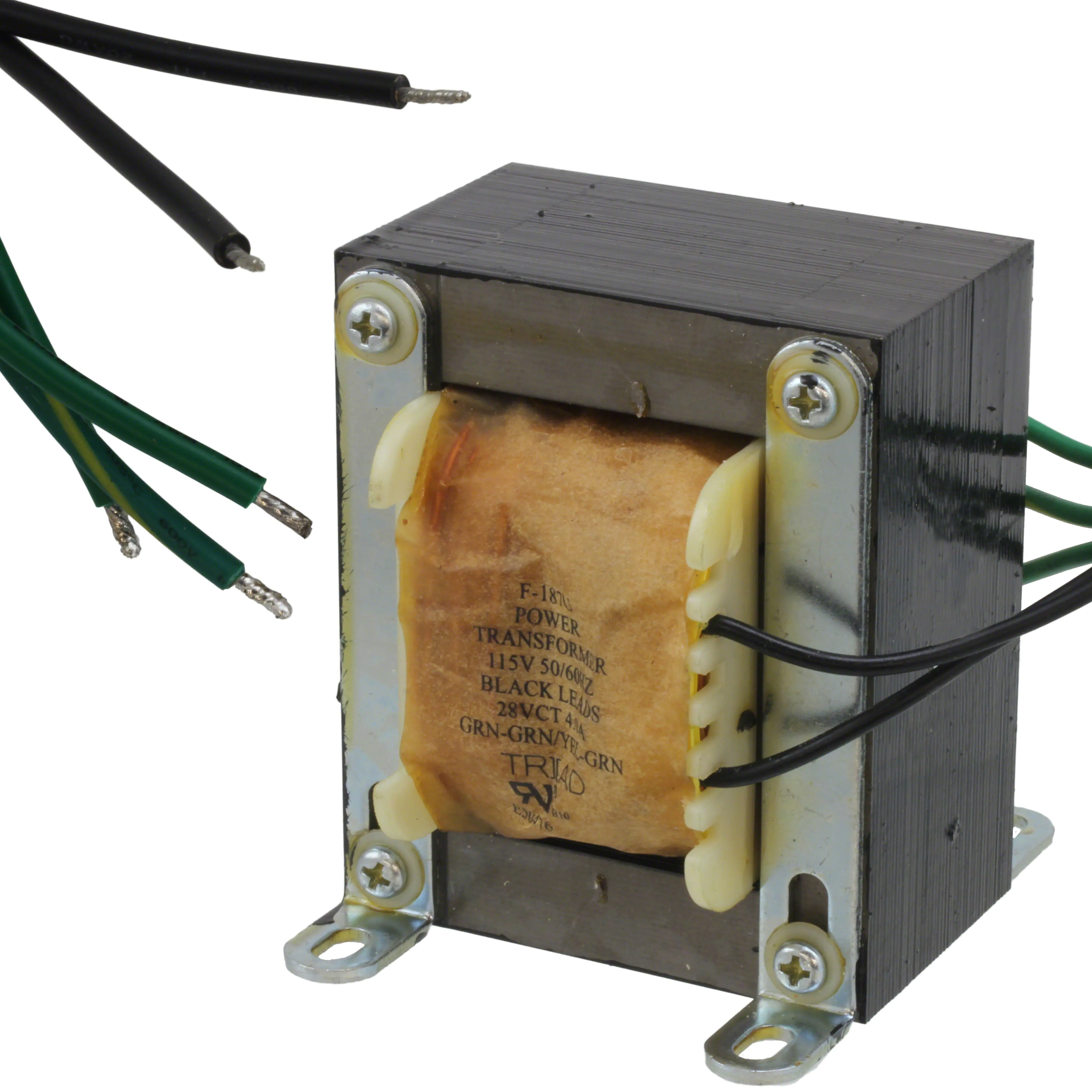

F-187UPWR XFMR LAMINATED 112VA CHAS MT |
2,496 |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V | 28V | 4A | Single | Single | Yes | 112VA | Chassis Mount | Wire Leads | 77.77mm L x 71.42mm W | 85.73mm | 1500Vrms | 5.3 lbs (2.4 kg) |
|

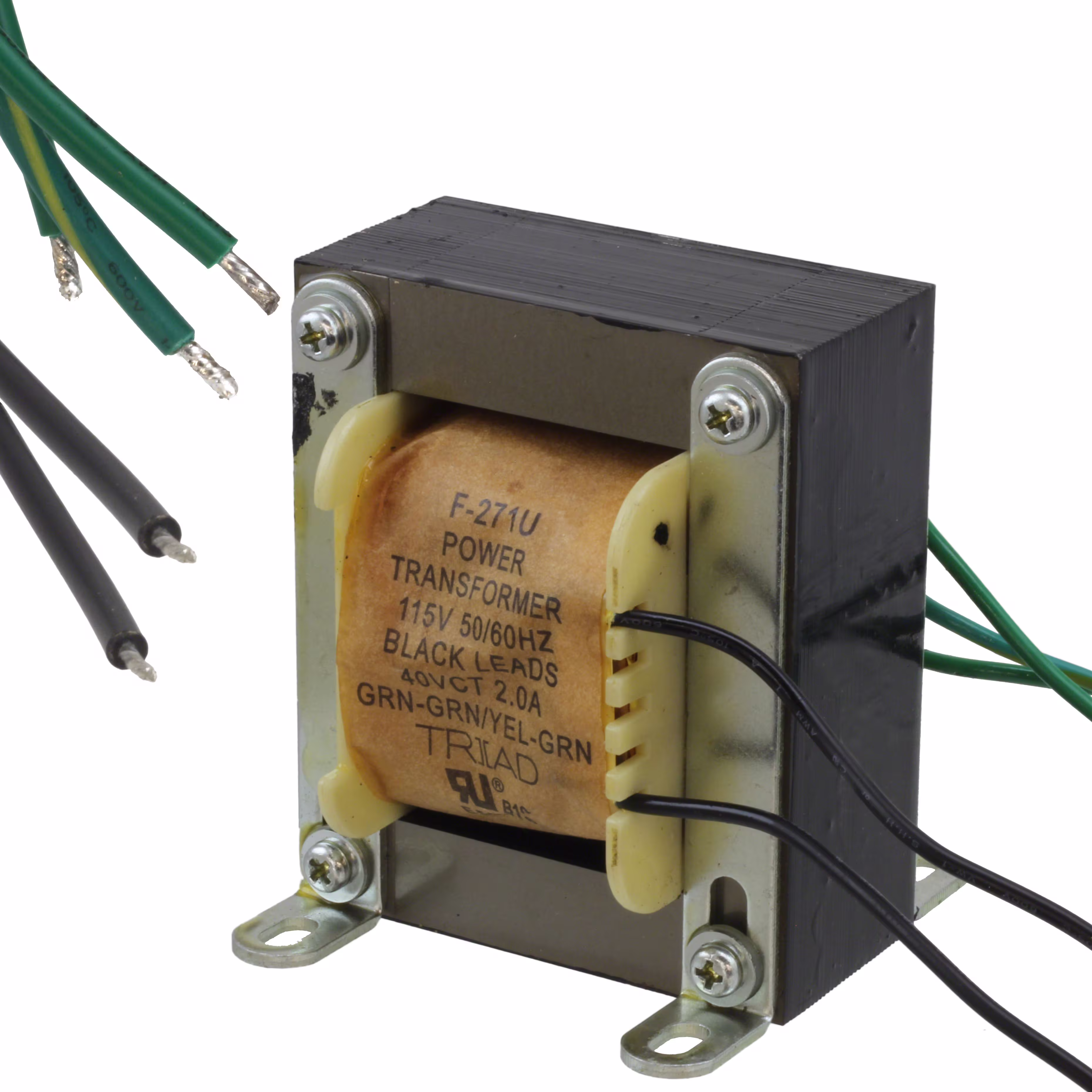

F-271UPWR XFMR LAMINATED 80VA CHAS MT |
2,216 |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V | 40V | 2A | Single | Single | Yes | 80VA | Chassis Mount | Wire Leads | 71.42mm L x 73.02mm W | 85.73mm | 1500Vrms | 4 lbs (1.8 kg) |
|

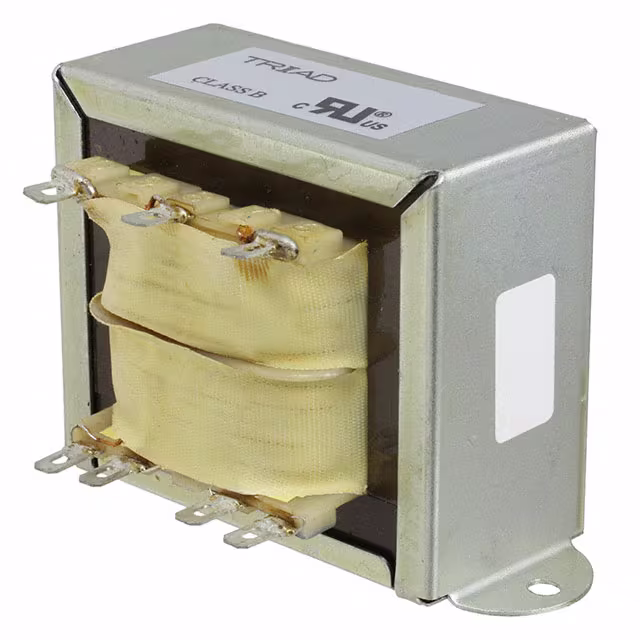

FD8-10PWR XFMR LAMINATED 100VA CHAS MT |
1,742 |
|
Datasheet | Quick Pack | Box | Active | Laminated Core | 115V, 230V | 10V | 10A | Dual | Single | Yes | 100VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 102.39mm L x 57.15mm W | 65.07mm | 2500VAC | 2.8 lbs (1.3 kg) |
|

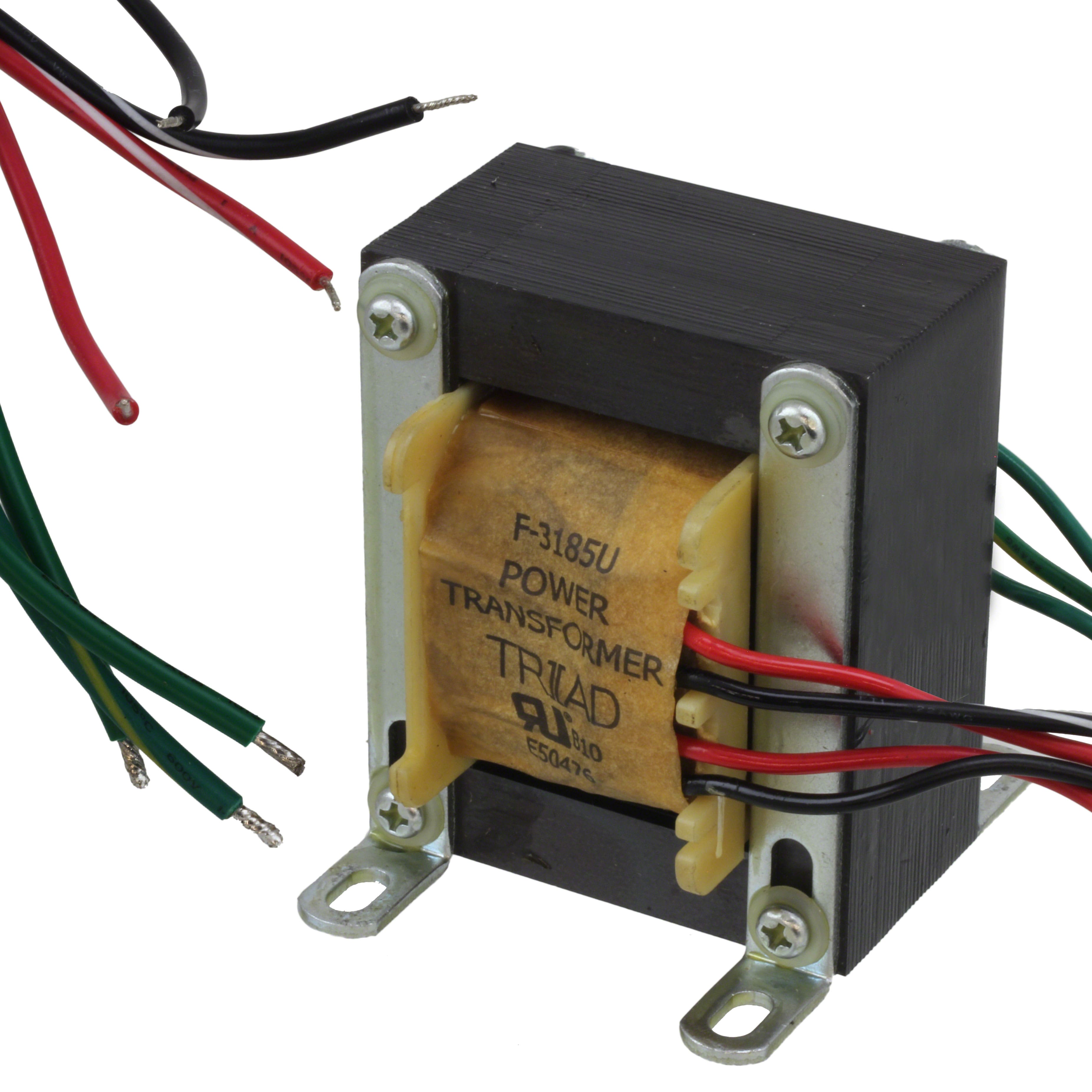

F-3185UPWR XFMR LAMINATED 56VA CHAS MT |
1,964 |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V, 230V | 28V | 2A | Dual | Single | Yes | 56VA | Chassis Mount | Wire Leads | 63.50mm L x 61.90mm W | 77.79mm | 1500Vrms | 2.9 lbs (1.3 kg) |
