Power Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F28-200-C2PWR XFMR LAMINATED 6VA TH |
3,607 |
|
Datasheet | Split Pack™, Class 2/3, F | Tray | Active | Laminated Core | 115V | Parallel 14V, Series 28V | Parallel 400mA, Series 200mA | Single | Dual | No | 6VA | Through Hole | PC Pin | 41.28mm L x 33.32mm W | 33.32mm | 2500Vrms | 0.44 lb (199.58 g) |
|
F120-020PWR XFMR LAMINATED 2.5VA TH |
2,553 |
|
Datasheet | Split Pack™, Class 2/3, F | Box | Active | Laminated Core | 115V | Parallel 60V, Series 120V | Parallel 40mA, Series 20mA | Single | Dual | No | 2.5VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 30.15mm | 2500Vrms | 0.25 lb (113.4 g) |
|
F3-120PWR XFMR LAMINATED 2.4VA CHAS MT |

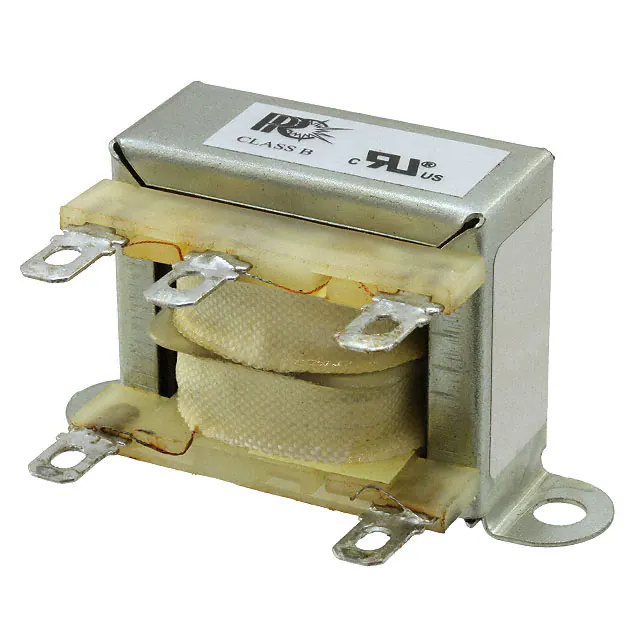

1,276 |
|
Datasheet | Quick Pack | Bulk | Active | Laminated Core | 115V | 120V | 20mA | Single | Single | Yes | 2.4VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 41.28mm L x 30.15mm W | 30.15mm | 2500VAC | 0.25 lb (113.4 g) |
|
F3-12PWR XFMR LAMINATED 2.4VA CHAS MT |

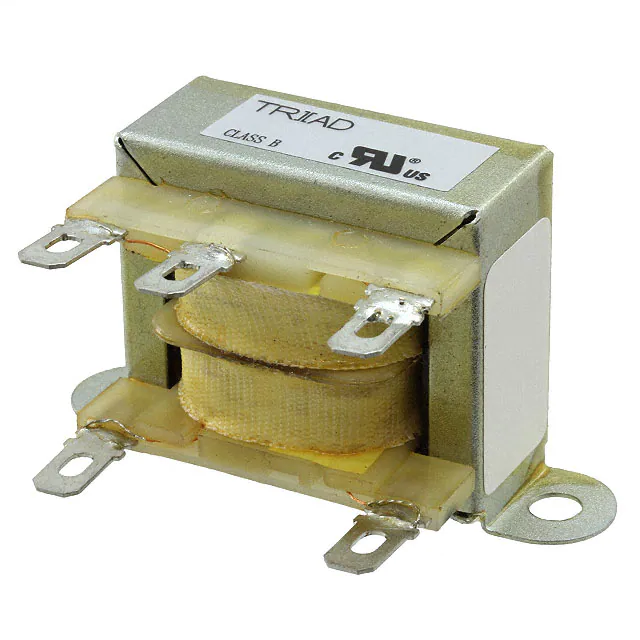

1,646 |
|
Datasheet | Quick Pack | Bulk | Active | Laminated Core | 115V | 12.6V | 200mA | Single | Single | Yes | 2.4VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 41.28mm L x 30.15mm W | 30.15mm | 2500VAC | 0.25 lb (113.4 g) |
|
F3-10PWR XFMR LAMINATED 2.4VA CHAS MT |

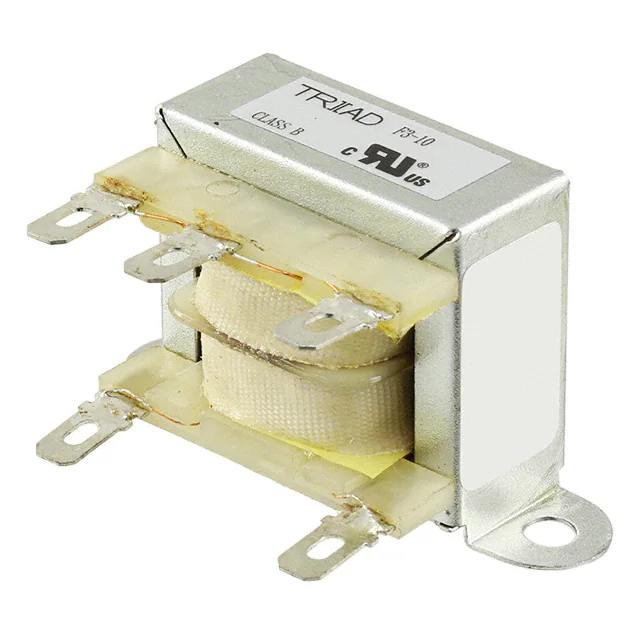

4,961 |
|
Datasheet | Quick Pack | Bulk | Active | Laminated Core | 115V | 10V | 250mA | Single | Single | Yes | 2.4VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 41.28mm L x 30.15mm W | 30.15mm | 2500VAC | 0.25 lb (113.4 g) |
|
TCT3-12E07AEPWR XFMR LAMINATED 2.5VA CHAS MT |
4,416 |
|
Datasheet | Class 2, TCT | Box | Active | Laminated Core | 240V | 10V | 250mA | Single | Single | No | 2.5VA | Chassis Mount | Solder, Quick Connect | 60.00mm L x 42.50mm W | 54.10mm | 1500Vrms | 0.5 lb (226.8 g) |
|
|
F120-100PWR XFMR LAMINATED 12VA TH |
4,055 |
|
Datasheet | Split Pack™, Class 2/3, F | Box | Active | Laminated Core | 115V | Parallel 60V, Series 120V | Parallel 200mA, Series 100mA | Single | Dual | No | 12VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 36.50mm | 2500Vrms | 0.7 lb (317.51 g) |
|
F-359XPPWR XFMR LAMINATED 10VA CHAS MT |
1,511 |
|
Datasheet | Single Primary | Box | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 900mA, Series 450mA | Dual | Dual | No | 10VA | Chassis Mount | PC Pin | 71.42mm L x 36.50mm W | 41.28mm | 1500Vrms | 0.688 lb (312.07 g) |
|
|
TCT3-03E07AEPWR XFMR LAMINATED 2.5VA CHAS MT |
1,419 |
|
Datasheet | Class 2, TCT | Box | Active | Laminated Core | 120V | 12V | 250mA | Single | Single | No | 2.5VA | Chassis Mount | Solder, Quick Connect | 60.00mm L x 42.50mm W | 54.10mm | 1500Vrms | 0.5 lb (226.8 g) |
|
F12-1000-C2PWR XFMR LAMINATED 12VA TH |
4,031 |
|
Datasheet | Split Pack™, Class 2/3, F | Tube | Active | Laminated Core | 115V | Parallel 6.3V, Series 12.6V | Parallel 2A, Series 1A | Single | Dual | No | 12VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 36.50mm | 4200Vrms | 0.7 lb (317.51 g) |
