Power Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

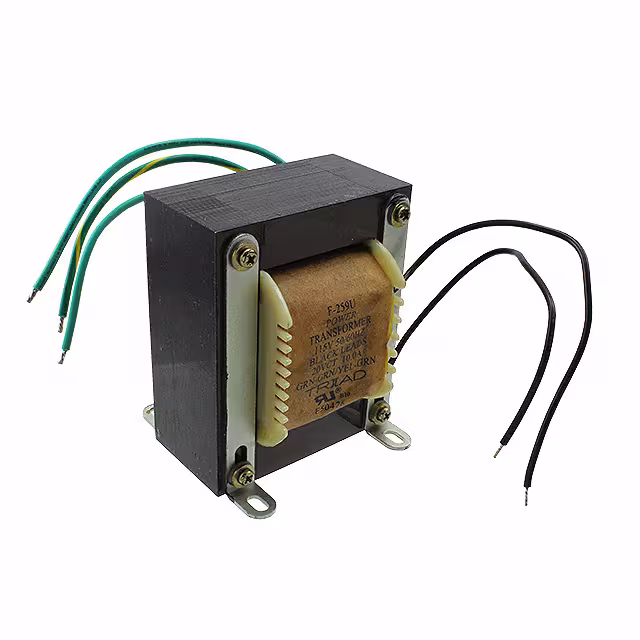

F-259UPWR XFMR LAMINATED 200VA CHAS MT |
1,450 |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V | 20V | 10A | Single | Single | Yes | 200VA | Chassis Mount | Wire Leads | 87.30mm L x 88.90mm W | 104.77mm | 1500Vrms | 7.4 lbs (3.4 kg) |
|
VPT18-8800PWR XFMR TOROIDAL 160VA CHAS MT |
2,182 |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Toroidal | 115V, 230V | Parallel 9V, Series 18V | Parallel 17.6A, Series 8.8A | Dual | Dual | No | 160VA | Chassis Mount | Wire Leads | 103.00mm Dia x 48.00mm W | 52.0mm | 4000Vrms | 3.6 lbs (1.6 kg) |
|
VPM240-31200PWR XFMR TOROIDAL 7500VA CHAS MT |
4,659 |
|
Datasheet | Toroidal Medical, VPM | Bulk | Active | Toroidal | 208V, 240V | Parallel 120V, Series 240V | Parallel 62.4A, Series 31.2A | Dual, Multiple Taps | Dual | No | 7500VA | Chassis Mount | Wire Leads | 330.00mm Dia | 140.00mm | 4000Vrms | 137 lbs (62.1 kg) |
|
F28-040-C2PWR XFMR LAMINATED 1.1VA TH |
2,365 |
|
Datasheet | Split Pack™, Class 2/3, F | Tray | Active | Laminated Core | 115V | Parallel 14V, Series 28V | Parallel 80mA, Series 40mA | Single | Dual | No | 1.1VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 23.80mm | 2500Vrms | 0.17 lb (77.11 g) |
|
F-133PPWR XFMR LAMINATED 1.5VA TH |
4,682 |
|
Datasheet | Single Primary | Box | Active | Laminated Core | 115V | Parallel 15V, Series 30V | Parallel 100mA, Series 50mA | Single | Dual | No | 1.5VA | Through Hole | PC Pin | 35.31mm L x 39.67mm W | 30.15mm | 1500Vrms | 0.219 lb (99.34 g) |
|
|
F20-055-C2PWR XFMR LAMINATED 1.1VA TH |
2,838 |
|
Datasheet | Split Pack™, Class 2/3, F | Tray | Active | Laminated Core | 115V | Parallel 10V, Series 20V | Parallel 110mA, Series 55mA | Single | Dual | No | 1.1VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 23.80mm | 2500Vrms | 0.17 lb (77.11 g) |
|
FS48-050-C2PWR XFMR LAMINATED 2.4VA TH |
2,670 |
|
Datasheet | Split Pack™, Class 2/3, FS | Tube | Active | Laminated Core | 115V, 230V | Parallel 24V, Series 48V | Parallel 100mA, Series 50mA | Dual | Dual | No | 2.4VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 30.15mm | 4200Vrms | 0.25 lb (113.4 g) |
|
F48-023PWR XFMR LAMINATED 1.1VA TH |
3,313 |
|
Datasheet | Split Pack™, Class 2/3, F | Box | Active | Laminated Core | 115V | Parallel 24V, Series 48V | Parallel 46mA, Series 23mA | Single | Dual | No | 1.1VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 23.80mm | 2500Vrms | 0.17 lb (77.11 g) |
|
F28-420-C2-BPWR XFMR LAMINATED 12VA TH |
3,007 |
|
Datasheet | Split Pack™, Class 2/3, F | Tube | Active | Laminated Core | 115V | Parallel 14V, Series 28V | Parallel 840mA, Series 420mA | Single | Dual | No | 12VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 36.50mm | 2500Vrms | 0.7 lb (317.51 g) |
|

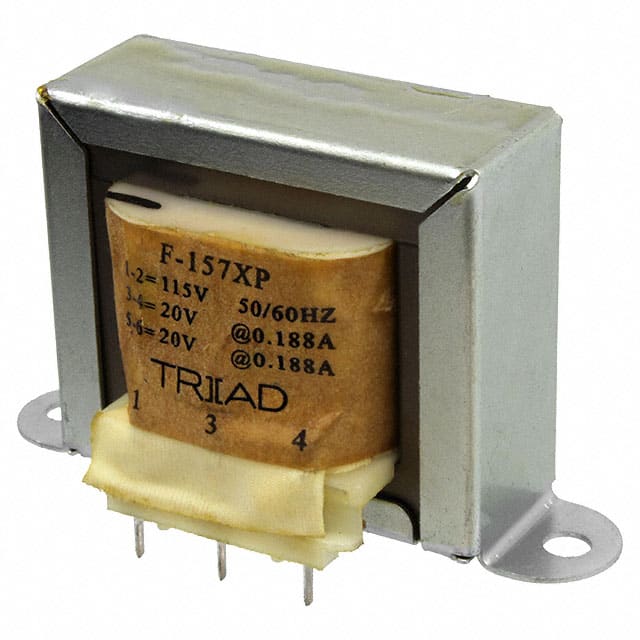

F-157XPPWR XFMR LAMINATED 7.5VA CHAS MT |
3,565 |
|
Datasheet | Single Primary | Box | Active | Laminated Core | 115V | Parallel 20V, Series 40V | Parallel 376mA, Series 188mA | Single | Dual | No | 7.5VA | Chassis Mount | PC Pin | 71.42mm L x 37.29mm W | 41.28mm | 1500Vrms | 0.657 lb (298.01 g) |
