Power Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F24-045PWR XFMR LAMINATED 1.1VA TH |
1,858 |
|
Datasheet | Split Pack™, Class 2/3, F | Box | Active | Laminated Core | 115V | Parallel 12V, Series 24V | Parallel 90mA, Series 45mA | Single | Dual | No | 1.1VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 23.80mm | 2500Vrms | 0.17 lb (77.11 g) |
|

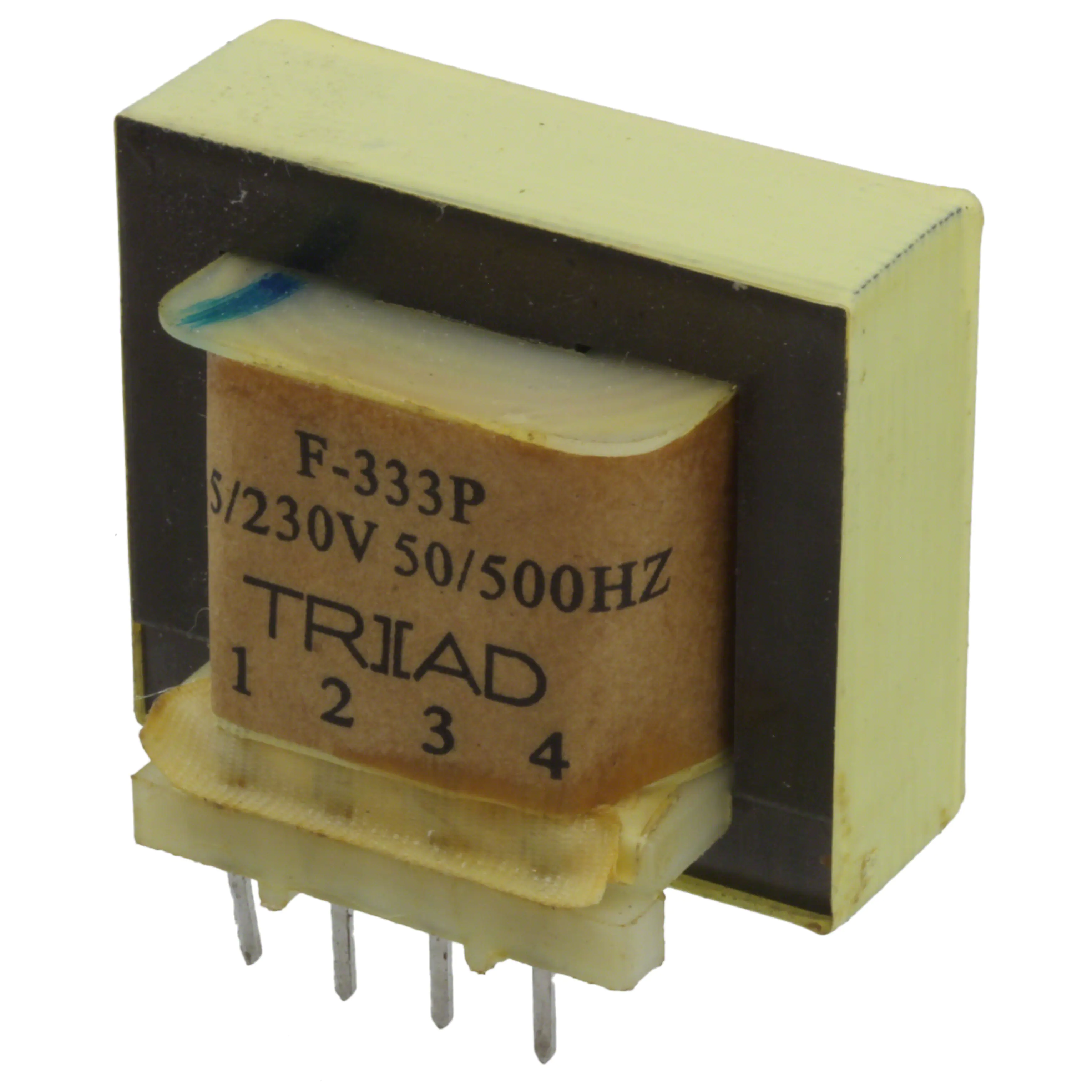

F-333PPWR XFMR LAMINATED 1.5VA TH |
1,812 |
|
Datasheet | Single Primary | Box | Active | Laminated Core | 115V, 230V | Parallel 15V, Series 30V | Parallel 100mA, Series 50mA | Dual | Dual | No | 1.5VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 28.58mm | 1500Vrms | 0.25 lb (113.4 g) |
|
|
F12-500PWR XFMR LAMINATED 6VA TH |
2,587 |
|
Datasheet | Split Pack™, Class 2/3, F | Box | Active | Laminated Core | 115V | Parallel 6.3V, Series 12.6V | Parallel 1A, Series 500mA | Single | Dual | No | 6VA | Through Hole | PC Pin | 41.28mm L x 33.32mm W | 33.32mm | 2500Vrms | 0.44 lb (199.58 g) |
|
F-3116XPWR XFMR LAMINATED 4.8VA CHAS MT |
4,472 |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V, 230V | 24V | 200mA | Dual | Single | Yes | 4.8VA | Chassis Mount | Wire Leads | 60.32mm L x 38.10mm W | 34.93mm | 1500Vrms | 0.45 lb (204.12 g) |
|
FS36-1000-C2PWR XFMR LAMINATED 36VA TH |
1,126 |
|
Datasheet | Split Pack™, Class 2/3, FS | Tube | Active | Laminated Core | 115V, 230V | Parallel 18V, Series 36V | Parallel 2A, Series 1A | Dual | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.67mm | 4200Vrms | 1.1 lbs (499 g) |
|
|
F36-1000PWR XFMR LAMINATED 36VA TH |
1,432 |
|
Datasheet | Split Pack™, Class 2/3, F | Box | Active | Laminated Core | 115V | Parallel 18V, Series 36V | Parallel 2A, Series 1A | Single | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.70mm | 2500Vrms | 1.1 lbs (499 g) |
|
|
F28-1300PWR XFMR LAMINATED 36VA TH |
1,584 |
|
Datasheet | Split Pack™, Class 2/3, F | Box | Active | Laminated Core | 115V | Parallel 14V, Series 28V | Parallel 2.6A, Series 1.3A | Single | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.67mm | 2500Vrms | 1.1 lbs (499 g) |
|
F-373PPWR XFMR LAMINATED 24VA TH |
3,069 |
|
Datasheet | Single Primary | Box | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 2.4A, Series 1.2A | Dual | Dual | No | 24VA | Through Hole | PC Pin | 41.28mm L x 57.15mm W | 34.93mm | 1500Vrms | 0.832 lb (377.4 g) |
|

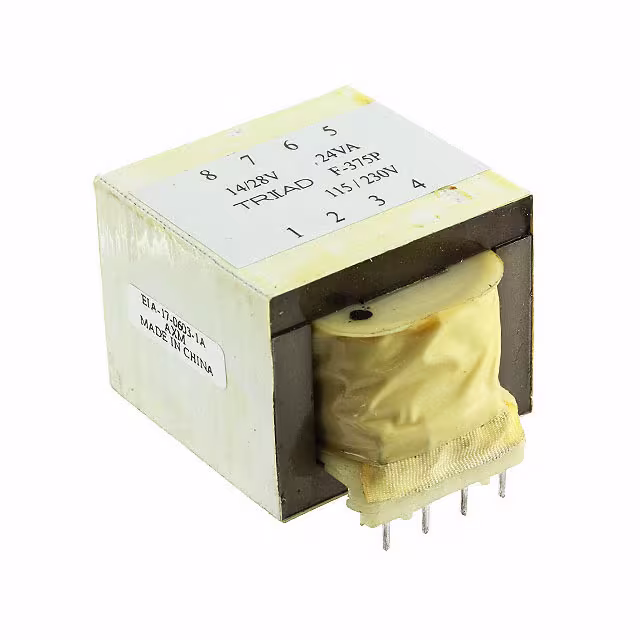

F-375PPWR XFMR LAMINATED 24VA TH |
1,141 |
|
Datasheet | Single Primary | Box | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 1.6A, Series 800mA | Dual | Dual | No | 24VA | Through Hole | PC Pin | 41.28mm L x 57.15mm W | 34.93mm | 1500Vrms | 0.832 lb (377.4 g) |
|

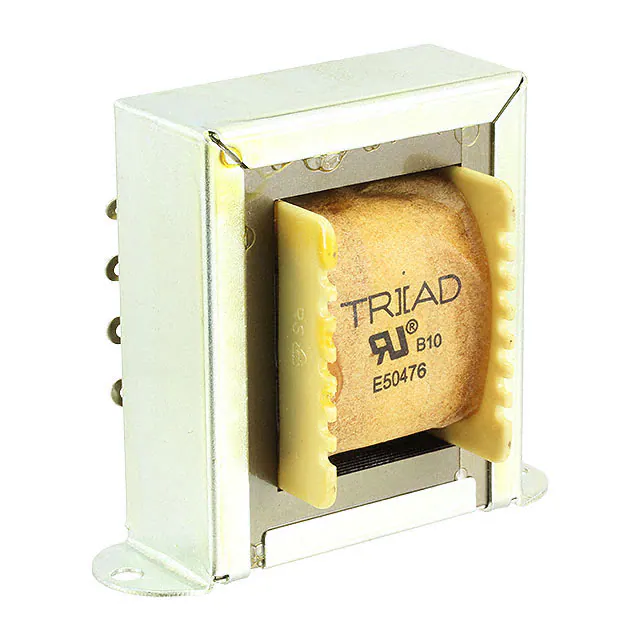

F-212ZPWR XFMR LAMINATED 24VA CHAS MT |
1,319 |
|
Datasheet | Multiple Secondary | Box | Active | Laminated Core | 115V, 230V | Parallel 24V, Series 48V | Parallel 1A, Series 500mA | Single | Dual | No | 24VA | Chassis Mount | Solder Lug | 79.38mm L x 50.80mm W | 69.85mm | 1500Vrms | 1.1 lbs (499 g) |
