Power Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

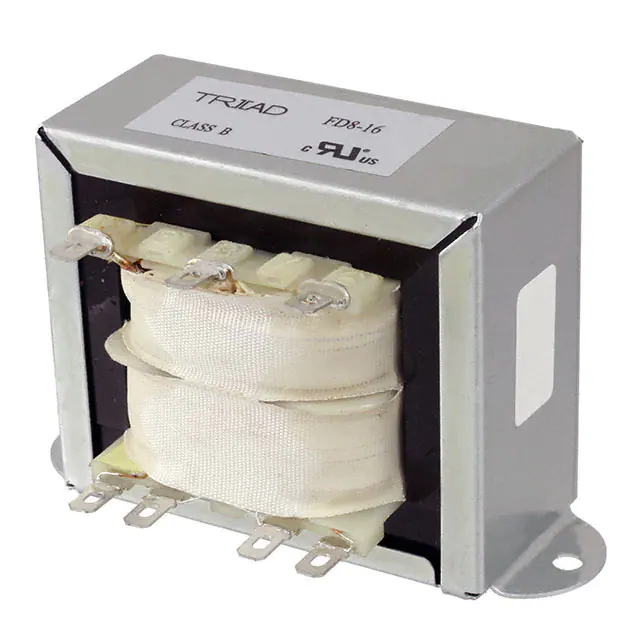

FD8-16PWR XFMR LAMINATED 100VA CHAS MT |
4,006 |
|
Datasheet | Quick Pack | Box | Active | Laminated Core | 115V, 230V | 16V | 6.25A | Dual | Single | Yes | 100VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 102.39mm L x 57.15mm W | 65.07mm | 2500VAC | 2.8 lbs (1.3 kg) |
|
VPS10-13000PWR XFMR LAMINATED 130VA CHAS MT |
3,610 |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 26A, Series 13A | Dual | Dual | No | 130VA | Chassis Mount | Solder, Quick Connect | 71.37mm L x 68.33mm W | 85.73mm | 4000Vrms | 4.1 lbs (1.9 kg) |
|

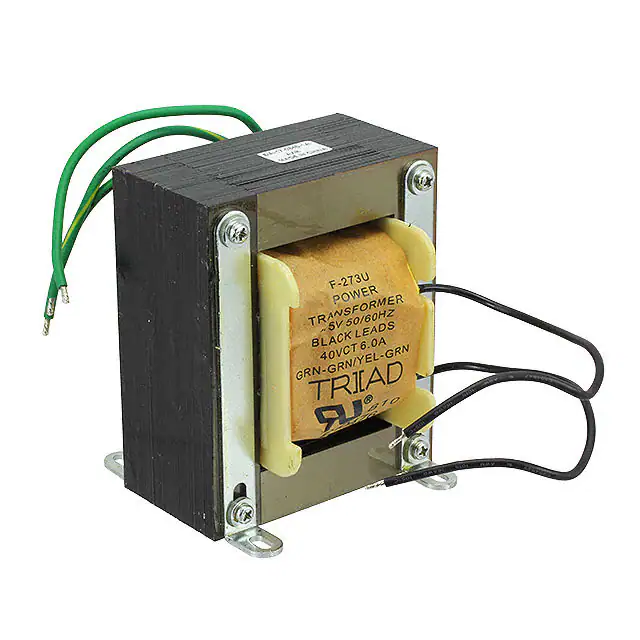

F-273UPWR XFMR LAMINATED 240VA CHAS MT |
4,548 |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V | 40V | 6A | Single | Single | Yes | 240VA | Chassis Mount | Wire Leads | 95.25mm L x 101.60mm W | 114.30mm | 1500Vrms | 10 lbs (4.5 kg) |
|
VPM12-2080PWR XFMR TOROIDAL 25VA CHAS MT |
4,016 |
|
Datasheet | Toroidal Medical, VPM | Box | Active | Toroidal | 100V, 120V, 220V, 240V | Parallel 6V, Series 12V | Parallel 4.16A, Series 2.08A | Dual, Multiple Taps | Dual | No | 25VA | Chassis Mount | Wire Leads | 84.00mm Dia | 37.00mm | 4000Vrms | 1.1 lbs (499 g) |
|
|
VPM24-1040PWR XFMR TOROIDAL 25VA CHAS MT |
2,630 |
|
Datasheet | Toroidal Medical, VPM | Box | Active | Toroidal | 100V, 120V, 220V, 240V | Parallel 12V, Series 24V | Parallel 2.08A, Series 1.04A | Dual, Multiple Taps | Dual | No | 25VA | Chassis Mount | Wire Leads | 84.00mm Dia | 37.00mm | 4000Vrms | 1.1 lbs (499 g) |
|
|
VPS230-570PWR XFMR LAMINATED 130VA CHAS MT |
3,597 |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | Parallel 115V, Series 230V | Parallel 1.14A, Series 570mA | Dual | Dual | No | 130VA | Chassis Mount | Solder, Quick Connect | 60.45mm L x 68.33mm W | 85.85mm | 4000Vrms | 4.1 lbs (1.9 kg) |
|
|
VPS36-3600PWR XFMR LAMINATED 130VA CHAS MT |
4,094 |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | Parallel 18V, Series 36V | Parallel 7.2A, Series 3.6A | Dual | Dual | No | 130VA | Chassis Mount | Solder, Quick Connect | 71.37mm L x 68.33mm W | 85.85mm | 4000Vrms | 4.1 lbs (1.9 kg) |
|

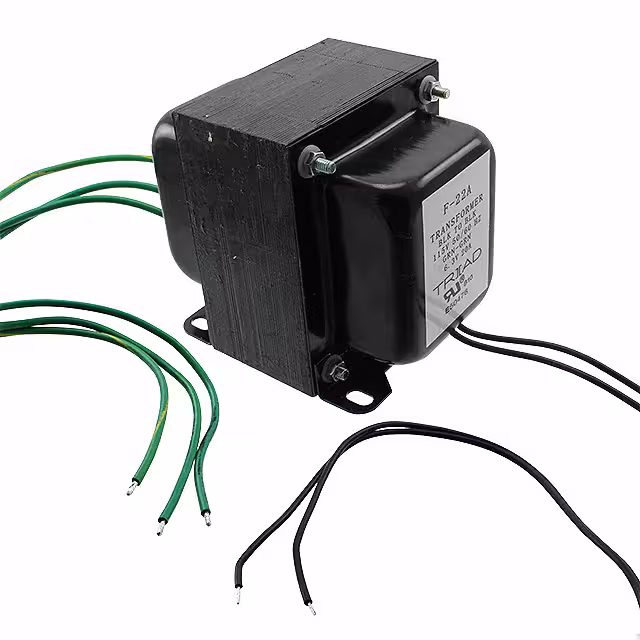

F-22APWR XFMR LAMINATED 126VA CHAS MT |
2,540 |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V | 6.3V | 20A | Single | Single | Yes | 126VA | Chassis Mount | Wire Leads | 83.33mm L x 104.77mm W | 98.43mm | 2000Vrms | 7 lbs (3.2 kg) |
|

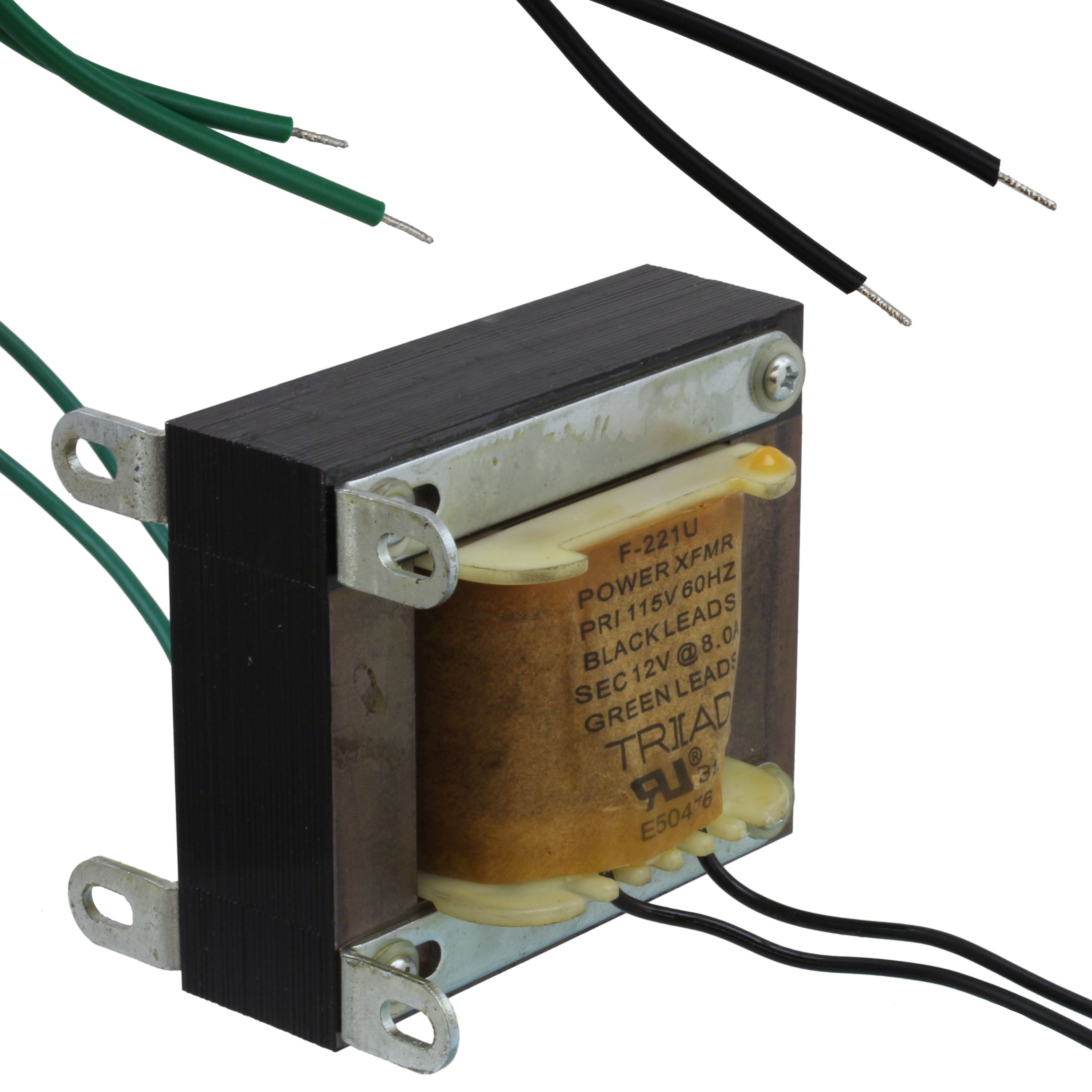

F-221UPWR XFMR LAMINATED 96VA CHAS MT |
1,078 |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V | 12V | 8A | Single | Single | No | 96VA | Chassis Mount | Wire Leads | 79.38mm L x 63.50mm W | 96.82mm | 1500Vrms | 4 lbs (1.8 kg) |
|

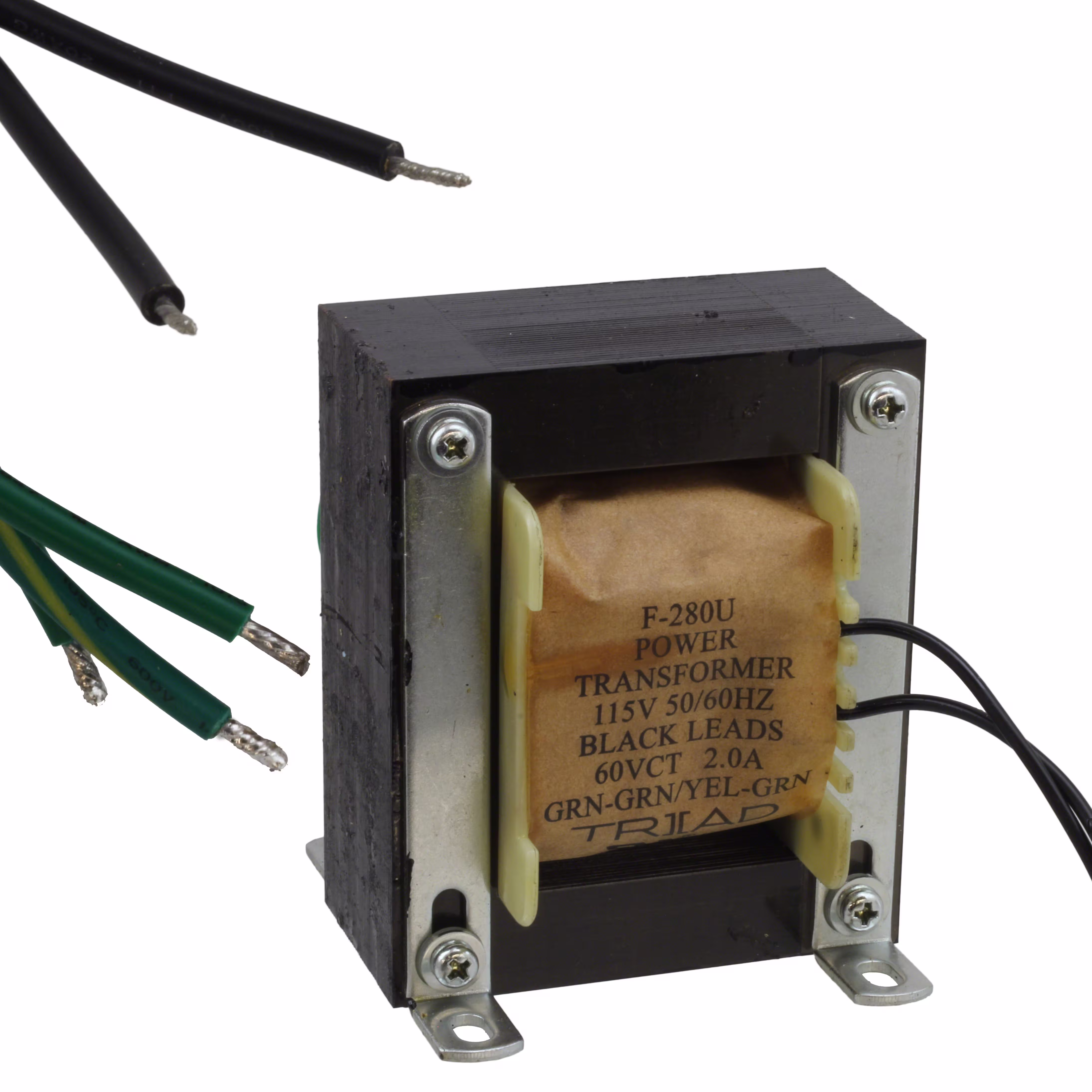

F-280UPWR XFMR LAMINATED 120VA CHAS MT |
1,605 |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V | 60V | 2A | Single | Single | Yes | 120VA | Chassis Mount | Wire Leads | 85.73mm L x 79.38mm W | 95.25mm | 1500Vrms | 5.6 lbs (2.5 kg) |
