Power Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

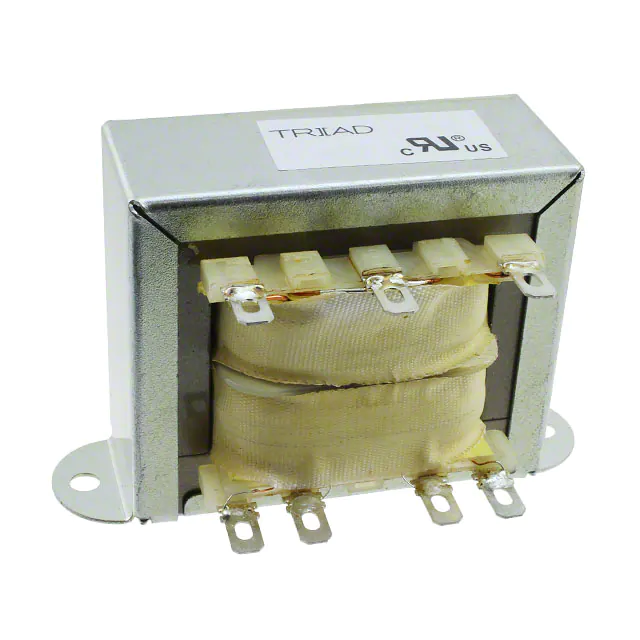

FD7-36PWR XFMR LAMINATED 56VA CHAS MT |
1,931 |
|
Datasheet | Quick Pack | Box | Active | Laminated Core | 115V, 230V | 36V | 1.5A | Dual | Single | Yes | 56VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 93.65mm L x 46.02mm W | 57.15mm | 2500VAC | 1.7 lbs (771.1 g) |
|

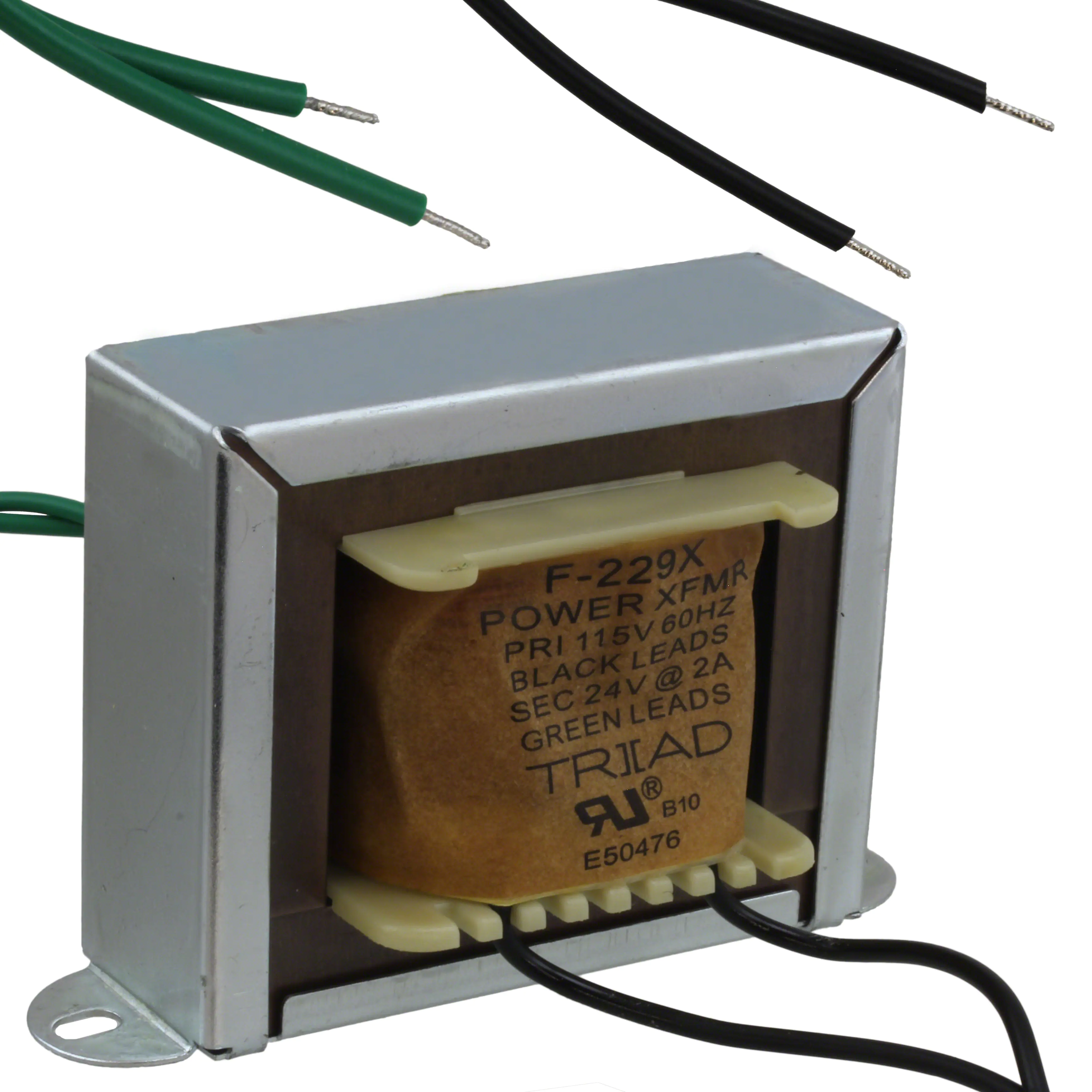

F-229XPWR XFMR LAMINATED 48VA CHAS MT |
4,586 |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V | 24V | 2A | Single | Single | No | 48VA | Chassis Mount | Wire Leads | 101.60mm L x 50.80mm W | 65.07mm | 1500Vrms | 2.3 lbs (1 kg) |
|
F-213ZPWR XFMR LAMINATED 48VA CHAS MT |
4,130 |
|
Datasheet | Control Transformers | Box | Active | Laminated Core | 115V, 230V | Parallel 24V, Series 48V | Parallel 2A, Series 1A | Single | Dual | No | 48VA | Chassis Mount | Solder Lug | 92.07mm L x 60.32mm W | 79.38mm | 1500Vrms | 2.3 lbs (1 kg) |
|

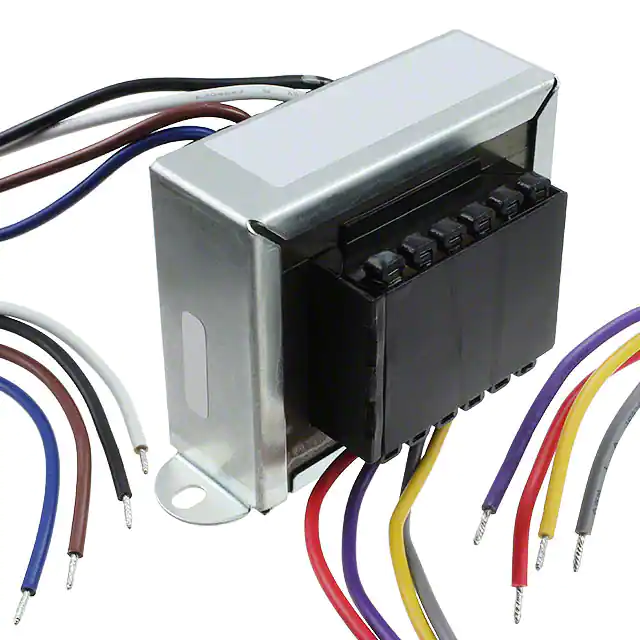

VPL36-1400PWR XFMR LAMINATED 50.0VA CHAS |
2,977 |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | 36V | 1.389A | Dual | Dual | No | 50.0VA | Chassis Mount | Wire Leads | 57.15mm L x 101.6mm W | 65.09mm | 3500Vrms | 2.3 lbs (1 kg) |
|
VPL20-2500PWR XFMR LAMINATED 50.0VA CHAS |
4,554 |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | 20V | 2.5A | Dual | Dual | No | 50.0VA | Chassis Mount | Wire Leads | 57.15mm L x 101.6mm W | 65.09mm | 3500Vrms | 2.3 lbs (1 kg) |
|

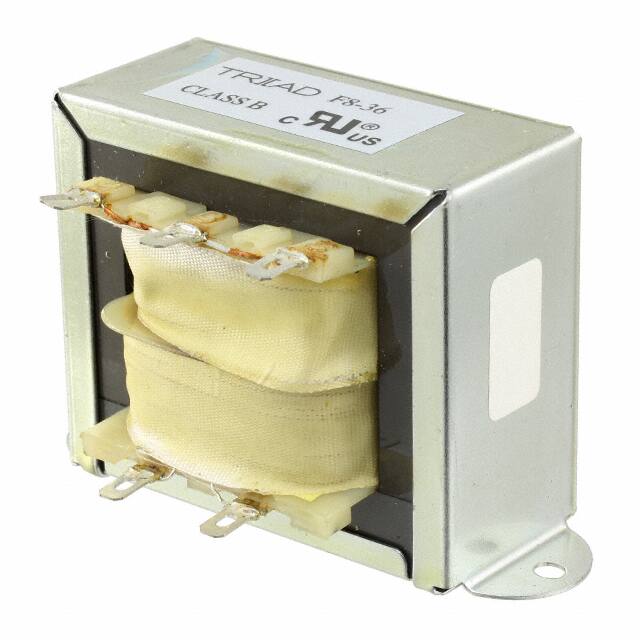

F8-36PWR XFMR LAMINATED 100VA CHAS MT |
4,705 |
|
Datasheet | Quick Pack | Box | Active | Laminated Core | 115V | 36V | 2.8A | Single | Single | Yes | 100VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 102.39mm L x 57.15mm W | 65.07mm | 2500VAC | 2.8 lbs (1.3 kg) |
|

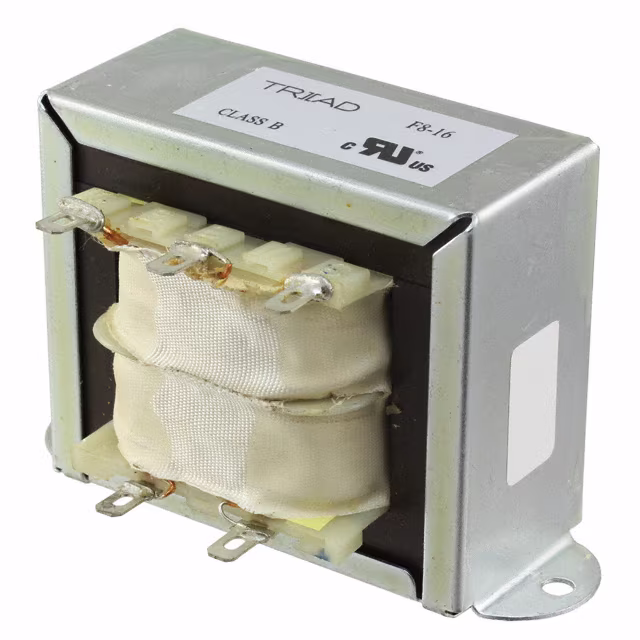

F8-16PWR XFMR LAMINATED 100VA CHAS MT |
1,361 |
|
Datasheet | Quick Pack | Box | Active | Laminated Core | 115V | 16V | 6.25A | Single | Single | Yes | 100VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 102.39mm L x 57.15mm W | 65.07mm | 2500VAC | 2.8 lbs (1.3 kg) |
|
VPL28-2000PWR XFMR LAMINATED 56.0VA CHAS |
1,868 |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | 28V | 2A | Dual | Dual | No | 56.0VA | Chassis Mount | Wire Leads | 66.68mm L x 65.09mm W | 77.79mm | 3500Vrms | 2.7 lbs (1.2 kg) |
|

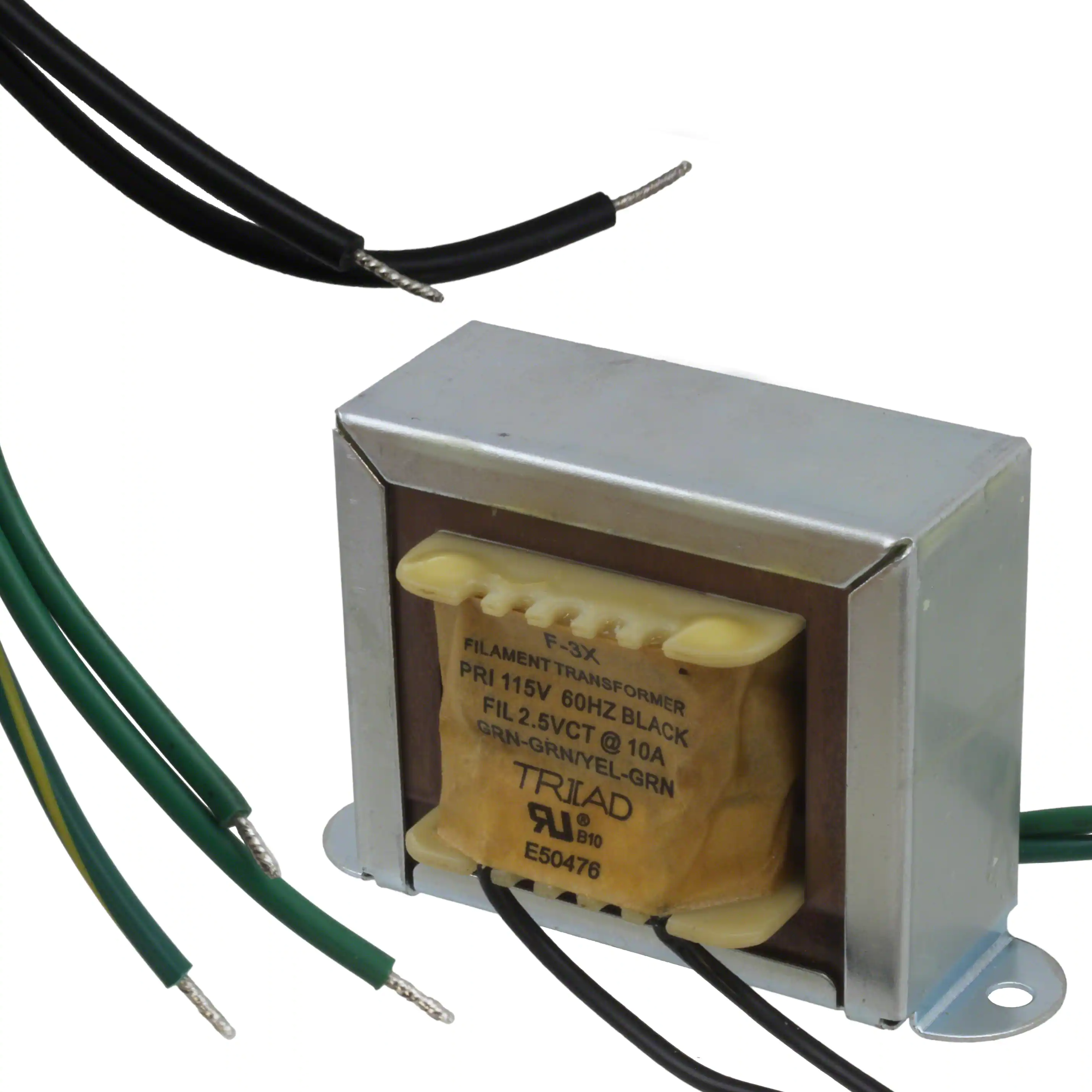

F-3XPWR XFMR LAMINATED 25VA CHAS MT |
2,247 |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V | 2.5V | 10A | Single | Single | Yes | 25VA | Chassis Mount | Wire Leads | 95.25mm L x 53.97mm W | 57.94mm | 3000Vrms | 1.7 lbs (771.1 g) |
|
F-18XPWR XFMR LAMINATED 37.8VA CHAS |
1,686 |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V | 6.3V | 6A | Single | Single | Yes | 37.8VA | Chassis Mount | Wire Leads | 101.60mm L x 57.15mm W | 65.86mm | 1500Vrms | 2.3 lbs (1 kg) |
