Power Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VPP28-1060PWR XFMR LAMINATED 30VA TH |
2,755 |
|
Datasheet | PC Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 2.12A, Series 1.06A | Dual | Dual | No | 30VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.67mm | 4000Vrms | 1.2 lbs (544.3 g) |
|
VPL10-2500PWR XFMR LAMINATED 25.0VA CHAS |
1,303 |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | 10V | 2.5A | Dual | Dual | No | 25.0VA | Chassis Mount | Wire Leads | 53.98mm L x 82.55mm W | 49.22 mm | 3500Vrms | 1.3 lbs (589.7 g) |
|

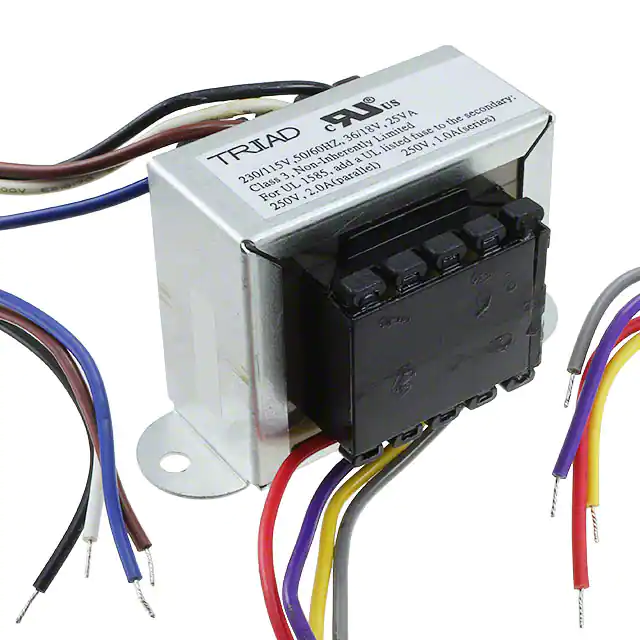

VPL36-700PWR XFMR LAMINATED 25.0VA CHAS |
1,450 |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | 36V | 700mA | Dual | Dual | No | 25.0VA | Chassis Mount | Wire Leads | 57.15mm L x 101.6mm W | 49.22 mm | 3500Vrms | 1.3 lbs (589.7 g) |
|
VPL16-1600PWR XFMR LAMINATED 25.0VA CHAS |
4,882 |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | 16V | 1.57A | Dual | Dual | No | 25.0VA | Chassis Mount | Wire Leads | 53.98mm L x 82.55mm W | 49.22 mm | 3500Vrms | 1.3 lbs (589.7 g) |
|
TCT40-05E07ABPWR XFMR LAMINATED 40VA CHAS MT |
1,296 |
|
Datasheet | Class 2, TCT | Box | Active | Laminated Core | 120V, 208V, 240V | 24V | 1.67A | Single, Multiple Taps | Single | No | 40VA | Chassis Mount | Solder, Quick Connect | 92.46mm L x 56.67mm W | 57.40mm | 1500Vrms | 1.5 lbs (680.4 g) |
|
|
TCT40-02E07ABPWR XFMR LAMINATED 40VA CHAS MT |
3,504 |
|
Datasheet | Class 2, TCT | Box | Active | Laminated Core | 240V | 24V | 1.67A | Single | Single | No | 40VA | Chassis Mount | Solder, Quick Connect | 92.46mm L x 56.67mm W | 57.40mm | 1500Vrms | 1.5 lbs (680.4 g) |
|

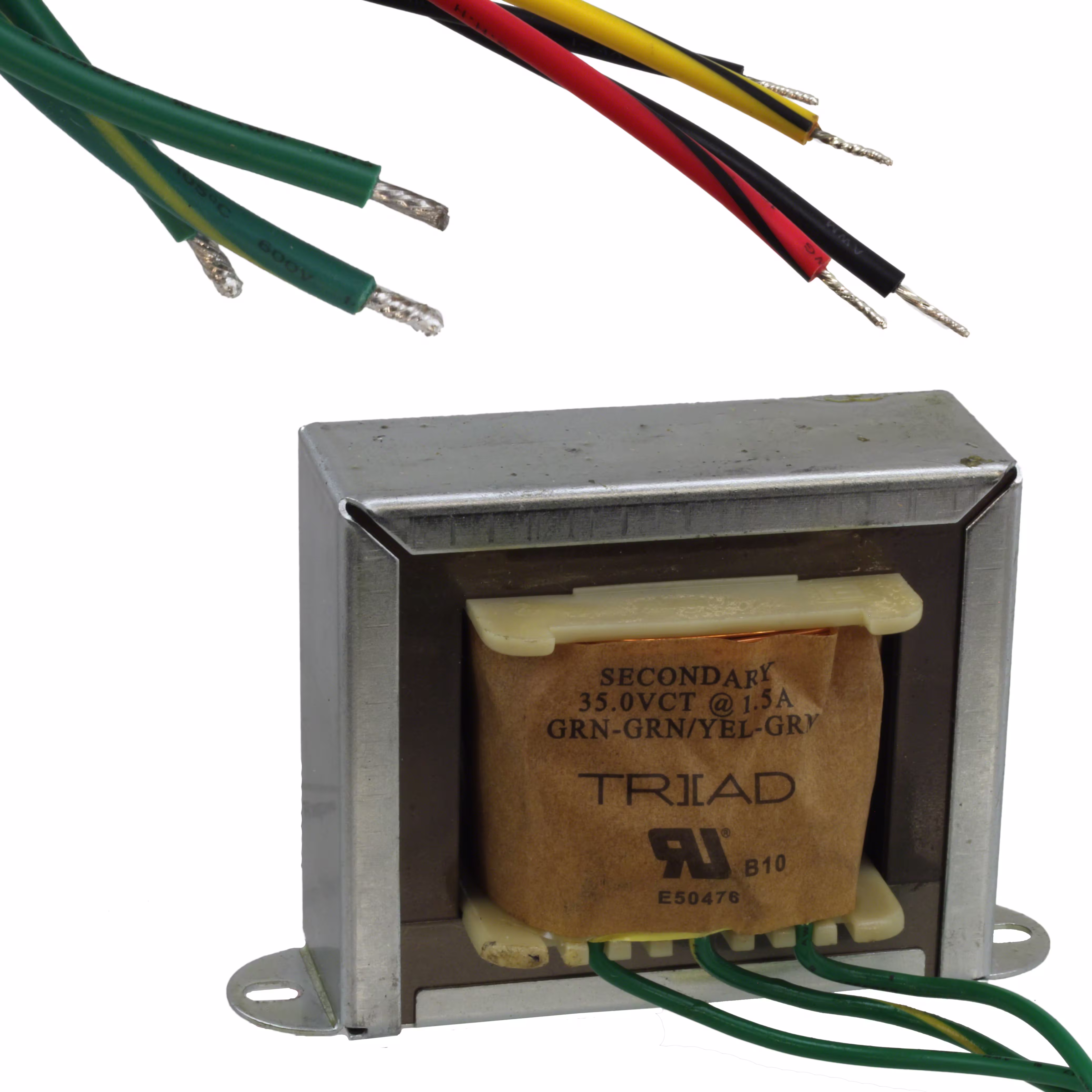

F-354XPWR XFMR LAMINATED 52.5VA CHAS |
2,166 |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V, 230V | 35V | 1.5A | Dual | Single | Yes | 52.5VA | Chassis Mount | Wire Leads | 101.60mm L x 57.15mm W | 65.86mm | 1500Vrms | 2.2 lbs (997.9 g) |
|

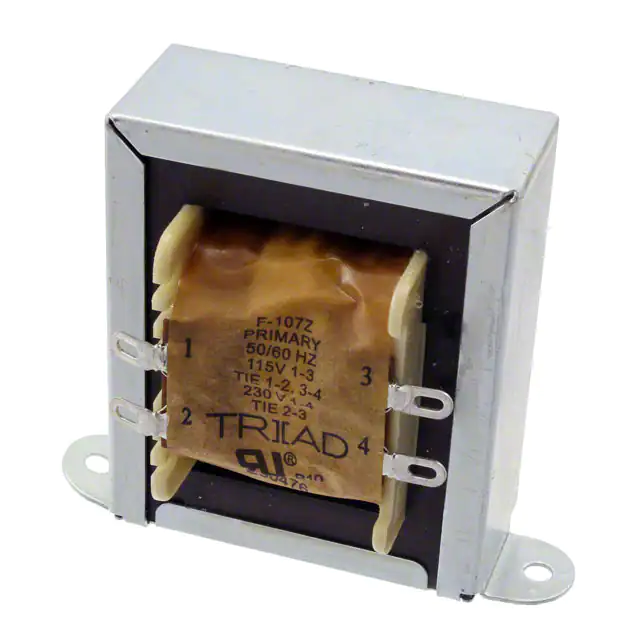

F-107ZPWR XFMR LAMINATED 48VA CHAS MT |
3,020 |
|
Datasheet | Control Transformers | Box | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 4A, Series 2A | Dual | Dual | No | 48VA | Chassis Mount | Solder Lug | 92.07mm L x 60.32mm W | 85.73mm | 1500Vrms | 2.5 lbs (1.1 kg) |
|
VPP12-4400PWR XFMR LAMINATED 56VA TH |
1,577 |
|
Datasheet | PC Mount: World Series™ | Bulk | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 8.8A, Series 4.4A | Dual | Dual | No | 56VA | Through Hole | PC Pin | 76.20mm L x 63.50mm W | 46.02mm | 4000Vrms | 1.7 lbs (771.1 g) |
|
FS28-1300-C2PWR XFMR LAMINATED 36VA TH |
1,320 |
|
Datasheet | Split Pack™, Class 2/3, FS | Tube | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 2.6A, Series 1.3A | Dual | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.67mm | 4200Vrms | 1.1 lbs (499 g) |
