Power Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

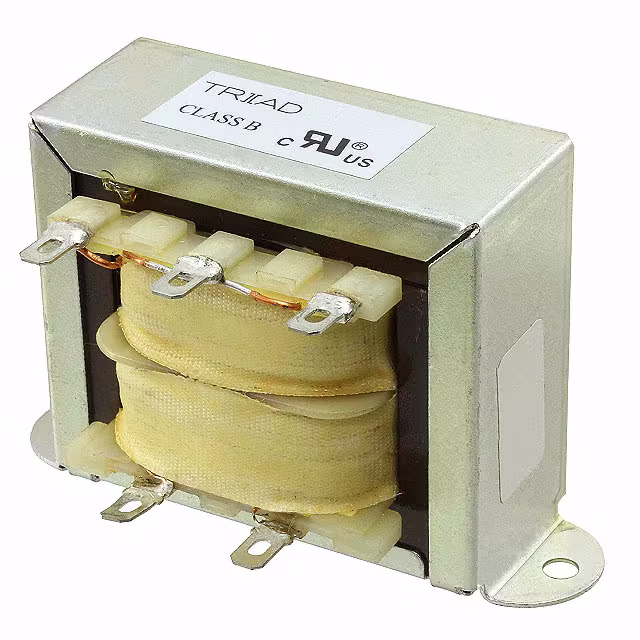

F7-16PWR XFMR LAMINATED 56VA CHAS MT |
4,700 |
|
Datasheet | Quick Pack | Box | Active | Laminated Core | 115V | 16V | 3.5A | Single | Single | Yes | 56VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 93.65mm L x 46.02mm W | 57.15mm | 2500VAC | 1.7 lbs (771.1 g) |
|

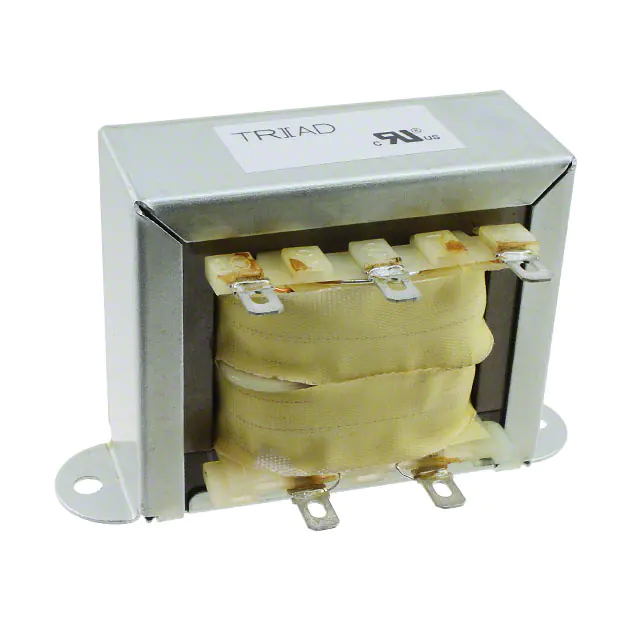

F7-20PWR XFMR LAMINATED 56VA CHAS MT |
2,552 |
|
Datasheet | Quick Pack | Box | Active | Laminated Core | 115V | 20V | 2.8A | Single | Single | Yes | 56VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 93.65mm L x 46.02mm W | 57.15mm | 2500VAC | 1.7 lbs (771.1 g) |
|
VPP16-3500PWR XFMR LAMINATED 56VA TH |
1,125 |
|
Datasheet | PC Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | Parallel 8V, Series 16V | Parallel 7A, Series 3.5A | Dual | Dual | No | 56VA | Through Hole | PC Pin | 76.20mm L x 63.50mm W | 46.02mm | 4000Vrms | 1.7 lbs (771.1 g) |
|
|
VPP10-5600PWR XFMR LAMINATED 56VA TH |
2,504 |
|
Datasheet | PC Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 11.2A, Series 5.6A | Dual | Dual | No | 56VA | Through Hole | PC Pin | 76.20mm L x 63.50mm W | 46.02mm | 4000Vrms | 1.7 lbs (771.1 g) |
|
TCT50-03E07AEPWR XFMR LAMINATED 50VA CHAS MT |
2,256 |
|
Datasheet | Class 2, TCT | Box | Active | Laminated Core | 120V | 12V | 4.17A | Single | Single | No | 50VA | Chassis Mount | Solder, Quick Connect | 92.46mm L x 56.67mm W | 57.40mm | 1500Vrms | 2 lbs (907.2 g) |
|
TCT50-06E07ABPWR XFMR LAMINATED 50VA CHAS MT |
2,623 |
|
Datasheet | Class 2, TCT | Box | Active | Laminated Core | 120V, 240V | 24V | 2.08A | Single, Multiple Taps | Single | No | 50VA | Chassis Mount | Solder, Quick Connect | 92.46mm L x 56.67mm W | 57.40mm | 1500Vrms | 2 lbs (907.2 g) |
|
VPS24-1800PWR XFMR LAMINATED 43VA CHAS MT |
1,345 |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 3.6A, Series 1.8A | Dual | Dual | No | 43VA | Chassis Mount | Solder, Quick Connect | 58.67mm L x 50.80mm W | 68.33mm | 4000Vrms | 1.6 lbs (725.7 g) |
|
|
VPS20-2200PWR XFMR LAMINATED 43VA CHAS MT |
2,616 |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 4.4A, Series 2.2A | Dual | Dual | No | 43VA | Chassis Mount | Solder, Quick Connect | 74.68mm L x 50.80mm W | 74.68mm | 4000Vrms | 1.6 lbs (725.7 g) |
|
|
VPS230-190PWR XFMR LAMINATED 43VA CHAS MT |
2,407 |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | Parallel 115V, Series 230V | Parallel 380mA, Series 190mA | Dual | Dual | No | 43VA | Chassis Mount | Solder, Quick Connect | 58.67mm L x 50.80mm W | 68.33mm | 4000Vrms | 1.6 lbs (725.7 g) |
|

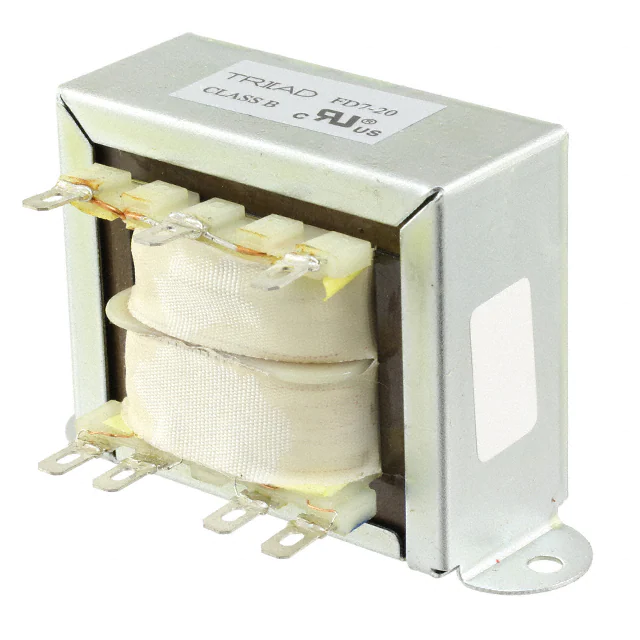

FD7-20PWR XFMR LAMINATED 56VA CHAS MT |
4,164 |
|
Datasheet | Quick Pack | Box | Active | Laminated Core | 115V, 230V | 20V | 2.8A | Dual | Single | Yes | 56VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 93.65mm L x 46.02mm W | 57.15mm | 2500VAC | 1.7 lbs (771.1 g) |
