Power Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F36-65PWR XFMR LAMINATED 2.5VA TH |
1,225 |
|
Datasheet | Split Pack™, Class 2/3, F | Box | Active | Laminated Core | 115V | Parallel 18V, Series 36V | Parallel 130mA, Series 65mA | Single | Dual | No | 2.5VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 30.15mm | 2500Vrms | 0.25 lb (113.4 g) |
|
FP34-75PWR XFMR LAMINATED 2.5VA TH |
1,065 |
|
Datasheet | Flat Pack™ | Box | Active | Laminated Core | 115V, 230V | Parallel 17V, Series 34V | Parallel 150mA, Series 75mA | Dual | Dual | No | 2.5VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 16.51mm | 2000Vrms | 0.313 lb (141.97 g) |
|
F24-100PWR XFMR LAMINATED 2.5VA TH |
2,624 |
|
Datasheet | Split Pack™, Class 2/3, F | Box | Active | Laminated Core | 115V | Parallel 12V, Series 24V | Parallel 200mA, Series 100mA | Single | Dual | No | 2.5VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 30.15mm | 2500Vrms | 0.25 lb (113.4 g) |
|
F3-24PWR XFMR LAMINATED 2.4VA CHAS MT |
4,507 |
|
Datasheet | Quick Pack | Bulk | Active | Laminated Core | 115V | 24V | 100mA | Single | Single | Yes | 2.4VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 41.28mm L x 30.15mm W | 30.15mm | 2500VAC | 0.25 lb (113.4 g) |
|
F3-36PWR XFMR LAMINATED 2.4VA CHAS MT |
1,056 |
|
Datasheet | Quick Pack | Bulk | Active | Laminated Core | 115V | 36V | 65mA | Single | Single | Yes | 2.4VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 41.28mm L x 30.15mm W | 30.15mm | 2500VAC | 0.25 lb (113.4 g) |
|

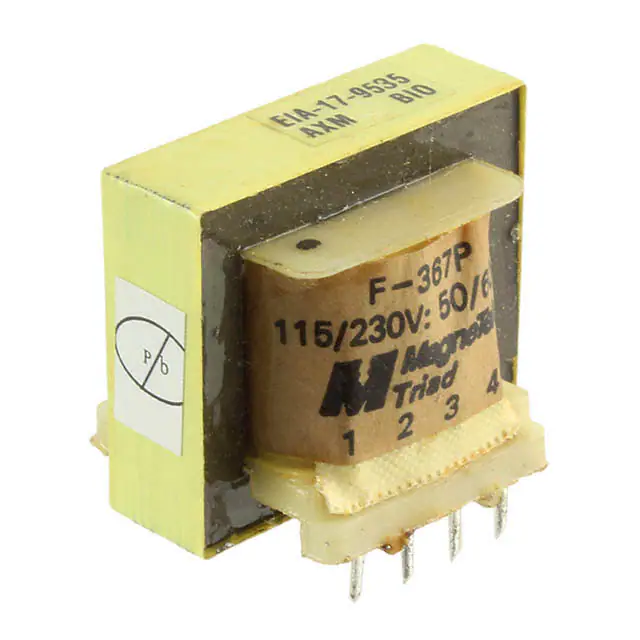

F-367PPWR XFMR LAMINATED 1.5VA TH |
3,403 |
|
Datasheet | Single Primary | Box | Active | Laminated Core | 115V, 230V | Parallel 115V, Series 230V | Parallel 13mA, Series 6.5mA | Dual | Dual | No | 1.5VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 28.58mm | 1500Vrms | 0.25 lb (113.4 g) |
|
TCT3-04E07AEPWR XFMR LAMINATED 2.5VA CHAS MT |
4,742 |
|
Datasheet | Class 2, TCT | Box | Active | Laminated Core | 240V | 12V | 208mA | Single | Single | No | 2.5VA | Chassis Mount | Solder, Quick Connect | 60.00mm L x 42.50mm W | 54.10mm | 1500Vrms | 0.5 lb (226.8 g) |
|
FS24-045PWR XFMR LAMINATED 1.1VA TH |
4,242 |
|
Datasheet | Split Pack™ | Box | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 90mA, Series 45mA | Dual | Dual | No | 1.1VA | Through Hole | PC Pin | 34.93mm L x 28.56mm W | 23.80mm | 2500Vrms | 0.17 lb (77.11 g) |
|
F-113XPWR XFMR LAMINATED 1.8VA CHAS MT |
3,430 |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V | 12V | 150mA | Single | Single | No | 1.8VA | Chassis Mount | Wire Leads | 60.32mm L x 34.93mm W | 34.93mm | 1500Vrms | 0.4 lb (181.44 g) |
|

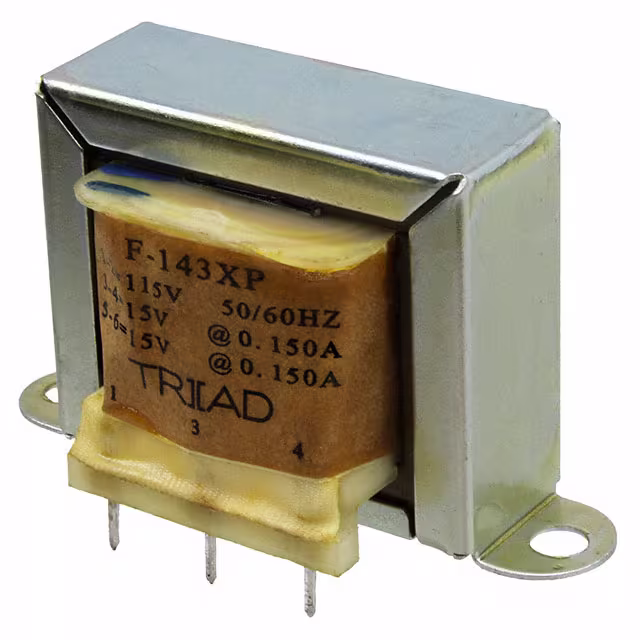

F-143XPPWR XFMR LAMINATED 4.5VA CHAS MT |
4,727 |
|
Datasheet | Single Primary | Box | Active | Laminated Core | 115V | Parallel 15V, Series 30V | Parallel 300mA, Series 150mA | Single | Dual | No | 4.5VA | Chassis Mount | PC Pin | 60.32mm L x 31.75mm W | 36.50mm | 1500Vrms | 0.469 lb (212.73 g) |
