Power Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F-301XPWR XFMR LAMINATED 7.5VA CHAS MT |
2,722 |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V, 230V | 2.5V | 3A | Dual | Single | Yes | 7.5VA | Chassis Mount | Wire Leads | 71.45mm L x 41.28mm W | 41.28mm | 1500Vrms | 0.68 lb (308.44 g) |
|

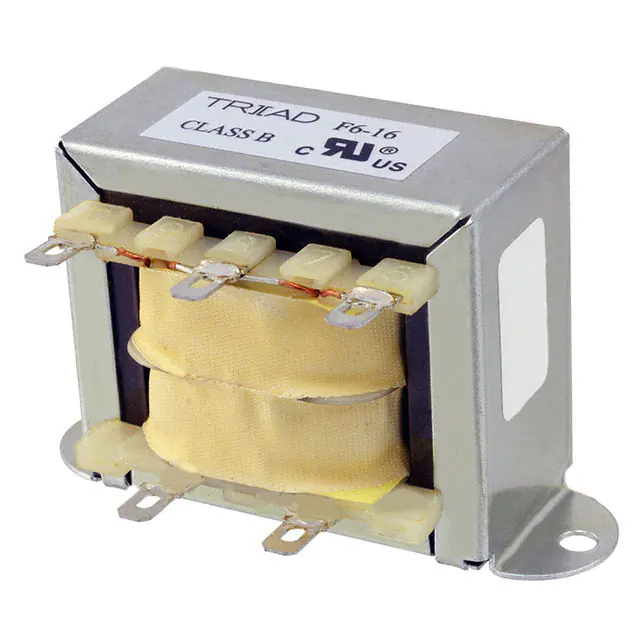

F6-16PWR XFMR LAMINATED 30VA CHAS MT |
3,056 |
|
Datasheet | Quick Pack | Box | Active | Laminated Core | 115V | 16V | 2A | Single | Single | Yes | 30VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 82.55mm L x 42.85mm W | 49.20mm | 2500VAC | 1.1 lbs (499 g) |
|

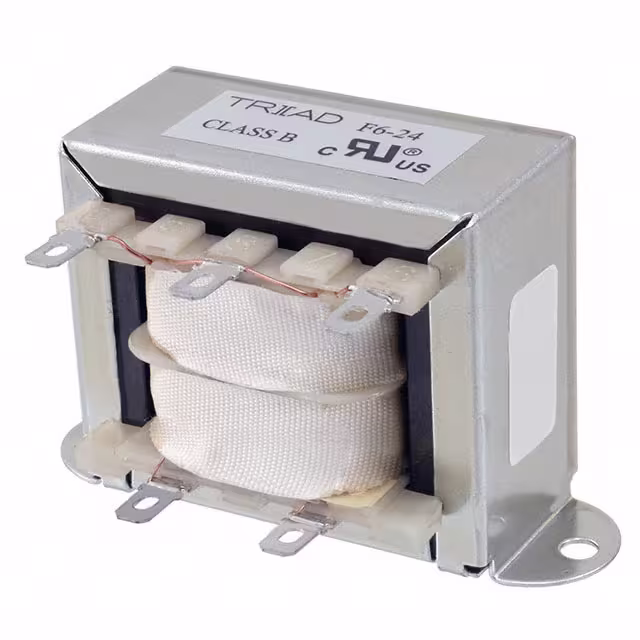

F6-24PWR XFMR LAMINATED 30VA CHAS MT |
1,016 |
|
Datasheet | Quick Pack | Box | Active | Laminated Core | 115V | 24V | 1.25A | Single | Single | Yes | 30VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 82.55mm L x 42.85mm W | 49.20mm | 2500VAC | 1.1 lbs (499 g) |
|

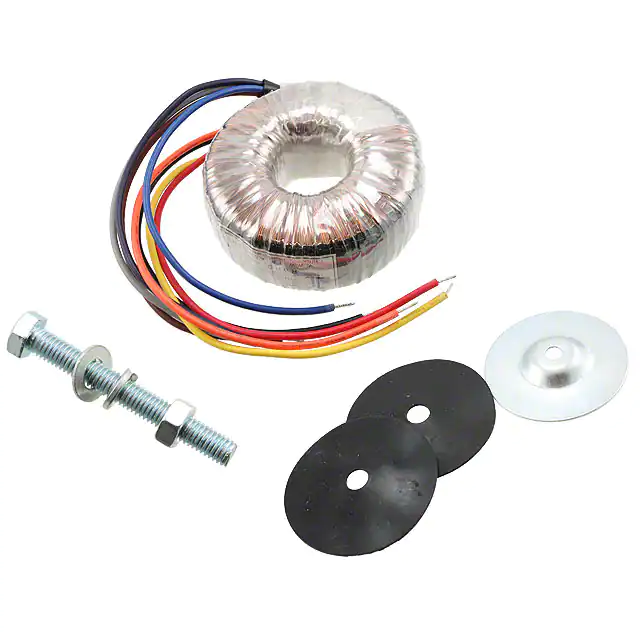

VPT48-520PWR XFMR TOROIDAL 25VA CHAS MT |
4,255 |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Toroidal | 115V, 230V | Parallel 24V, Series 48V | Parallel 1.04A, Series 520mA | Dual | Dual | No | 25VA | Chassis Mount | Wire Leads | 71.00mm Dia x 32.00mm W | 34.0mm | 4000Vrms | 0.882 lb (400.07 g) |
|

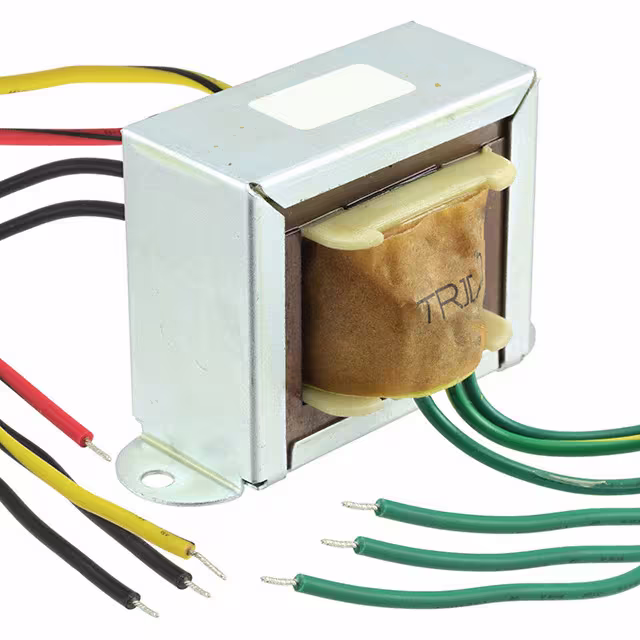

F-345XPWR XFMR LAMINATED 24VA CHAS MT |
1,336 |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V, 230V | 24V | 1A | Dual | Single | Yes | 24VA | Chassis Mount | Wire Leads | 84.12mm L x 50.80mm W | 49.20mm | 1500Vrms | 1.3 lbs (589.7 g) |
|

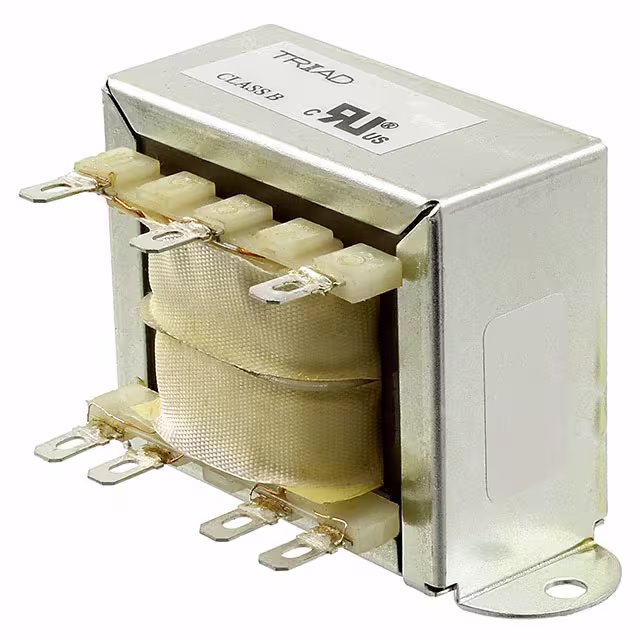

FD6-120PWR XFMR LAMINATED 30VA CHAS MT |
1,686 |
|
Datasheet | Quick Pack | Box | Active | Laminated Core | 115V, 230V | 120V | 250mA | Dual | Single | Yes | 30VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 82.55mm L x 42.85mm W | 49.20mm | 2500VAC | 1.1 lbs (499 g) |
|

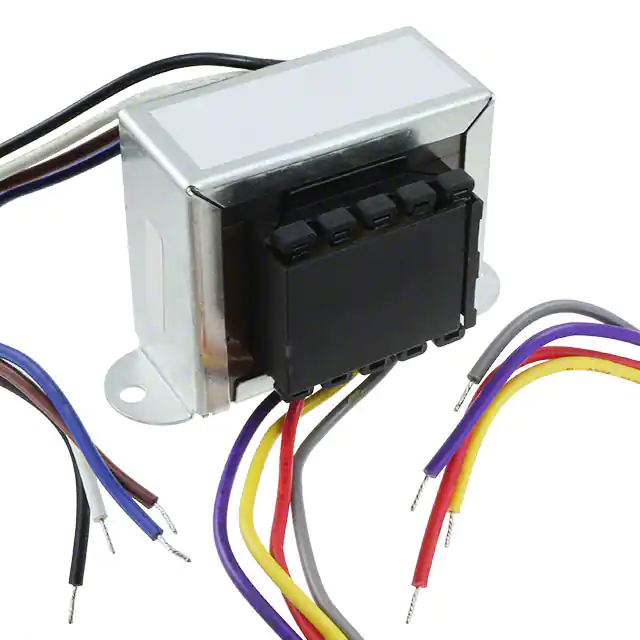

VPL2-10000PWR XFMR LAMINATED 25.0VA CHAS |
3,717 |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | 2.5V | 10A | Dual | Dual | No | 25.0VA | Chassis Mount | Wire Leads | 53.98mm L x 82.55mm W | 49.22 mm | 3500Vrms | 1.3 lbs (589.7 g) |
|

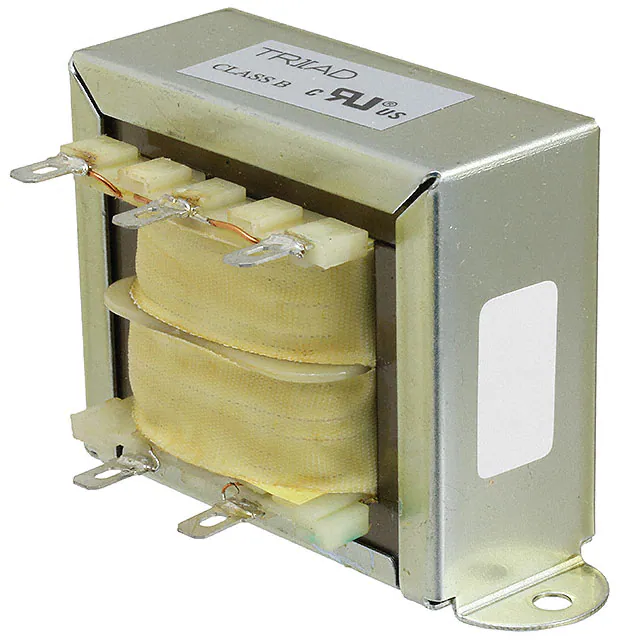

F7-24PWR XFMR LAMINATED 56VA CHAS MT |
2,900 |
|
Datasheet | Quick Pack | Box | Active | Laminated Core | 115V | 24V | 2.4A | Single | Single | Yes | 56VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 93.65mm L x 46.02mm W | 57.15mm | 2500VAC | 1.7 lbs (771.1 g) |
|

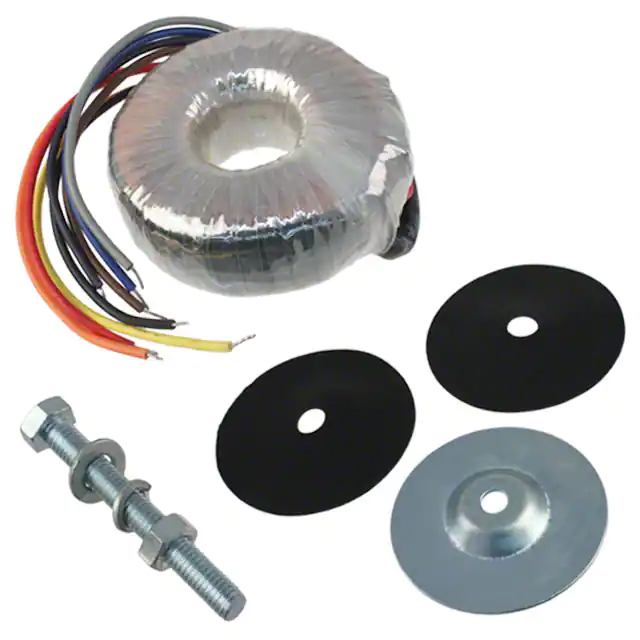

VPT230-110PWR XFMR TOROIDAL 25VA CHAS MT |
3,708 |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Toroidal | 115V, 230V | Parallel 115V, Series 230V | Parallel 220mA, Series 110mA | Dual | Dual | No | 25VA | Chassis Mount | Wire Leads | 71.00mm Dia x 32.00mm W | 34.0mm | 4000Vrms | 0.882 lb (400.07 g) |
|
TCT50-01E07ABPWR XFMR LAMINATED 50VA CHAS MT |
1,952 |
|
Datasheet | Class 2, TCT | Box | Active | Laminated Core | 120V | 24V | 2.08A | Single | Single | No | 50VA | Chassis Mount | Solder, Quick Connect | 92.46mm L x 56.67mm W | 57.00mm | 1500Vrms | 2 lbs (907.2 g) |
