Power Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VPL28-180PWR XFMR LAMINATED 5.0VA CHAS MT |
4,161 |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | 28V | 180mA | Dual | Dual | No | 5.0VA | Chassis Mount | Wire Leads | 36.52mm L x 60.33mm W | 36.52mm | 3500Vrms | 0.4 lb (181.44 g) |
|
F-348XPPWR XFMR LAMINATED 4.5VA CHAS MT |
2,241 |
|
Datasheet | Single Primary | Box | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 700mA, Series 350mA | Dual | Dual | No | 4.5VA | Chassis Mount | PC Pin | 60.32mm L x 31.75mm W | 34.93mm | 1500Vrms | 0.407 lb (184.62 g) |
|
VPS24-1000PWR XFMR LAMINATED 25VA CHAS MT |
3,555 |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 2A, Series 1A | Dual | Dual | No | 25VA | Chassis Mount | Solder, Quick Connect | 50.80mm L x 49.28mm W | 58.67mm | 4000Vrms | 1.3 lbs (589.7 g) |
|

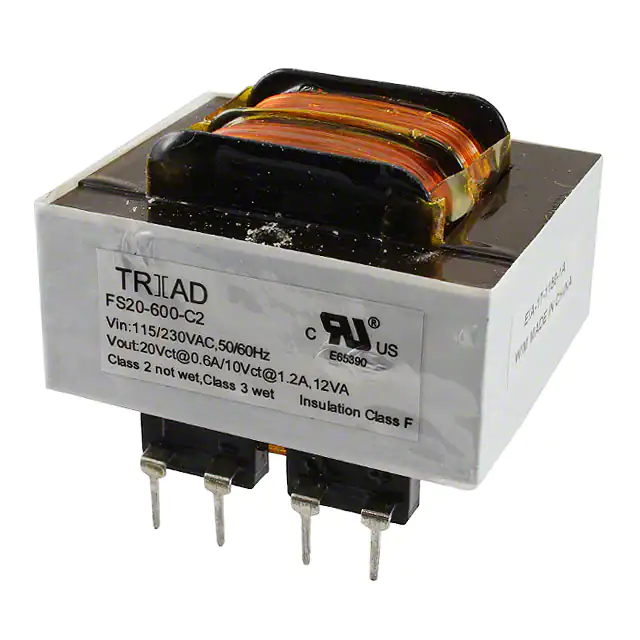

FS20-600-C2PWR XFMR LAMINATED 12VA TH |
4,027 |
|
Datasheet | Split Pack™, Class 2/3, FS | Tube | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 1.2A, Series 600mA | Dual | Dual | No | 12VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 36.50mm | 4200Vrms | 0.7 lb (317.51 g) |
|
FS36-350PWR XFMR LAMINATED 12VA TH |
4,956 |
|
Datasheet | Split Pack™ | Box | Active | Laminated Core | 115V, 230V | Parallel 18V, Series 36V | Parallel 700mA, Series 350mA | Dual | Dual | No | 12VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 36.50mm | 2500Vrms | 0.7 lb (317.51 g) |
|
F-117XPWR XFMR LAMINATED 9.6VA CHAS MT |
2,857 |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V | 24V | 400mA | Single | Single | Yes | 9.6VA | Chassis Mount | Wire Leads | 71.42mm L x 41.28mm W | 41.28mm | 1500Vrms | 0.8 lb (362.87 g) |
|

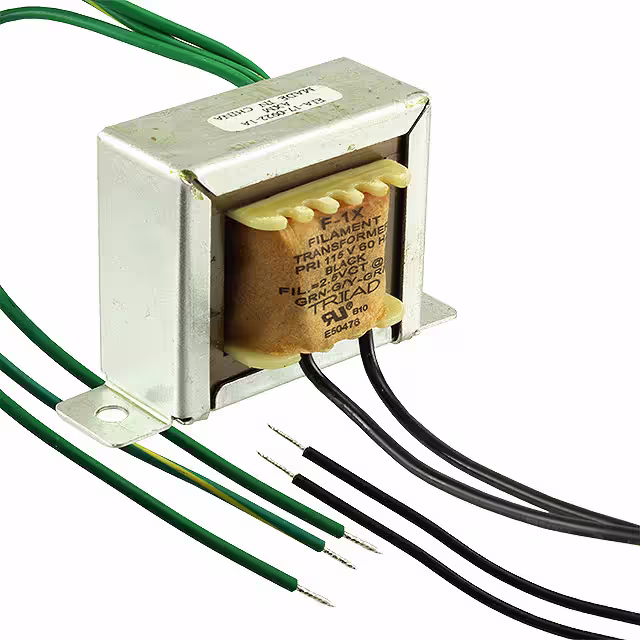

F-1XPWR XFMR LAMINATED 7.5VA CHAS MT |
4,026 |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V | 2.5V | 3A | Single | Single | Yes | 7.5VA | Chassis Mount | Wire Leads | 71.42mm L x 41.28mm W | 41.28mm | 1500Vrms | 0.68 lb (308.44 g) |
|
F-114XPWR XFMR LAMINATED 8.4VA CHAS MT |
1,152 |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V | 12V | 700mA | Single | Single | No | 8.4VA | Chassis Mount | Wire Leads | 71.42mm L x 41.28mm W | 41.28mm | 1500Vrms | 0.8 lb (362.87 g) |
|
FP34-170PWR XFMR LAMINATED 6VA TH |
4,206 |
|
Datasheet | Flat Pack™ | Box | Active | Laminated Core | 115V, 230V | Parallel 17V, Series 34V | Parallel 340mA, Series 170mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 22.22mm | 2000Vrms | 0.438 lb (198.67 g) |
|
|
FP12-475PWR XFMR LAMINATED 6VA TH |
3,972 |
|
Datasheet | Flat Pack™ | Box | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 950mA, Series 475mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 22.22mm | 2000Vrms | 0.438 lb (198.67 g) |
