Power Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VPS24-3300PWR XFMR LAMINATED 80VA CHAS MT |
1,496 |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 6.6A, Series 3.3A | Dual | Dual | No | 80VA | Chassis Mount | Solder, Quick Connect | 63.50mm L x 58.67mm W | 76.20mm | 4000Vrms | 2.8 lbs (1.3 kg) |
|

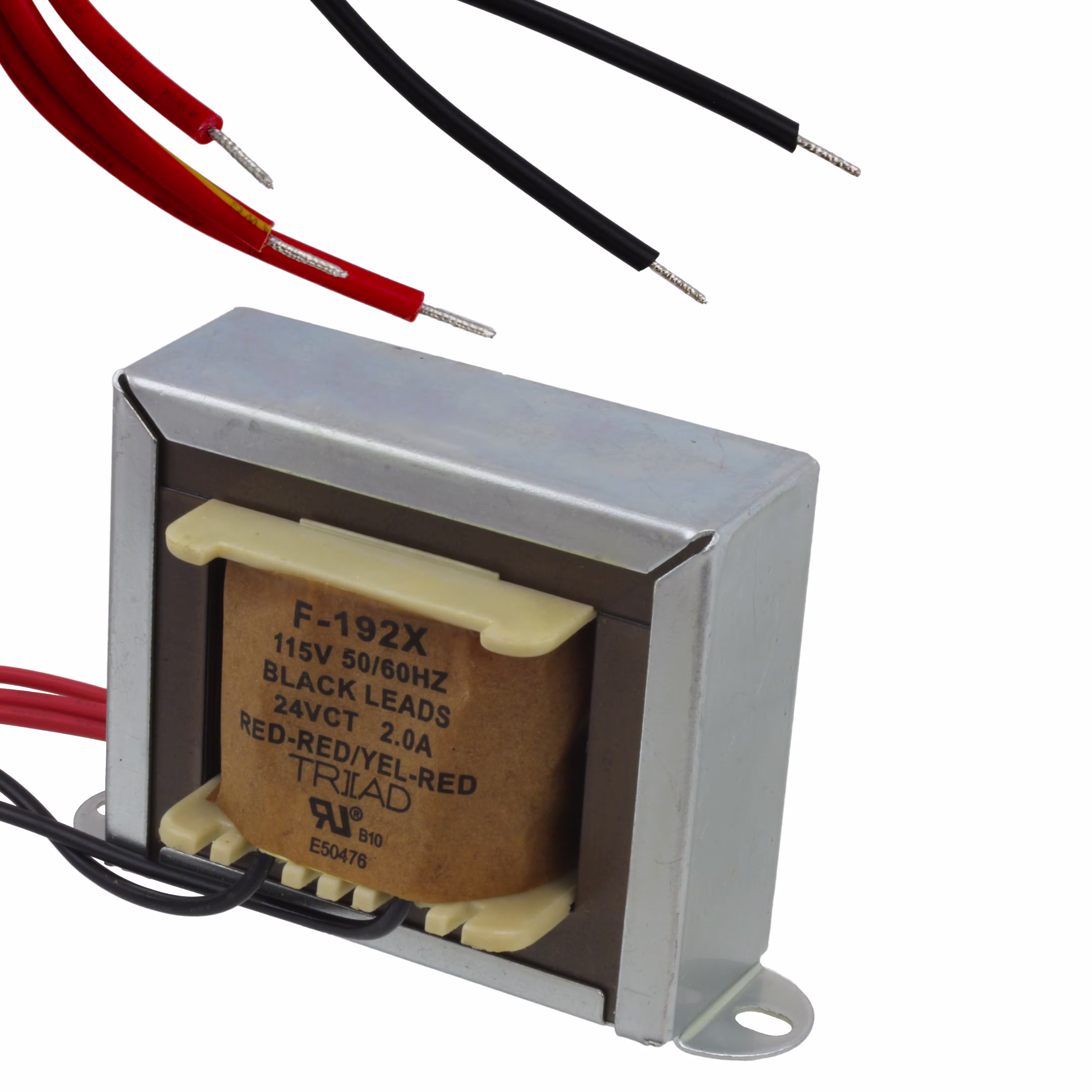

F-192XPWR XFMR LAMINATED 48VA CHAS MT |
1,399 |
|
Datasheet | Single Secondary | Bulk | Active | Laminated Core | 115V | 24V | 2A | Single | Single | Yes | 48VA | Chassis Mount | Wire Leads | 101.60mm L x 57.15mm W | 65.86mm | 1500Vrms | 2.3 lbs (1 kg) |
|

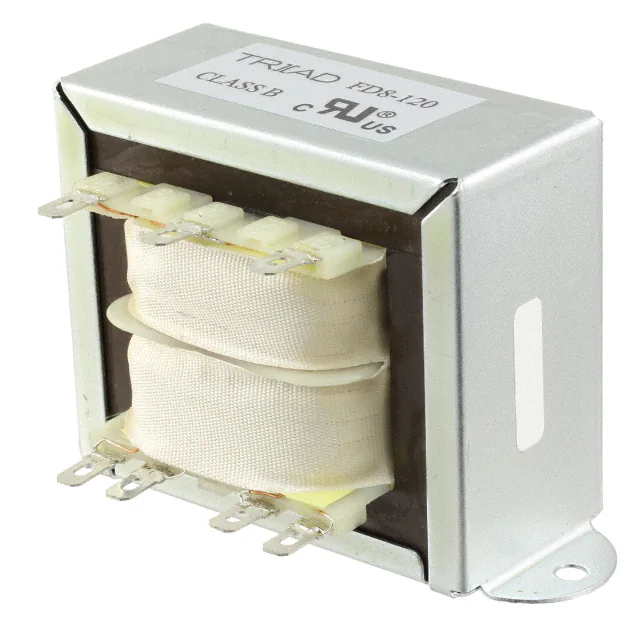

FD8-120PWR XFMR LAMINATED 100VA CHAS MT |
2,418 |
|
Datasheet | Quick Pack | Box | Active | Laminated Core | 115V, 230V | 120V | 850mA | Dual | Single | Yes | 100VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 102.39mm L x 57.15mm W | 65.07mm | 2500VAC | 2.8 lbs (1.3 kg) |
|

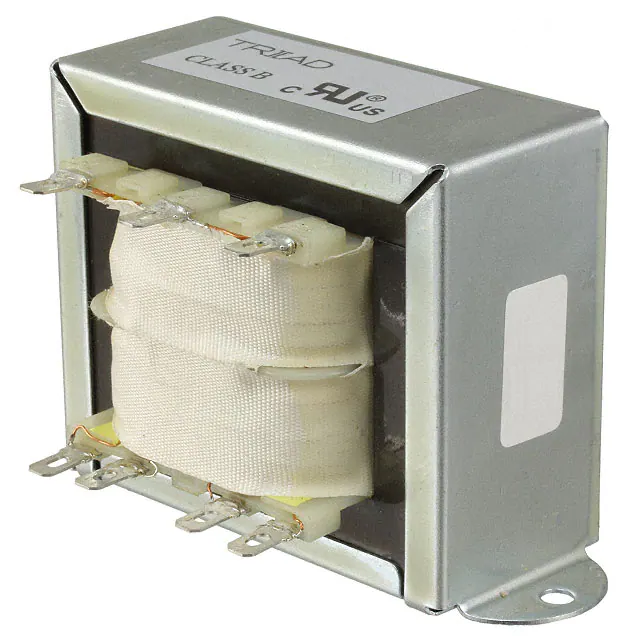

FD8-48PWR XFMR LAMINATED 100VA CHAS MT |
3,804 |
|
Datasheet | Quick Pack | Box | Active | Laminated Core | 115V, 230V | 48V | 2A | Dual | Single | Yes | 100VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 102.39mm L x 57.15mm W | 65.07mm | 2500VAC | 2.8 lbs (1.3 kg) |
|

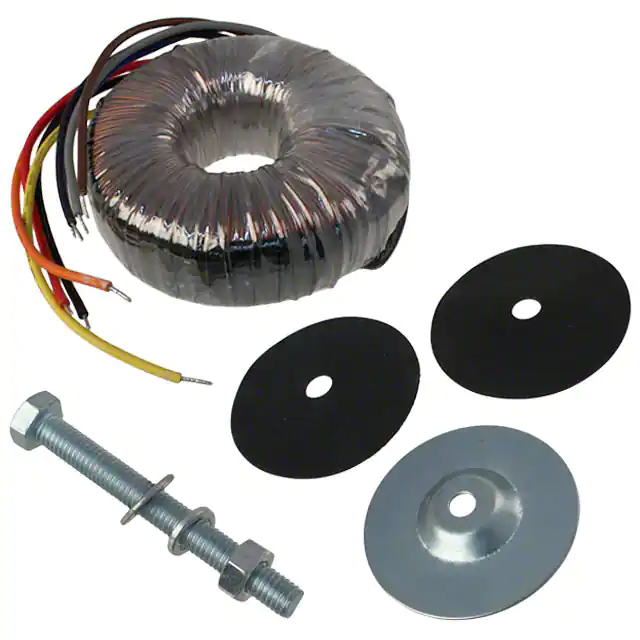

VPT18-2780PWR XFMR TOROIDAL 50VA CHAS MT |
1,180 |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Toroidal | 115V, 230V | Parallel 9V, Series 18V | Parallel 5.56A, Series 2.78A | Dual | Dual | No | 50VA | Chassis Mount | Wire Leads | 80.00mm Dia x 33.00mm W | 36.0mm | 4000Vrms | 1.4 lbs (635 g) |
|

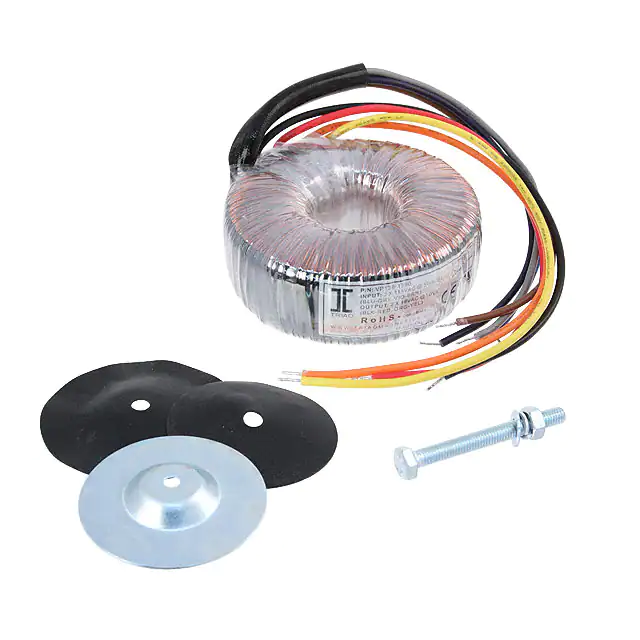

VPT36-1390PWR XFMR TOROIDAL 50VA CHAS MT |
2,241 |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Toroidal | 115V, 230V | Parallel 18V, Series 36V | Parallel 2.78A, Series 1.39A | Dual | Dual | No | 50VA | Chassis Mount | Wire Leads | 80.00mm Dia x 33.00mm W | 36.0mm | 4000Vrms | 1.4 lbs (635 g) |
|
VPT12-4170PWR XFMR TOROIDAL 50VA CHAS MT |
4,539 |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Toroidal | 115V, 230V | Parallel 6V, Series 12V | Parallel 8.34A, Series 4.17A | Dual | Dual | No | 50VA | Chassis Mount | Wire Leads | 80.00mm Dia x 33.00mm W | 36.0mm | 4000Vrms | 1.4 lbs (635 g) |
|
VPT48-1040PWR XFMR TOROIDAL 50VA CHAS MT |
3,151 |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Toroidal | 115V, 230V | Parallel 24V, Series 48V | Parallel 2.08A, Series 1.04A | Dual | Dual | No | 50VA | Chassis Mount | Wire Leads | 80.00mm Dia x 33.00mm W | 36.0mm | 4000Vrms | 1.4 lbs (635 g) |
|
|
VPS24-5400PWR XFMR LAMINATED 130VA CHAS MT |
1,623 |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 10.8A, Series 5.4A | Dual | Dual | No | 130VA | Chassis Mount | Solder, Quick Connect | 60.45mm L x 68.33mm W | 85.85mm | 4000Vrms | 4.1 lbs (1.9 kg) |
|
|
VPS28-4600PWR XFMR LAMINATED 130VA CHAS MT |
1,700 |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 9.2A, Series 4.6A | Dual | Dual | No | 130VA | Chassis Mount | Solder, Quick Connect | 71.37mm L x 68.33mm W | 85.85mm | 4000Vrms | 4.1 lbs (1.9 kg) |
