Power Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

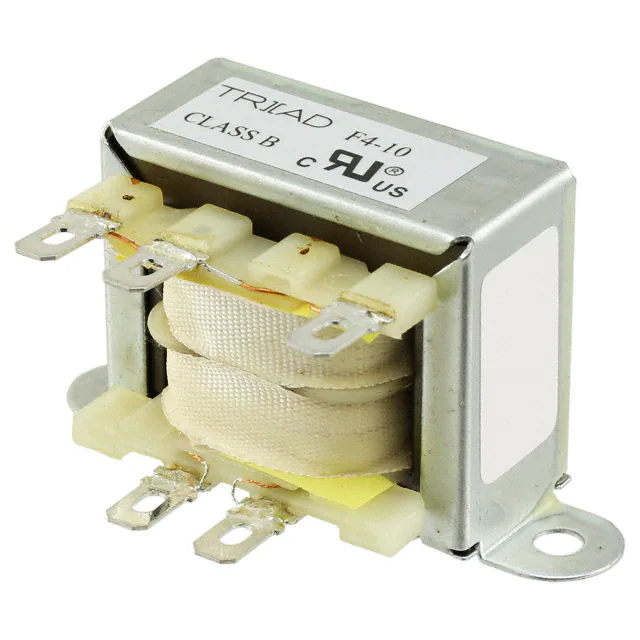

F4-10PWR XFMR LAMINATED 6VA CHAS MT |
2,947 |
|
Datasheet | Quick Pack | Bulk | Active | Laminated Core | 115V | 10V | 600mA | Single | Single | Yes | 6VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 60.33mm L x 31.75mm W | 34.93mm | 2500VAC | 0.44 lb (199.58 g) |
|
FS10-600PWR XFMR LAMINATED 6VA TH |
1,492 |
|
Datasheet | Split Pack™ | Box | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 1.2A, Series 600mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 41.28mm L x 33.32mm W | 33.32mm | 2500Vrms | 0.44 lb (199.58 g) |
|
|
FS28-200PWR XFMR LAMINATED 6VA TH |
2,590 |
|
Datasheet | Split Pack™ | Box | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 400mA, Series 200mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 41.28mm L x 33.32mm W | 33.32mm | 2500Vrms | 0.44 lb (199.58 g) |
|

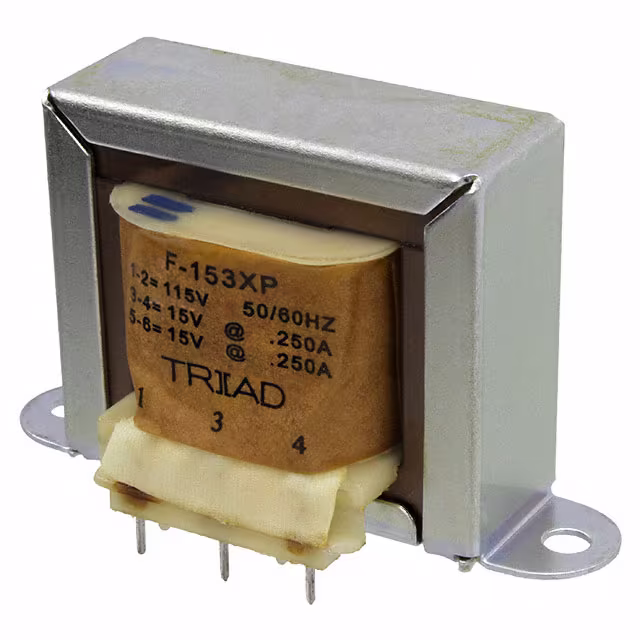

F-153XPPWR XFMR LAMINATED 7.5VA CHAS MT |
4,756 |
|
Datasheet | Single Primary | Box | Active | Laminated Core | 115V | Parallel 15V, Series 30V | Parallel 500mA, Series 250mA | Single | Dual | No | 7.5VA | Chassis Mount | PC Pin | 71.42mm L x 37.29mm W | 41.28mm | 1500Vrms | 0.657 lb (298.01 g) |
|

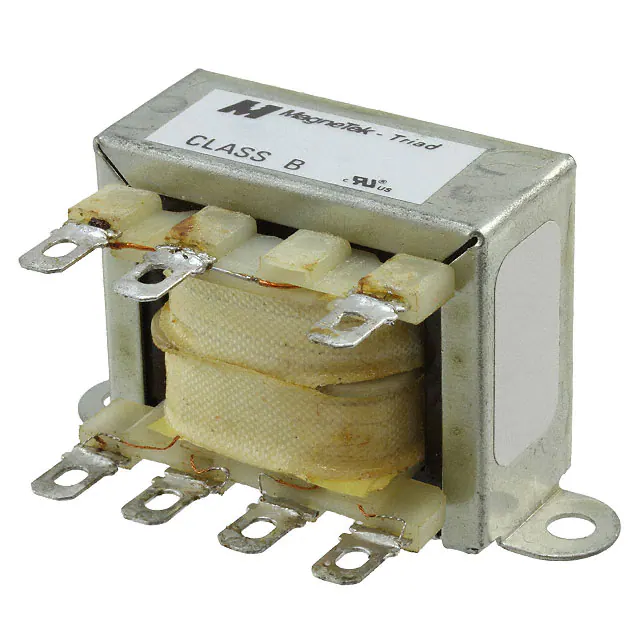

FD4-10PWR XFMR LAMINATED 6VA CHAS MT |
1,996 |
|
Datasheet | Quick Pack | Box | Active | Laminated Core | 115V, 230V | 10V | 600mA | Dual | Single | Yes | 6VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 65.07mm L x 31.75mm W | 34.93mm | 2500VAC | 0.44 lb (199.58 g) |
|

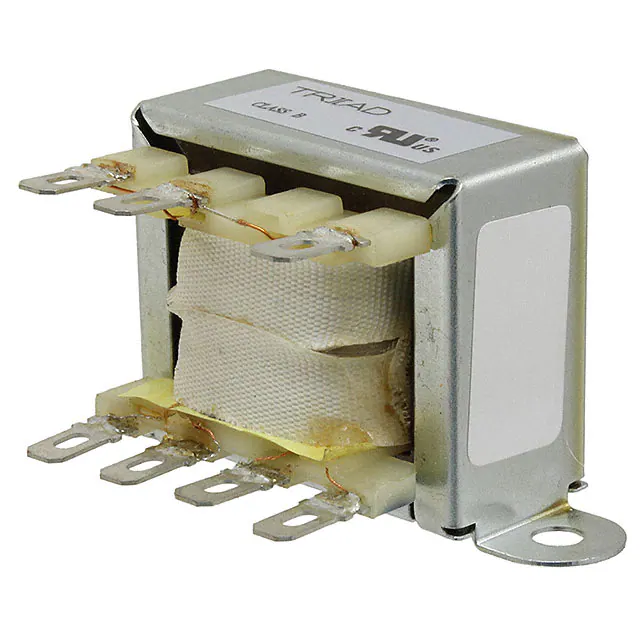

FD4-20PWR XFMR LAMINATED 6VA CHAS MT |
3,524 |
|
Datasheet | Quick Pack | Box | Active | Laminated Core | 115V, 230V | 20V | 300mA | Dual | Single | Yes | 6VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 65.07mm L x 31.75mm W | 34.93mm | 2500VAC | 0.44 lb (199.58 g) |
|
F36-350-C2PWR XFMR LAMINATED 12VA TH |
4,851 |
|
Datasheet | Split Pack™, Class 2/3, F | Tube | Active | Laminated Core | 115V | Parallel 18V, Series 36V | Parallel 700mA, Series 350mA | Single | Dual | No | 12VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 36.50mm | 2500Vrms | 0.7 lb (317.51 g) |
|
F-115XPWR XFMR LAMINATED 2.04VA CHAS |
1,395 |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V | 24V | 85mA | Single | Single | Yes | 2.04VA | Chassis Mount | Wire Leads | 52.37mm L x 34.93mm W | 30.15mm | 1500Vrms | 0.3 lb (136.08 g) |
|
VPL14-360PWR XFMR LAMINATED 5.0VA CHAS MT |
4,765 |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | 14V | 0.36A | Dual | Dual | No | 5.0VA | Chassis Mount | Wire Leads | 36.52mm L x 60.33mm W | 36.52mm | 3500Vrms | 0.4 lb (181.44 g) |
|

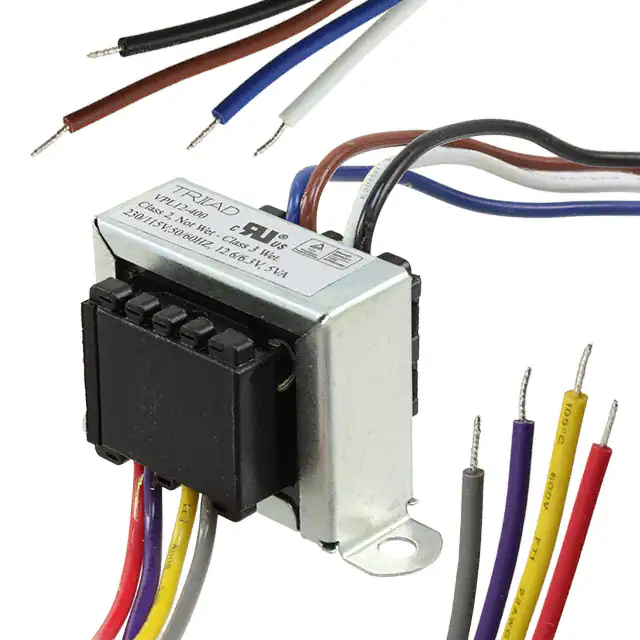

VPL12-400PWR XFMR LAMINATED 5.0VA CHAS MT |
2,525 |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | 12.6V | 390mA | Dual | Dual | No | 5.0VA | Chassis Mount | Wire Leads | 36.52mm L x 60.33mm W | 36.52mm | 3500Vrms | 0.4 lb (181.44 g) |
