Power Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IF-2-16PWR XFMR SEMI-TORO 2VA TH |
153 |
|
Datasheet | IF | Bulk | Active | Semi-Toroidal | 115V, 230V | Parallel 8V, Series 16V | Parallel 250mA, Series 125mA | Dual | Dual | No | 2VA | Through Hole | PC Pin | 53.00mm L x 44.00mm W | 17.60mm | 4000Vrms | 0.29 lb (131.54 g) |
|

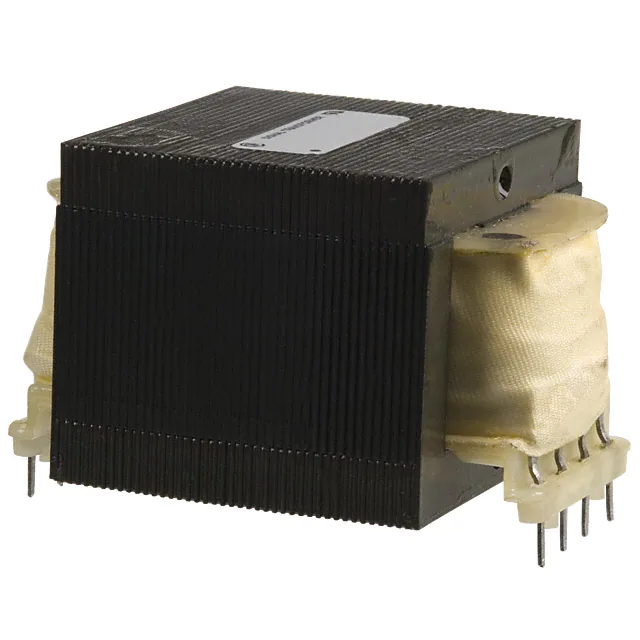

DPC-12-2000PWR XFMR LAMINATED 24VA TH |
289 |
|
Datasheet | DPC | Box | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 4A, Series 2A | Dual | Dual | No | 24VA | Through Hole | PC Pin | 41.30mm L x 57.20mm W | 34.93mm | 1500Vrms | 0.75 lb (340.19 g) |
|
A41-43-230PWR XFMR LAMINATED 43VA CHAS MT |
162 |
|
Datasheet | All-4-One™ | Box | Active | Laminated Core | 115V, 230V | Parallel 115V, Series 230V | Parallel 380mA, Series 190mA | Dual | Dual | No | 43VA | Chassis Mount | Solder, Quick Connect | 79.40mm L x 54.40mm W | 68.20mm | 4000Vrms | 1.6 lbs (725.7 g) |
|
DP-241-7-36PWR XFMR LAMINATED 56VA CHAS MT |
109 |
|
Datasheet | Two-4-One™ | Box | Active | Laminated Core | 115V, 230V | 36V | 1.5A | Dual | Single | Yes | 56VA | Chassis Mount | Solder, Quick Connect | 93.70mm L x 49.20mm W | 57.80mm | 2500Vrms | 1.7 lbs (771.1 g) |
|
LP-20-1200PWR XFMR SEMI-TORO 24VA TH |
135 |
|
Datasheet | LP | Bulk | Active | Semi-Toroidal | 115V, 230V | Parallel 10V, Series 20V | Parallel 2.4A, Series 1.2A | Dual | Dual | No | 24VA | Through Hole | PC Pin | 72.90mm L x 57.20mm W | 31.80mm | 1500Vrms | 0.938 lb (425.47 g) |
|
|
LP-40-600PWR XFMR SEMI-TORO 24VA TH |
304 |
|
Datasheet | LP | Bulk | Active | Semi-Toroidal | 115V, 230V | Parallel 20V, Series 40V | Parallel 1.2A, Series 600mA | Dual | Dual | No | 24VA | Through Hole | PC Pin | 72.90mm L x 57.20mm W | 31.80mm | 1500Vrms | 0.938 lb (425.47 g) |
|
|
LP-34-1400PWR XFMR SEMI-TORO 48VA TH |
416 |
|
Datasheet | LP | Bulk | Active | Semi-Toroidal | 115V, 230V | Parallel 17V, Series 34V | Parallel 2.8A, Series 1.4A | Dual | Dual | No | 48VA | Through Hole | PC Pin | 79.20mm L x 63.50mm W | 34.90mm | 1500Vrms | 1.4 lbs (635 g) |
|
14A-56-515PWR XFMR LAMINATED 56VA TH |
113 |
|
Datasheet | One-4-All™ | Bulk | Active | Laminated Core | 115V, 230V | 5V, ±15V | 3A, 250mA | Dual | Dual | Yes | 56VA | Through Hole | PC Pin | 76.20mm L x 63.50mm W | 46.00mm | 4000Vrms | 1.7 lbs (771.1 g) |
|
IF-14-30PWR XFMR SEMI-TORO 14VA TH |
119 |
|
Datasheet | IF | Bulk | Active | Semi-Toroidal | 115V, 230V | Parallel 15V, Series 30V | Parallel 940mA, Series 470mA | Dual | Dual | No | 14VA | Through Hole | PC Pin | 67.60mm L x 57.00mm W | 24.30mm | 4000Vrms | 0.75 lb (340.19 g) |
|
40-225-LPIPWR XFMR SEMI-TORO 9VA TH |
293 |
|
