Power Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

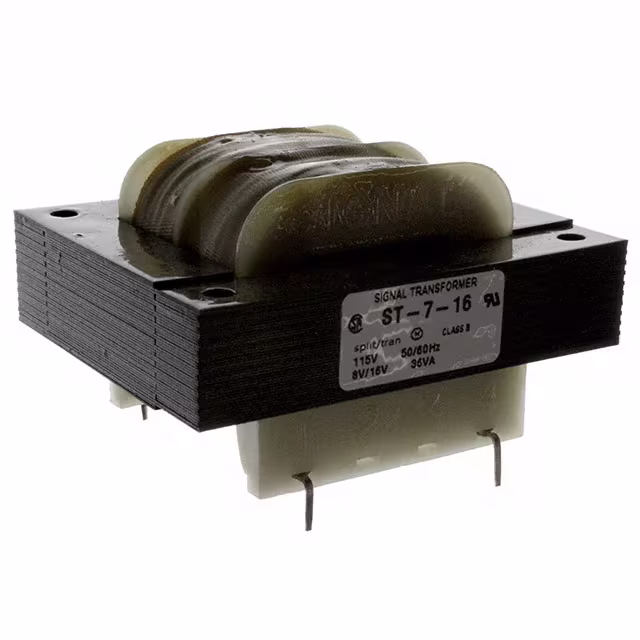

ST-7-24PWR XFMR LAMINATED 36VA TH |
183 |
|
Datasheet | ST | Box | Active | Laminated Core | 115V | Parallel 12V, Series 24V | Parallel 3A, Series 1.5A | Single | Dual | No | 36VA | Through Hole | PC Pin | 66.70mm L x 55.50mm W | 40.40mm | 2500Vrms | 1.1 lbs (499 g) |
|
241-6-16PWR XFMR LAMINATED 30VA CHAS MT |
119 |
|
Datasheet | Two-4-One™ | Box | Active | Laminated Core | 115V | 16V | 2A | Single | Single | Yes | 30VA | Chassis Mount | Solder, Quick Connect | 82.60mm L x 44.30mm W | 49.80mm | 2500Vrms | 1.1 lbs (499 g) |
|
|
241-7-16PWR XFMR LAMINATED 56VA CHAS MT |
222 |
|
Datasheet | Two-4-One™ | Box | Active | Laminated Core | 115V | 16V | 3.5A | Single | Single | Yes | 56VA | Chassis Mount | Solder, Quick Connect | 93.70mm L x 49.20mm W | 57.80mm | 2500Vrms | 1.7 lbs (771.1 g) |
|
14A-30-28PWR XFMR LAMINATED 30VA TH |
458 |
|
Datasheet | One-4-All™ | Box | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 2.12A, Series 1.06A | Dual | Dual | No | 30VA | Through Hole | PC Pin | 66.70mm L x 55.50mm W | 39.70mm | 4000Vrms | 1.2 lbs (544.3 g) |
|
|
DP-241-6-28PWR XFMR LAMINATED 30VA CHAS MT |
139 |
|
Datasheet | Two-4-One™ | Box | Active | Laminated Core | 115V, 230V | 28V | 1.1A | Dual | Single | Yes | 30VA | Chassis Mount | Solder, Quick Connect | 82.60mm L x 44.30mm W | 49.80mm | 2500Vrms | 1.1 lbs (499 g) |
|
DP-241-5-24LPWR XFMR LAMINATED 12VA CHAS MT |
115 |
|
Datasheet | Two-4-One™ | Bulk | Active | Laminated Core | 115V, 230V | 24V | 500mA | Dual | Single | Yes | 12VA | Chassis Mount | Wire Leads | 71.40mm L x 36.30mm W | 42.80mm | 2500Vrms | 0.7 lb (317.51 g) |
|
DST-6-16PWR XFMR LAMINATED 20VA TH |
132 |
|
Datasheet | DST | Box | Active | Laminated Core | 115V, 230V | Parallel 8V, Series 16V | Parallel 2.5A, Series 1.25A | Dual | Dual | No | 20VA | Through Hole | PC Pin | 57.20mm L x 47.60mm W | 36.90mm | 2500Vrms | 0.8 lb (362.87 g) |
|
PC-34-700PWR XFMR LAMINATED 24VA TH |
187 |
|
Datasheet | PC | Box | Active | Laminated Core | 115V | Parallel 17V, Series 34V | Parallel 1.4A, Series 700mA | Single | Dual | No | 24VA | Through Hole | PC Pin | 41.30mm L x 57.20mm W | 34.93mm | 1500Vrms | 0.75 lb (340.19 g) |
|
LP-16-700PWR XFMR SEMI-TORO 12VA TH |
148 |
|
Datasheet | LP | Bulk | Active | Semi-Toroidal | 115V, 230V | Parallel 8V, Series 16V | Parallel 1.4A, Series 700mA | Dual | Dual | No | 12VA | Through Hole | PC Pin | 63.50mm L x 50.80mm W | 27.10mm | 1500Vrms | 0.688 lb (312.07 g) |
|
|
LP-16-1500PWR XFMR SEMI-TORO 24VA TH |
624 |
|
Datasheet | LP | Bulk | Active | Semi-Toroidal | 115V, 230V | Parallel 8V, Series 16V | Parallel 3A, Series 1.5A | Dual | Dual | No | 24VA | Through Hole | PC Pin | 72.90mm L x 57.20mm W | 31.80mm | 1500Vrms | 0.938 lb (425.47 g) |
