Power Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A41-25-36PWR XFMR LAMINATED 25VA CHAS MT |
447 |
|
Datasheet | All-4-One™ | Box | Active | Laminated Core | 115V, 230V | Parallel 18V, Series 36V | Parallel 1.4A, Series 700mA | Dual | Dual | No | 25VA | Chassis Mount | Solder, Quick Connect | 71.40mm L x 54.40mm W | 58.70mm | 4000Vrms | 1.3 lbs (589.7 g) |
|
DP-241-5-16PWR XFMR LAMINATED 12VA CHAS MT |
437 |
|
Datasheet | Two-4-One™ | Box | Active | Laminated Core | 115V, 230V | 16V | 800mA | Dual | Single | Yes | 12VA | Chassis Mount | Solder, Quick Connect | 71.40mm L x 36.30mm W | 42.80mm | 2500Vrms | 0.7 lb (317.51 g) |
|
|
DP-241-5-36PWR XFMR LAMINATED 12VA CHAS MT |
101 |
|
Datasheet | Two-4-One™ | Box | Active | Laminated Core | 115V, 230V | 36V | 350mA | Dual | Single | Yes | 12VA | Chassis Mount | Solder, Quick Connect | 71.40mm L x 36.30mm W | 42.80mm | 2500Vrms | 0.7 lb (317.51 g) |
|
|
DP-241-4-12PWR XFMR LAMINATED 6VA CHAS MT |
205 |
|
Datasheet | Two-4-One™ | Box | Active | Laminated Core | 115V, 230V | 12.6V | 500mA | Dual | Single | Yes | 6VA | Chassis Mount | Solder, Quick Connect | 60.30mm L x 33.30mm W | 36.20mm | 2500Vrms | 0.44 lb (199.58 g) |
|
|
A41-25-28PWR XFMR LAMINATED 25VA CHAS MT |
295 |
|
Datasheet | All-4-One™ | Box | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 1.86A, Series 900mA | Dual | Dual | No | 25VA | Chassis Mount | Solder, Quick Connect | 71.40mm L x 54.40mm W | 58.70mm | 4000Vrms | 1.3 lbs (589.7 g) |
|
LP-16-350PWR XFMR SEMI-TORO 6VA TH |
140 |
|
Datasheet | LP | Bulk | Active | Semi-Toroidal | 115V, 230V | Parallel 8V, Series 16V | Parallel 700mA, Series 350mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 47.50mm L x 39.60mm W | 21.60mm | 1500Vrms | 0.438 lb (198.67 g) |
|
LP-30-200PWR XFMR SEMI-TORO 6VA TH |
275 |
|
Datasheet | LP | Bulk | Active | Semi-Toroidal | 115V, 230V | Parallel 15V, Series 30V | Parallel 400mA, Series 200mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 47.50mm L x 39.60mm W | 21.60mm | 1500Vrms | 0.438 lb (198.67 g) |
|
MPC-X-15PWR XFMR LAMINATED 10VA TH |
205 |
|
Datasheet | MPC | Bulk | Active | Laminated Core | 115V | Parallel 5V, Series 15V | Parallel 360mA, Series 50mA | Single | Dual | Yes | 10VA | Through Hole | PC Pin | 47.60mm L x 36.50mm W | 41.70mm | 1500Vrms | 0.56 lb (254.01 g) |
|

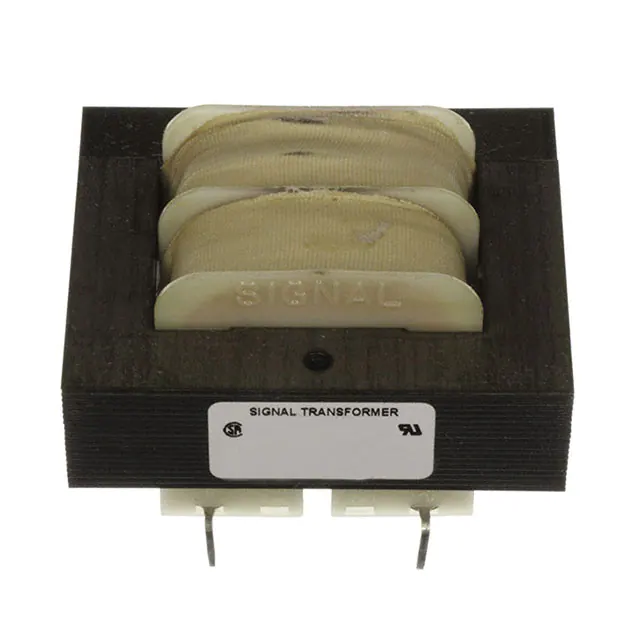

ST-6-20PWR XFMR LAMINATED 20VA TH |
286 |
|
Datasheet | ST | Box | Active | Laminated Core | 115V | Parallel 10V, Series 20V | Parallel 2A, Series 1A | Single | Dual | No | 20VA | Through Hole | PC Pin | 57.20mm L x 47.60mm W | 36.90mm | 2500Vrms | 0.8 lb (362.87 g) |
|
14A-20-515PWR XFMR LAMINATED 20VA TH |
369 |
|
Datasheet | One-4-All™ | Bulk | Active | Laminated Core | 115V, 230V | 5V, ±15V | 750mA, 175mA | Dual | Dual | Yes | 20VA | Through Hole | PC Pin | 57.20mm L x 47.60mm W | 41.30mm | 4000Vrms | 0.9 lb (408.23 g) |
