Power Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

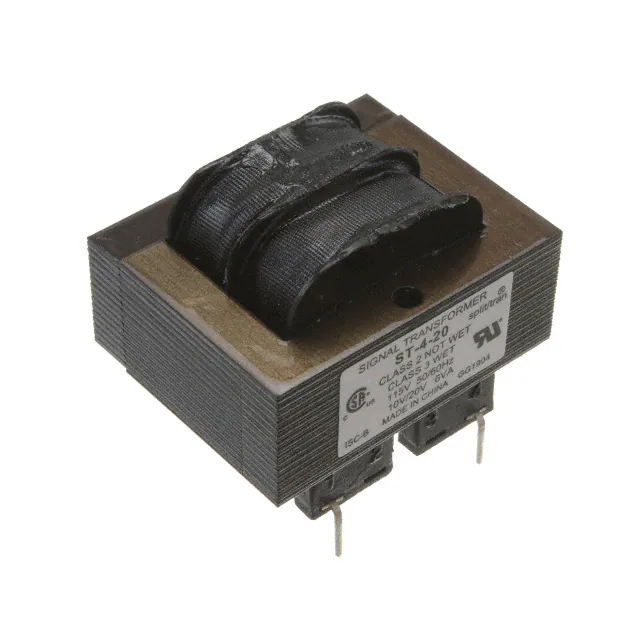

ST-4-20PWR XFMR LAMINATED 6VA TH |
139 |
|
Datasheet | ST | Box | Active | Laminated Core | 115V | Parallel 10V, Series 20V | Parallel 600mA, Series 300mA | Single | Dual | No | 6VA | Through Hole | PC Pin | 41.30mm L x 33.30mm W | 33.30mm | 2500Vrms | 0.44 lb (199.58 g) |
|
14A-2.5R-12PWR XFMR LAMINATED 2.5VA TH |
210 |
|
Datasheet | One-4-All™ | Box | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 400mA, Series 200mA | Dual | Dual | No | 2.5VA | Through Hole | PC Pin | 41.30mm L x 36.50mm W | 28.60mm | 4000Vrms | 0.25 lb (113.4 g) |
|
|
14A-2.5R-36PWR XFMR LAMINATED 2.5VA TH |
168 |
|
Datasheet | One-4-All™ | Box | Active | Laminated Core | 115V, 230V | Parallel 18V, Series 36V | Parallel 140mA, Series 70mA | Dual | Dual | No | 2.5VA | Through Hole | PC Pin | 41.30mm L x 36.50mm W | 28.60mm | 4000Vrms | 0.25 lb (113.4 g) |
|
|
14A-2.5R-16PWR XFMR LAMINATED 2.5VA TH |
120 |
|
Datasheet | One-4-All™ | Box | Active | Laminated Core | 115V, 230V | Parallel 8V, Series 16V | Parallel 300mA, Series 150mA | Dual | Dual | No | 2.5VA | Through Hole | PC Pin | 41.30mm L x 36.50mm W | 28.60mm | 4000Vrms | 0.25 lb (113.4 g) |
|
PC-16-260PWR XFMR LAMINATED 4.4VA TH |
1,464 |
|
Datasheet | PC | Box | Active | Laminated Core | 115V | Parallel 8V, Series 16V | Parallel 520mA, Series 260mA | Single | Dual | No | 4.4VA | Through Hole | PC Pin | 41.30mm L x 31.80mm W | 34.92mm | 1500Vrms | 0.313 lb (141.97 g) |
|
LP-16-150PWR XFMR SEMI-TORO 2VA TH |
119 |
|
Datasheet | LP | Bulk | Active | Semi-Toroidal | 115V, 230V | Parallel 8V, Series 16V | Parallel 300mA, Series 150mA | Dual | Dual | No | 2VA | Through Hole | PC Pin | 47.50mm L x 39.60mm W | 16.50mm | 1500Vrms | 0.313 lb (141.97 g) |
|
ST-4-12PWR XFMR LAMINATED 6VA TH |
750 |
|
Datasheet | ST | Box | Active | Laminated Core | 115V | Parallel 6.3V, Series 12.6V | Parallel 1A, Series 500mA | Single | Dual | No | 6VA | Through Hole | PC Pin | 41.30mm L x 33.30mm W | 33.30mm | 2500Vrms | 0.44 lb (199.58 g) |
|
|
LP-12-200PWR XFMR SEMI-TORO 2VA TH |
344 |
|
Datasheet | LP | Bulk | Active | Semi-Toroidal | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 400mA, Series 200mA | Dual | Dual | No | 2VA | Through Hole | PC Pin | 47.50mm L x 39.60mm W | 16.50mm | 1500Vrms | 0.313 lb (141.97 g) |
|
DST-2-10PWR XFMR LAMINATED 1.1VA TH |
139 |
|
Datasheet | DST | Bulk | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 220mA, Series 110mA | Dual | Dual | No | 1.1VA | Through Hole | PC Pin | 34.90mm L x 28.60mm W | 24.60mm | 2500Vrms | 0.17 lb (77.11 g) |
|
DP-241-5-20PWR XFMR LAMINATED 12VA CHAS MT |
788 |
|
Datasheet | Two-4-One™ | Box | Active | Laminated Core | 115V, 230V | 20V | 600mA | Dual | Single | Yes | 12VA | Chassis Mount | Solder, Quick Connect | 71.40mm L x 36.30mm W | 42.80mm | 2500Vrms | 0.7 lb (317.51 g) |
