Power Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LP-30-800PWR XFMR SEMI-TORO 24VA TH |
105 |
|
Datasheet | LP | Bulk | Active | Semi-Toroidal | 115V, 230V | Parallel 15V, Series 30V | Parallel 1.6A, Series 800mA | Dual | Dual | No | 24VA | Through Hole | PC Pin | 72.90mm L x 57.20mm W | 31.80mm | 1500Vrms | 0.938 lb (425.47 g) |
|
A41-25-230PWR XFMR LAMINATED 25VA CHAS MT |
199 |
|
Datasheet | All-4-One™ | Box | Active | Laminated Core | 115V, 230V | Parallel 115V, Series 230V | Parallel 220mA, Series 110mA | Dual | Dual | No | 25VA | Chassis Mount | Solder, Quick Connect | 71.40mm L x 54.40mm W | 58.70mm | 4000Vrms | 1.3 lbs (589.7 g) |
|
DST-7-24PWR XFMR LAMINATED 36VA TH |
110 |
|
Datasheet | DST | Box | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 3A, Series 1.5A | Dual | Dual | No | 36VA | Through Hole | PC Pin | 66.70mm L x 55.50mm W | 40.40mm | 2500Vrms | 1.1 lbs (499 g) |
|
|
DST-7-28PWR XFMR LAMINATED 36VA TH |
118 |
|
Datasheet | DST | Box | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 2.6A, Series 1.3A | Dual | Dual | No | 36VA | Through Hole | PC Pin | 66.70mm L x 55.50mm W | 40.40mm | 2500Vrms | 1.1 lbs (499 g) |
|
14A-30-512PWR XFMR LAMINATED 30VA TH |
1,574 |
|
Datasheet | One-4-All™ | Bulk | Active | Laminated Core | 115V, 230V | 5V, ±12V | 1.25A, 250mA | Dual | Dual | Yes | 30VA | Through Hole | PC Pin | 66.70mm L x 55.50mm W | 39.70mm | 4000Vrms | 1.2 lbs (544.3 g) |
|
|
14A-30-515PWR XFMR LAMINATED 30VA TH |
326 |
|
Datasheet | One-4-All™ | Bulk | Active | Laminated Core | 115V, 230V | 5V, ±15V | 1.25A, 200mA | Dual | Dual | Yes | 30VA | Through Hole | PC Pin | 66.70mm L x 55.50mm W | 39.70mm | 4000Vrms | 1.2 lbs (544.3 g) |
|
241-7-24PWR XFMR LAMINATED 56VA CHAS MT |
106 |
|
Datasheet | Two-4-One™ | Box | Active | Laminated Core | 115V | 24V | 2.4A | Single | Single | Yes | 56VA | Chassis Mount | Solder, Quick Connect | 93.70mm L x 49.20mm W | 57.80mm | 2500Vrms | 1.7 lbs (771.1 g) |
|
|
14A-56-24PWR XFMR LAMINATED 56VA TH |
829 |
|
Datasheet | One-4-All™ | Box | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 4.66A, Series 2.33A | Dual | Dual | No | 56VA | Through Hole | PC Pin | 76.20mm L x 63.50mm W | 46.00mm | 4000Vrms | 1.7 lbs (771.1 g) |
|
|
DP-241-8-10PWR XFMR LAMINATED 100VA CHAS MT |
211 |
|
Datasheet | Two-4-One™ | Box | Active | Laminated Core | 115V, 230V | 10V | 10A | Dual | Single | Yes | 100VA | Chassis Mount | Solder, Quick Connect | 102.40mm L x 58.50mm W | 67.70mm | 2500Vrms | 2.8 lbs (1.3 kg) |
|

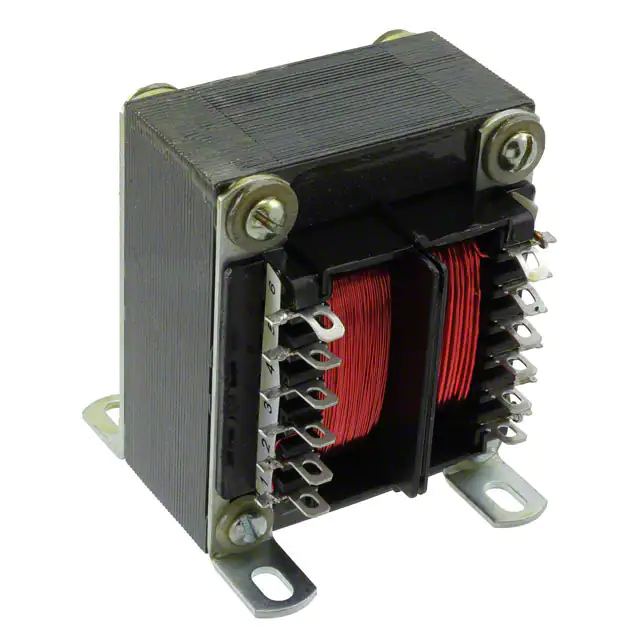

CL2-80-24PWR XFMR LAMINATED 80VA CHAS MT |
521 |
|
Datasheet | CL2 | Bulk | Active | Laminated Core | 115V, 230V | 24V | 3.33A | Dual | Single | No | 80VA | Chassis Mount | Solder, Quick Connect | 63.50mm L x 64.30mm W | 76.20mm | 4000Vrms | 2.8 lbs (1.3 kg) |
