Power Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DST-7-36PWR XFMR LAMINATED 36VA TH |
1,974 |
|
Datasheet | DST | Box | Active | Laminated Core | 115V, 230V | Parallel 18V, Series 36V | Parallel 2A, Series 1A | Dual | Dual | No | 36VA | Through Hole | PC Pin | 66.70mm L x 55.50mm W | 40.40mm | 2500Vrms | 1.1 lbs (499 g) |
|
|
DST-6-36PWR XFMR LAMINATED 20VA TH |
293 |
|
Datasheet | DST | Box | Active | Laminated Core | 115V, 230V | Parallel 18V, Series 36V | Parallel 1.1A, Series 550mA | Dual | Dual | No | 20VA | Through Hole | PC Pin | 57.20mm L x 47.60mm W | 36.90mm | 2500Vrms | 0.8 lb (362.87 g) |
|
CL2-50-24PWR XFMR LAMINATED 50VA TH |
1,166 |
|

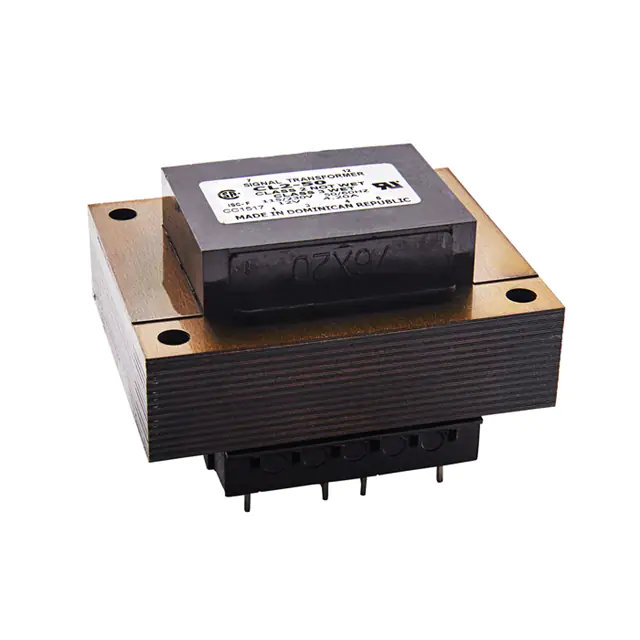

Datasheet | CL2 | Bulk | Active | Laminated Core | 115V, 230V | 24V | 2.1A | Dual | Single | No | 50VA | Through Hole | PC Pin | 76.20mm L x 63.50mm W | 46.00mm | 4000Vrms | 1.7 lbs (771.1 g) |
|
LP-24-250PWR XFMR SEMI-TORO 6VA TH |
164 |
|
Datasheet | LP | Bulk | Active | Semi-Toroidal | 115V, 230V | Parallel 12V, Series 24V | Parallel 500mA, Series 250mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 47.50mm L x 39.60mm W | 21.60mm | 1500Vrms | 0.438 lb (198.67 g) |
|
14A-20-512PWR XFMR LAMINATED 20VA TH |
279 |
|
Datasheet | One-4-All™ | Bulk | Active | Laminated Core | 115V, 230V | 5V, ±12V | 750mA, 200mA | Dual | Dual | Yes | 20VA | Through Hole | PC Pin | 57.20mm L x 47.60mm W | 41.30mm | 4000Vrms | 0.9 lb (408.23 g) |
|
241-7-28PWR XFMR LAMINATED 56VA CHAS MT |
188 |
|
Datasheet | Two-4-One™ | Box | Active | Laminated Core | 115V | 28V | 2A | Single | Single | Yes | 56VA | Chassis Mount | Solder, Quick Connect | 93.70mm L x 49.20mm W | 57.80mm | 2500Vrms | 1.7 lbs (771.1 g) |
|
|
14A-30-36PWR XFMR LAMINATED 30VA TH |
572 |
|
Datasheet | One-4-All™ | Box | Active | Laminated Core | 115V, 230V | Parallel 18V, Series 36V | Parallel 1.64A, Series 820mA | Dual | Dual | No | 30VA | Through Hole | PC Pin | 66.70mm L x 55.50mm W | 39.70mm | 4000Vrms | 1.2 lbs (544.3 g) |
|
|
14A-30-16PWR XFMR LAMINATED 30VA TH |
239 |
|
Datasheet | One-4-All™ | Box | Active | Laminated Core | 115V, 230V | Parallel 8V, Series 16V | Parallel 3.8A, Series 1.9A | Dual | Dual | No | 30VA | Through Hole | PC Pin | 66.70mm L x 55.50mm W | 39.70mm | 4000Vrms | 1.2 lbs (544.3 g) |
|
|
DP-241-7-28PWR XFMR LAMINATED 56VA CHAS MT |
911 |
|
Datasheet | Two-4-One™ | Box | Active | Laminated Core | 115V, 230V | 28V | 2A | Dual | Single | Yes | 56VA | Chassis Mount | Solder, Quick Connect | 93.70mm L x 49.20mm W | 57.80mm | 2500Vrms | 1.7 lbs (771.1 g) |
|
|
DP-241-6-12PWR XFMR LAMINATED 30VA CHAS MT |
378 |
|
Datasheet | Two-4-One™ | Box | Active | Laminated Core | 115V, 230V | 12.6V | 2.5A | Dual | Single | Yes | 30VA | Chassis Mount | Solder, Quick Connect | 82.60mm L x 44.30mm W | 49.80mm | 2500Vrms | 1.1 lbs (499 g) |
