Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6572502103FLED 17.46MM RED DIFF PANEL MOUNT |
1,371 |
|
Datasheet | 657 | Bulk | Active | LED | Red | Red | Diffused | DC | 5V | 20mA | Round | 0.69" (17.53mm) | 16.50mm Dia | Round with Domed Top | - | - | - | Wire Leads - 6" (152.40mm) | IP67, NEMA 4X | - |
|
6571502303FLED 17.46MM RED DIFF PANEL MOUNT |
2,546 |
|
Datasheet | 657 | Bulk | Active | LED | Red | White | Diffused | DC | 5V | 20mA | Round | 0.69" (17.53mm) | 16.50mm Dia | Round with Flat Top | - | - | - | Wire Leads - 6" (152.40mm) | IP67, NEMA 4X | - |
|
|
6571504303FLED 17.46MM RED DIFF PANEL MOUNT |
2,433 |
|
Datasheet | 657 | Bulk | Active | LED | Red | White | Diffused | DC | 24V | 20mA | Round | 0.69" (17.53mm) | 16.50mm Dia | Round with Flat Top | - | - | - | Wire Leads - 6" (152.40mm) | IP67, NEMA 4X | - |
|
|
6571502103FLED 17.46MM RED DIFF PANEL MOUNT |
2,326 |
|
Datasheet | 657 | Bulk | Active | LED | Red | Red | Diffused | DC | 5V | 20mA | Round | 0.69" (17.53mm) | 16.50mm Dia | Round with Flat Top | - | - | - | Wire Leads - 6" (152.40mm) | IP67, NEMA 4X | - |
|
5571602203FLED PNL MT 11/16" 5V WT GREEN |
4,665 |
|
Datasheet | 557 | Bulk | Active | LED | Green | - | - | DC | 5V | 16mA | Round | 0.69" (17.53mm) | 17.80mm Dia | Round with Flat Top | - | - | - | Wire Leads - 0.50" (12.70mm) | Water Resistant | - |
|

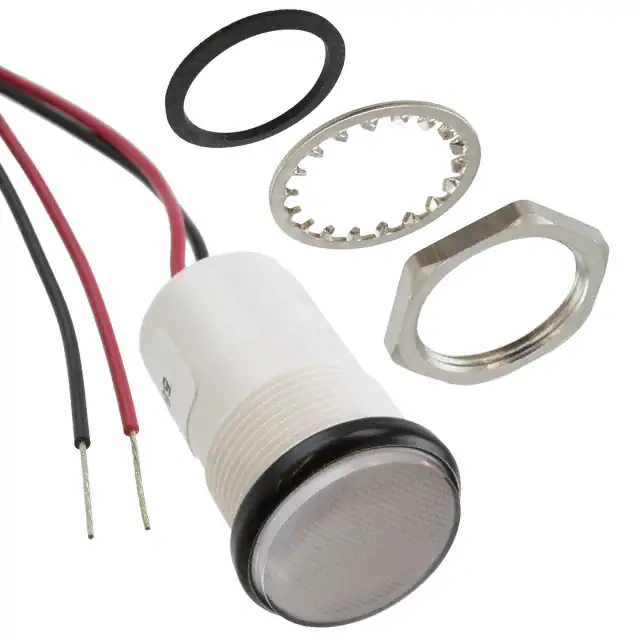

5571805203FLED PNL MT 11/16" 24V WT BLUE |
2,526 |
|
Datasheet | 557 | Bulk | Active | LED | Blue | - | - | DC | 24V | 16mA | Round | 0.69" (17.53mm) | 17.80mm Dia | Round with Flat Top | - | - | - | Wire Leads - 0.50" (12.70mm) | Water Resistant | - |
|
656130A304F1/2" FLT YLW 48VDC W/TERMS |
4,523 |
|
Datasheet | 656 | Bag | Active | LED | Yellow | - | - | DC | 48V | 10mA | Round | 0.50" (12.70mm) | - | Round with Flat Top | 190mcd | - | - | Quick Connect | IP66/IP67, NEMA 4X | - |
|
6561206304FLED 1/2" FLAT GRN 28VDC TERM |
1,030 |
|
Datasheet | 656 | Bag | Active | LED | Green | Green | Clear | DC | 28V | 18mA | Round | 0.50" (12.70mm) | - | Round with Flat Top | 1140mcd | - | - | Quick Connect | IP66/IP67, NEMA 4X | - |
|
6563104304FLED 1/2" DOME RED 24VDC TERM |
3,138 |
|
Datasheet | 656 | Bag | Active | LED | Red | Red | Clear | DC | 24V | 20mA | Round | 0.50" (12.70mm) | - | Round with Domed Top | 2000mcd | - | - | Quick Connect | IP66/IP67, NEMA 4X | - |
|
|
6561209304FLED 1/2" FLAT GRN 230VAC TERM |
4,896 |
|
Datasheet | 656 | Bag | Active | LED | Green | Green | Clear | AC | 230V | 3mA | Round | 0.50" (12.70mm) | - | Round with Flat Top | 450mcd | - | - | Quick Connect | IP66/IP67, NEMA 4X | - |
