Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6823235142FLED PANEL INDCATOR GREEN 24V |
2,580 |
|
Datasheet | 682 | Bag | Active | LED | Green | - | - | DC | 24V | 30mA | Round | 0.49" (12.50mm) | - | Round with Flat Top | 25000mcd | 525nm | 30° | Wire Leads - 6" (152.40mm) | - | - |
|
24978723331504FLED PANEL IND RED 28V CYLINDER |
4,284 |
|
Datasheet | 249 | Bulk | Active | LED | Red | - | - | DC | 28V | 20mA | Round | 0.38" (9.65mm) | 7.10mm Dia | Round with Flat Top | 55mcd | - | - | Wire Wrap | - | - |
|
24978683731504FLED PANEL IND RED 5V STOVEPIPE |
4,400 |
|
Datasheet | 249 | Bulk | Active | LED | Red | - | - | Vf (Typ), If (Max) | 5V | 20mA | Round | 0.38" (9.65mm) | - | Round with Domed Top | 170mcd | - | - | Wire Wrap | - | - |
|

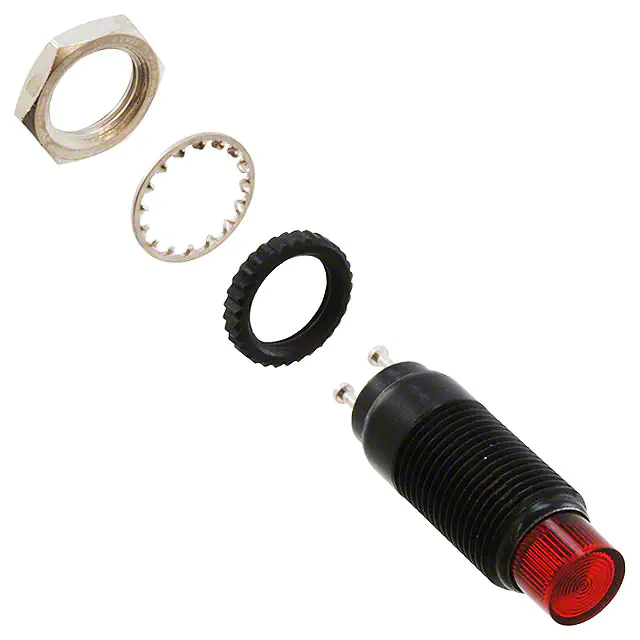

24978683331504FLED PANEL IND RED 5V CYLINDER |
1,479 |
|
Datasheet | 249 | Bulk | Active | LED | Red | - | - | Vf (Typ), If (Max) | 5V | 20mA | Round | 0.38" (9.65mm) | 7.10mm Dia | Round with Flat Top | 55mcd | - | - | Wire Wrap | - | - |
|
50748613332500FLED PANEL IND 28V 20MA GREEN |
1,400 |
|
Datasheet | 507 | Bulk | Active | LED | Green | - | - | Vf (Typ), If (Max) | 28V | 20mA | Round | Cartridge-Holder Required | 7.14mm Dia | Round with Flat Top | 50mcd | - | - | - | - | - |
|
6201201304F8MM FLT PMI GRN 3 VDC W/TERMS |
4,414 |
|
Datasheet | 620 | Bag | Active | LED | Green | - | - | DC | 3V | 15mA | Round | 0.32" (8.20mm) | 5.50mm Dia | Round with Flat Top | 250mcd | - | - | Solder Lug | IP66/IP67, NEMA 4X | - |
|
6201204304F8MM FLT PMI GRN 24 VDC W/TERMS |
1,771 |
|
Datasheet | 620 | Bag | Active | LED | Green | - | - | DC | 24V | 15mA | Round | 0.32" (8.20mm) | 5.50mm Dia | Round with Flat Top | 250mcd | - | - | Solder Lug | IP66/IP67, NEMA 4X | - |
|
50748573332500FLED PANEL IND 5V 20MA GREEN |
4,224 |
|
Datasheet | 507 | Bulk | Active | LED | Green | - | - | Vf (Typ), If (Max) | 5V | 20mA | Round | Cartridge-Holder Required | 7.14mm Dia | Round with Flat Top | 50mcd | - | - | - | - | - |
|
24979683732504FLED PANEL IND GRN 5V STOVEPIPE |
2,239 |
|
Datasheet | 249 | Bulk | Active | LED | Green | - | - | Vf (Typ), If (Max) | 5V | 20mA | Round | 0.38" (9.65mm) | - | Round with Domed Top | 100mcd | - | - | Wire Wrap | - | - |
|

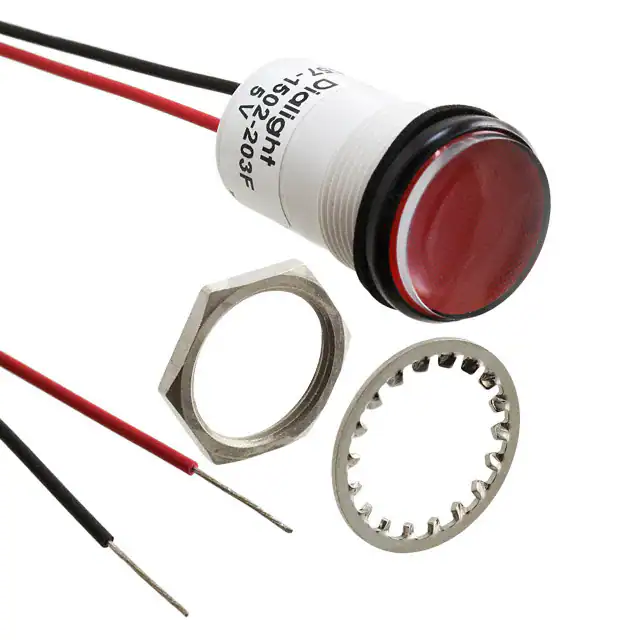

5571502203FLED PNL MT 11/16" 5V WT RED |
2,379 |
|
Datasheet | 557 | Bulk | Active | LED | Red | - | - | DC | 5V | 80mA | Round | 0.69" (17.53mm) | 17.80mm Dia | Round with Flat Top | - | - | - | Wire Leads - 0.50" (12.70mm) | Water Resistant | - |
