Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
162-8430-0932-502SUB MIN.PANEL IND. |
2,779 |
|
- |
162 | Box | Active | Incandescent | Green | - | Clear | - | - | - | Round | - | 5mm, T-1 3/4 | Round with Domed Top | - | - | - | Solder Lug | - | - |
|
801-1030-0334-504PRESS TO TEST IND. |
180 |
|
Datasheet | 801 | Box | Active | LED | Blue | - | Clear | - | - | - | Round | 0.47" (12.00mm) | - | Round with Flat Top | - | - | - | Quick Connect | - | - |
|
6091222140FLED PNL MT 9MM 24V BLACK GREEN |
2,476 |
|
Datasheet | 609 | Bag | Active | LED | Green | - | - | DC | 24V | 15mA | Round | 0.37" (9.40mm) | 6.10mm Dia | Round with Domed Top | 110mcd | - | - | - | IP66, NEMA 4X | - |
|
5571603203FLED PNL MT 11/16" 12V WT GREEN |
1,187 |
|
Datasheet | 557 | Bulk | Active | LED | Green | - | - | DC | 12V | 16mA | Round | 0.69" (17.53mm) | 17.80mm Dia | Round with Flat Top | - | - | - | Wire Leads - 0.50" (12.70mm) | Water Resistant | - |
|
6573009213FLED 17.48MM COOL WHITE PNL MOUNT |
2,432 |
|
Datasheet | 657 | Bulk | Active | LED | White | - | Clear | DC | 12V ~ 32V | 20mA | Round | 0.69" (17.53mm) | - | - | 2000mcd | - | 110°, 80° | Wire Leads - 0.50" (12.70mm) | IP67, NEMA 4X | - |
|
6211124304F22MM FLTPMI RGB 24VDC W/TERM |
3,167 |
|
Datasheet | 621 | Bag | Active | LED | Red, Green, Blue (RGB) | - | Diffused | DC | 24V | 15mA Red, 15mA Green, 15mA Blue | Round | 0.87" (22.00mm) | 13.80mm Dia | Round with Flat Top | 200mcd Red, 250mcd Green, 300mcd Blue | - | - | Solder Lug | IP66/IP67, NEMA 4X | - |
|
5580101001FLED PANEL IND RED DIFF SNAP-IN |
2,470 |
|
Datasheet | 558 | Bulk | Active | LED | Red | Red | Diffused | Vf (Typ), If (Max) | 2V | 20mA | Round | 0.16" (4.06mm) | 3mm, T-1 | Round with Domed Top | 10mcd | 650nm | - | - | - | - |
|
5590102001FLED PANEL RED DIFF 5V SNAP-IN |
3,319 |
|
Datasheet | 559 | Bulk | Active | LED | Red | Red | Diffused | DC | 5V | 15mA | Round | 0.25" (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | 8mcd | 635nm | 60° | PC Pin | - | - |
|
5592301003FLED PANEL YLW DIFF 1.9V SNAP-IN |
3,855 |
|
Datasheet | 559 | Bulk | Active | LED | Yellow | Yellow | Diffused | Vf (Typ), If (Max) | 1.9V | 20mA | Round | 0.25" (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | 29mcd | 585nm | 50° | Wire Leads - 6" (152.40mm) | - | - |
|

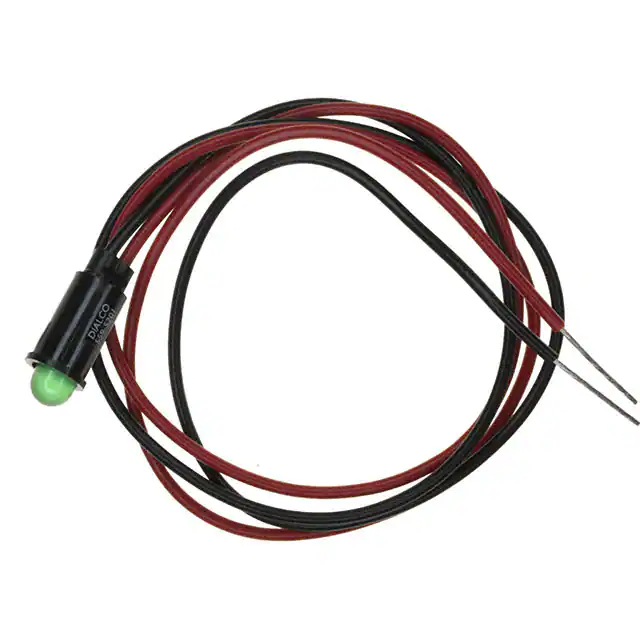

5595201007FLED SNAP-IN PANEL 5MM 2.2V GREEN |
3,504 |
|
Datasheet | 559 | Bulk | Active | LED | Green | - | Diffused | Vf (Typ), If (Max) | 2.2V | 25mA | Round | 0.25" (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | 34mcd | 563nm | 50° | Wire Leads - 14" (355.60mm) | - | - |
