Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
559-8320-007FRECT PMI IND, G/Y, 14" LEADS |
377 |
|
Datasheet | 559 | Bag | Active | LED | Yellow, Yellow-Green | - | - | DC | 2.1V | 20mA | Rectangle | 0.22" x 0.14" (5.49mm x 3.53mm) | 3.99mm x 2.00mm | Rectangle with Flat Top | 50mcd Yellow, 30mcd Yellow-Green | 591nm Yellow, 570nm Yellow-Green | 120° | Wire Leads - 14" (355.60mm) | - | - |
|
5590103027FLED PMI SNAP-IN RED PVC FREE |
250 |
|
Datasheet | 559 | Bulk | Active | LED | Red | - | - | DC | 12V | 15mA | Round | 0.25" (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | 8mcd | 635nm | 60° | Wire Leads - 14" (355.60mm) | - | - |
|
5590102027FLED PMI SNAP-IN RED PVC FREE |
345 |
|
Datasheet | 559 | Bulk | Active | LED | Red | - | - | DC | 5V | 15mA | Round | 0.25" (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | 8mcd | 635nm | 60° | Wire Leads - 14" (355.60mm) | - | - |
|

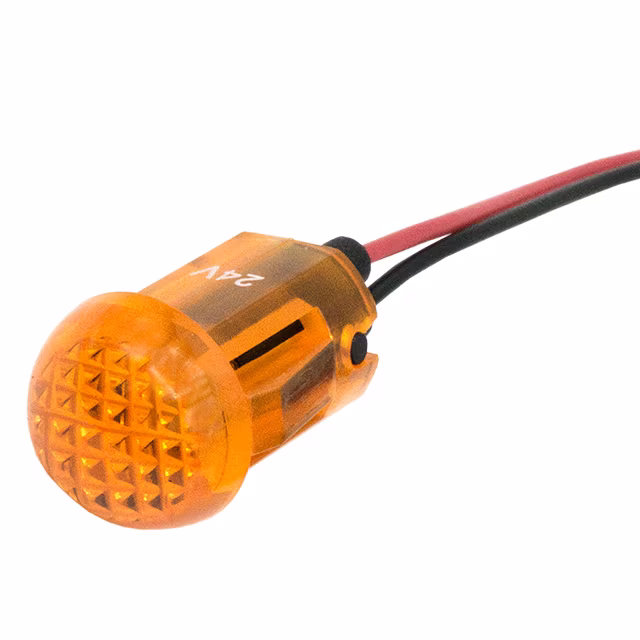

6552304103FLED PANEL INDICATOR YELLOW 24V |
515 |
|
Datasheet | 655 | Bag | Active | LED | Yellow | - | - | DC | 24V | 20mA | Round | 0.50" (12.70mm) | 13.97mm Dia | Round with Domed Top | 45mcd | - | - | Wire Leads - 4.54" (115.32mm) | - | - |
|

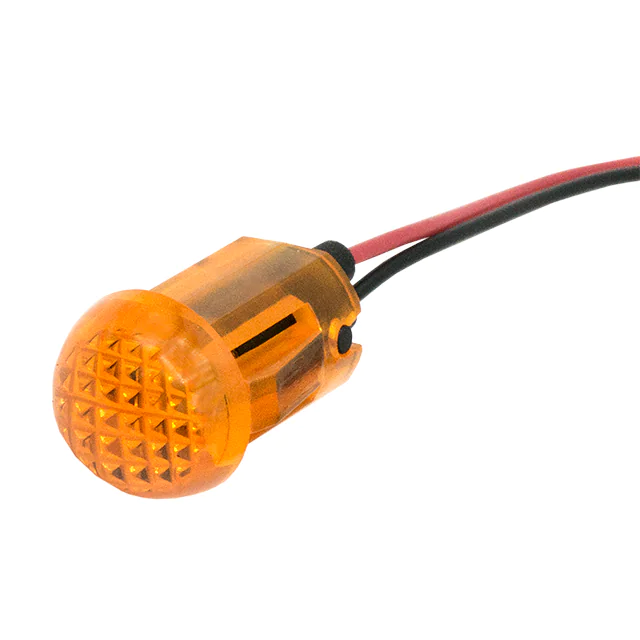

6552303103FLED PANEL INDICATOR YELLOW 12V |
399 |
|
Datasheet | 655 | Bag | Active | LED | Yellow | - | - | DC | 12V | 20mA | Round | 0.50" (12.70mm) | 13.97mm Dia | Round with Domed Top | 45mcd | - | - | Wire Leads - 4.54" (115.32mm) | - | - |
|
|
6104232120FLED PNL IND 10MM SQUARE GRN POLY |
167 |
|
Datasheet | 610 | Bulk | Active | LED | Green | - | - | DC | 6V | - | Round | 0.41" (10.41mm) | 11.94mm | Square with Flat Top | 110mcd | - | - | - | - | - |
|
6551303104FLED PANEL INDICATOR YELLOW 12V |
396 |
|
Datasheet | 655 | Bag | Active | LED | Yellow | - | - | DC | 12V | 20mA | Round | 0.50" (12.70mm) | 16.00mm Dia | Round with Flat Top | 100mcd | - | - | Solder Lug | - | - |
|

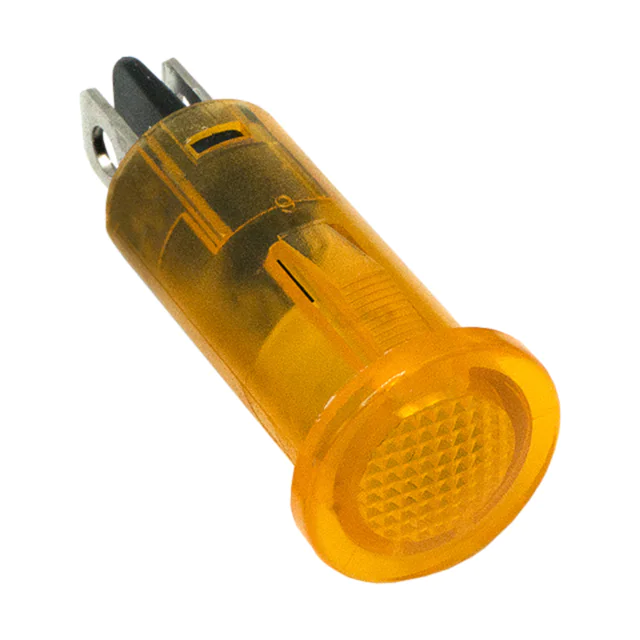

6551304104FLED PANEL INDICATOR YELLOW 24V |
394 |
|
Datasheet | 655 | Bag | Active | LED | Yellow | - | - | DC | 24V | 20mA | Round | 0.50" (12.70mm) | 16.00mm Dia | Round with Flat Top | 100mcd | - | - | Solder Lug | - | - |
|
6551303103FLED PANEL INDICATOR YELLOW 12V |
213 |
|
Datasheet | 655 | Bag | Active | LED | Yellow | - | - | DC | 12V | 20mA | Round | 0.50" (12.70mm) | 16.00mm Dia | Round with Flat Top | 100mcd | - | - | Wire Leads - 3" (76.20mm) | - | - |
|
6823132121F12MM HR/R PMI-6VDC |
153 |
|
Datasheet | 682 | Bag | Active | LED | Red | Red | - | DC | 6V | 20mA | Round | 0.49" (12.45mm) | - | Round with Flat Top | 510mcd | - | - | Solder Lug | - | - |
