Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

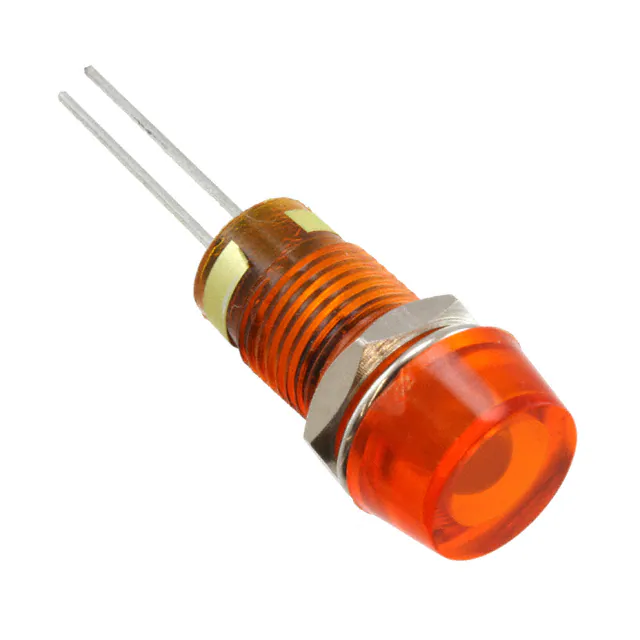

6083331110FLED PNL IND 8MM YLW LOCKWASH/NUT |
326 |
|
Datasheet | 608 | Bulk | Active | LED | Yellow | - | - | Vf (Typ), If (Max) | 2V | 15mA | Round | 0.33" (8.38mm) | 8.89mm Dia | Round with Flat Top | 4mcd | - | - | PC Pin | - | - |
|
5583101007FLED PANEL IND RED/GRN SNAP-IN |
526 |
|
Datasheet | 558 | Bulk | Active | LED | Green, Red | - | - | Vf (Typ), If (Max) | 2.1V Green, 1.8V Red | 30mA Green, 40mA Red | Round | 0.16" (4.06mm) | 3mm, T-1 | Round with Domed Top | 3.7mcd Green, 12.6mcd Red | 565nm Green, 660nm Red | 200° | Wire Leads - 14" (355.60mm) | - | - |
|
5595101027FLED PMI SNAP-IN RED PVC FREE |
833 |
|
Datasheet | 559 | Bulk | Active | LED | Red | Red | Diffused | Vf (Typ), If (Max) | 2.1V | 25mA | Round | 0.25" (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | 34mcd | 650nm | 50° | Wire Leads - 14" (355.60mm) | - | - |
|

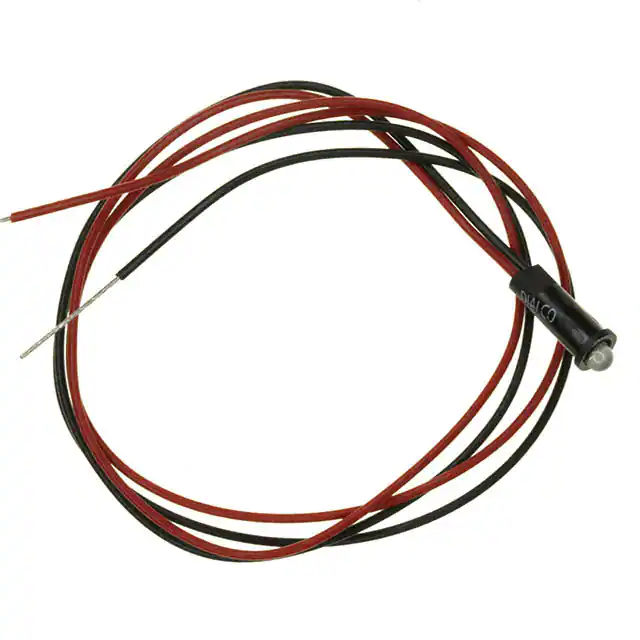

5583201007FIND SNAP-IN PANEL MNT YLW/GREEN |
642 |
|
Datasheet | 558 | Bulk | Active | LED | Green, Yellow | - | - | Vf (Typ), If (Max) | 2.1V Green, 2.1V Yellow | 30mA Green, 20mA Yellow | Round | 0.16" (4.06mm) | 3mm, T-1 | Round with Domed Top | 12.3mcd Green, 5.8mcd Yellow | 565nm Green, 585nm Yellow | 80° | Wire Leads - 14" (355.60mm) | - | - |
|
5583001003FLED PANEL IND RED/GRN SNAP-IN |
371 |
|
Datasheet | 558 | Bulk | Active | LED | Green, Red | - | - | Vf (Typ), If (Max) | 2V Green, 1.9V Red | 30mA Green, 30mA Red | Round | 0.16" (4.06mm) | 3mm, T-1 | Round with Domed Top | 8.7mcd Green, 5.6mcd Red | 565nm Green, 630nm Red | 200° | Wire Leads - 6" (152.40mm) | - | - |
|
5598200007FRECT PMI IND, G, 14" LEADS |
468 |
|
Datasheet | 559 | Bulk | Active | LED | Green | - | - | DC | 2.1V | 20mA | Rectangle | 0.22" x 0.14" (5.49mm x 3.53mm) | 3.99mm x 2.00mm | Rectangle with Flat Top | 120mcd | 565nm | 104° | Wire Leads - 14" (355.60mm) | - | - |
|

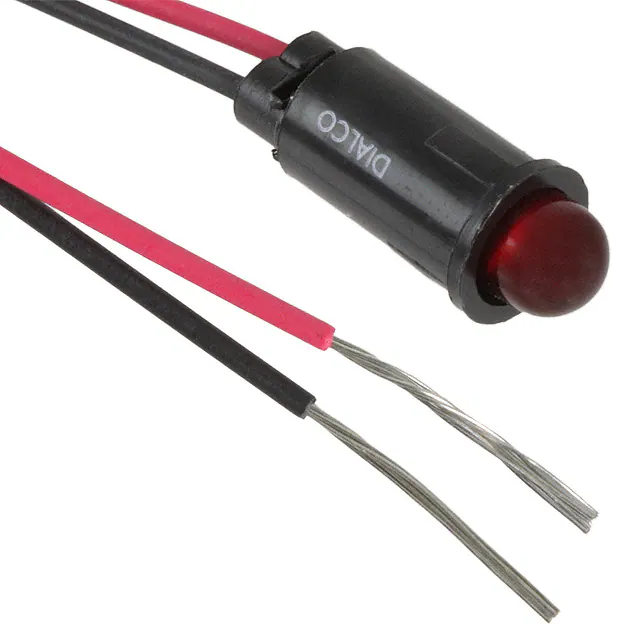

5590102023FLED PMI SNAP-IN RED PVC FREE |
387 |
|
Datasheet | 559 | Bulk | Active | LED | Red | - | - | DC | 5V | 15mA | Round | 0.25" (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | 8mcd | 635nm | 60° | Wire Leads - 6" (152.40mm) | - | - |
|
6073132330FLED 7MM RED PMI W GASKET |
193 |
|
Datasheet | 607 | Bulk | Active | LED | Red | - | - | DC | 12V | 15mA | Round | 0.28" (7.20mm) | - | Round with Flat Top | 35mcd | - | - | Solder Lug | IP66, NEMA 4X | - |
|
|
5580803001FLED PANEL IND BLU WHT DFF SNAPIN |
468 |
|
Datasheet | 558 | Bulk | Active | LED | Blue | Blue | Diffused | Vf (Typ), If (Max) | 3.2V | 30mA | Round | 0.16" (4.06mm) | 3mm, T-1 | Round with Domed Top | 57mcd | 468nm | 100° | - | - | - |
|
5592101027FLED PMI SNAP-IN RED PVC FREE |
459 |
|
Datasheet | 559 | Bulk | Active | LED | Red | Red | Diffused | Vf (Typ), If (Max) | 2.2V | 20mA | Round | 0.25" (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | 6.3mcd | 650nm | 50° | Wire Leads - 14" (355.60mm) | - | - |
