Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5596201023FLED PMI SNAP-IN GRN PVC FREE |
1,191 |
|
Datasheet | 559 | Bulk | Active | LED | Green | Colorless | Clear | Vf (Typ), If (Max) | 3.2V | 30mA | Round | 0.25" (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | 5000mcd | 525nm | 30° | Wire Leads - 6" (152.40mm) | - | - |
|
|
5580701003FLED PANEL IND WATER CLR SNAP-IN |
588 |
|
Datasheet | 558 | Bulk | Active | LED | Red | Colorless | Clear | Vf (Typ), If (Max) | 1.8V | 40mA | Round | 0.16" (4.06mm) | 3mm, T-1 | Round with Domed Top | 170mcd | 660nm | 45° | Wire Leads - 6" (152.40mm) | - | - |
|
5595201027FLED PMI SNAP-IN GRN PVC FREE |
500 |
|
Datasheet | 559 | Bulk | Active | LED | Green | Green | Diffused | Vf (Typ), If (Max) | 2.2V | 20mA | Round | 0.25" (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | 34mcd | 563nm | 50° | Wire Leads - 14" (355.60mm) | - | - |
|
5580302003FLED PANEL IND YLW DIFF SNAP-IN |
475 |
|
Datasheet | 558 | Bulk | Active | LED | Yellow | - | - | DC | 5V | 10mA | Round | 0.16" (4.06mm) | 3mm, T-1 | Round with Domed Top | 12.6mcd | 585nm | 60° | Wire Leads - 6" (152.40mm) | - | - |
|
5580501003FLED PANEL IND GRN SNAP-IN |
365 |
|
Datasheet | 558 | Bulk | Active | LED | Green | Colorless | Clear | Vf (Typ), If (Max) | 2.1V | 30mA | Round | 0.16" (4.06mm) | 3mm, T-1 | Round with Domed Top | 70mcd | 565nm | 45° | Wire Leads - 6" (152.40mm) | - | - |
|
5590303003FLED PMI SNAP-IN 583NM YLW .250" |
712 |
|
Datasheet | 559 | Bulk | Active | LED | Yellow | Yellow | Diffused | DC | 12V | 15mA | Round | 0.25" (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | 8mcd | 583nm | 60° | Wire Leads - 6" (152.40mm) | - | - |
|
|
5593201001FLED SNAP-IN PNL IND Y/G BI-CLR |
600 |
|
Datasheet | 559 | Bulk | Active | LED | Green, Yellow | - | - | Vf (Typ), If (Max) | 2.1V Green, 2.1V Yellow | 30mA Green, 20mA Yellow | Round | 0.25" (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | 19mcd Green, 12.6mcd Yellow | 565nm Green, 585nm Yellow | 50° | PC Pin | - | - |
|
6073332130FLED PNL IND 7MM YLW INTERNL |
291 |
|
Datasheet | 607 | Bulk | Active | LED | Yellow | - | - | DC | 12V | 15mA | Round | 0.28" (7.20mm) | - | Round with Flat Top | 40mcd | - | - | Solder Lug | IP66, NEMA 4X | - |
|

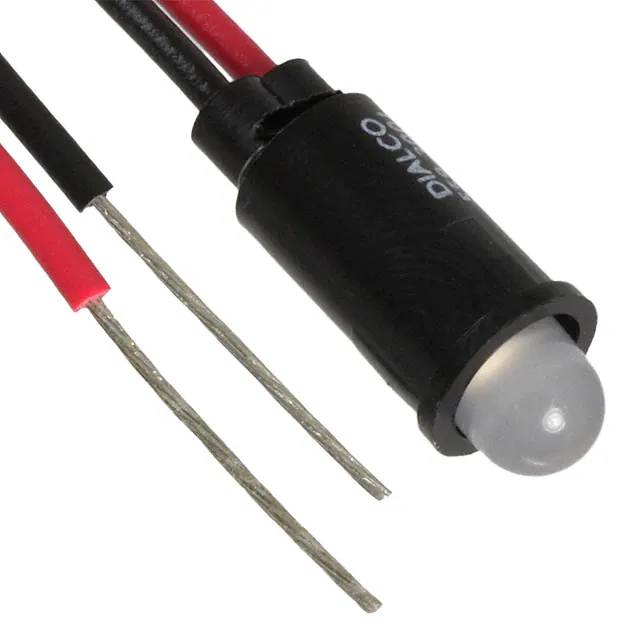

5593001003FLED PANEL RED/GRN SNAP-IN 6"LD |
389 |
|
Datasheet | 559 | Bulk | Active | LED | Green, Red | - | - | Vf (Typ), If (Max) | 2.1V Green, 1.8V Red | 30mA Green, 40mA Red | Round | 0.25" (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | 40mcd Green, 90mcd Red | 565nm Green, 660nm Red | 60° | Wire Leads - 6" (152.40mm) | - | - |
|
5581301003FLED PMI SNAP-IN 565NM GRN .156" |
424 |
|
Datasheet | 558 | Bulk | Active | LED | Green | Green | Diffused | Vf (Typ), If (Max) | 1.9V | 7mA | Round | 0.16" (4.06mm) | 3mm, T-1 | Round with Domed Top | 1.6mcd | 565nm | 60° | Wire Leads - 6" (152.40mm) | - | - |
