Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5580201027FLED PMI .158" GREEN PVC FREE |
676 |
|
Datasheet | 558 | Bulk | Active | LED | Green | Green | Diffused | Vf (Typ), If (Max) | 2.1V | 25mA | Round | 0.16" (4.06mm) | 3mm, T-1 | Round with Domed Top | 16mcd | 563nm | 40° | Wire Leads - 14" (355.60mm) | - | - |
|
5581101023FLED PMI SNAP-IN RED PVC FREE |
712 |
|
Datasheet | 558 | Bulk | Active | LED | Red | Red | Diffused | Vf (Typ), If (Max) | 1.7V | 7mA | Round | 0.16" (4.06mm) | 3mm, T-1 | Round with Domed Top | 2.3mcd | 635nm | 60° | Wire Leads - 6" (152.40mm) | - | - |
|
5583001023FLED PMI SNAP-IN RED/GRN PVC FREE |
642 |
|
Datasheet | 558 | Bulk | Active | LED | Green, Red | - | - | Vf (Typ), If (Max) | 2V Green, 1.9V Red | 30mA Green, 30mA Red | Round | 0.16" (4.06mm) | 3mm, T-1 | Round with Domed Top | 8.7mcd Green, 5.6mcd Red | 565nm Green, 630nm Red | 200° | Wire Leads - 6" (152.40mm) | - | - |
|
5581301023FLED PMI SNAP-IN GREEN PVC FREE |
451 |
|
Datasheet | 558 | Bulk | Active | LED | Green | Green | Diffused | Vf (Typ), If (Max) | 1.9V | 7mA | Round | 0.16" (4.06mm) | 3mm, T-1 | Round with Domed Top | 1.6mcd | 565nm | 60° | Wire Leads - 6" (152.40mm) | - | - |
|
5580501023FLED PMI SNAP-IN GREEN PVC FREE |
677 |
|
Datasheet | 558 | Bulk | Active | LED | Green | Colorless | Clear | Vf (Typ), If (Max) | 2.1V | 30mA | Round | 0.16" (4.06mm) | 3mm, T-1 | Round with Domed Top | 70mcd | 565nm | 45° | Wire Leads - 6" (152.40mm) | - | - |
|
5593001023FLED PMI SNAP-IN RED/GRN PVC FREE |
461 |
|
Datasheet | 559 | Bulk | Active | LED | Green, Red | - | - | Vf (Typ), If (Max) | 2.1V Green, 1.8V Red | 30mA Green, 40mA Red | Round | 0.25" (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | 40mcd Green, 90mcd Red | 565nm Green, 660nm Red | 60° | Wire Leads - 6" (152.40mm) | - | - |
|

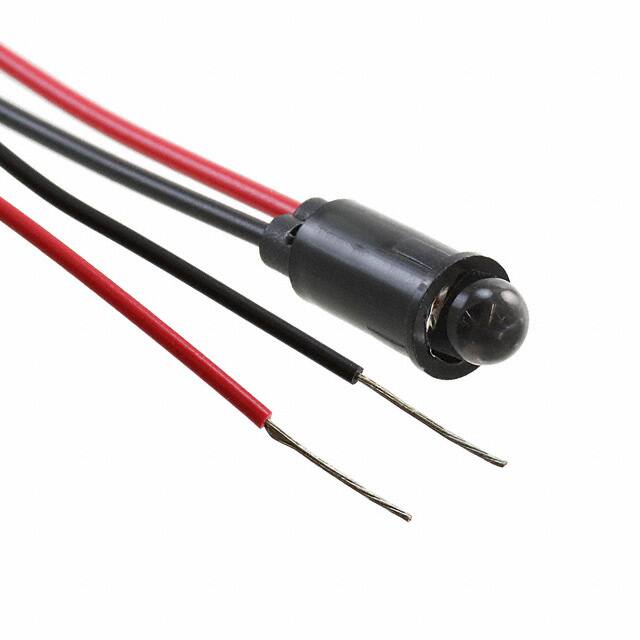

5595501003FLED SNAP-IN PANEL IND RED |
103 |
|
Datasheet | 559 | Bulk | Active | LED | Red | Colorless | Clear | Vf (Typ), If (Max) | 2.2V | 30mA | Round | 0.25" (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | 125mcd | 635nm | 24° | Wire Leads - 6" (152.40mm) | - | - |
|
5581701003FLED PMI SNAP-IN 660NM RED .156" |
689 |
|
Datasheet | 558 | Bulk | Active | LED | Red | Red | Clear | Vf (Typ), If (Max) | 1.8V | 40mA | Round | 0.16" (4.06mm) | 3mm, T-1 | Round with Domed Top | 170mcd | 660nm | 45° | Wire Leads - 6" (152.40mm) | - | - |
|
5593201007FLED PANEL YLW/GRN SNAP-IN 14"LD |
291 |
|
Datasheet | 559 | Bulk | Active | LED | Green, Yellow | White | Diffused | Vf (Typ), If (Max) | 2.1V Green, 2.1V Yellow | 30mA Green, 20mA Yellow | Round | 0.25" (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | 19mcd Green, 12.6mcd Yellow | 565nm Green, 585nm Yellow | 50° | Wire Leads - 12" (304.80mm) | - | - |
|
5580601007FLED PANEL IND YLW SNAP-IN |
577 |
|
Datasheet | 558 | Bulk | Active | LED | Yellow | Colorless | Clear | Vf (Typ), If (Max) | 1.9V | 50mA | Round | 0.16" (4.06mm) | 3mm, T-1 | Round with Domed Top | 200mcd | 592nm | 45° | Wire Leads - 14" (355.60mm) | - | - |
