Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
31-00031CBL COIL SHLD 3C 26AWG 2230MM |
3,639 |
|
Datasheet | - | Bulk | Active | Round - Coiled | 3 | 26 AWG | 19/0.0039" | Copper, Bare | Thermoplastic Polyurethane (TPU) | 0.169" (4.29mm) | Braid | 7.32' (2.23m) | Black | UL Style 20280 | Drain Wire | 300 V | - | - | 0.0315" (0.800mm) | Thermoplastic Elastomer (TPE) | - |
|
30-01101CABLE 10COND 22AWG BLACK METER |
4,444 |
|
Datasheet | - | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 10 | 22 AWG | 17/0.0063" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.299" (7.60mm) | Foil, Braid | Enter Number of Meters in Order Quantity | Black | UL Style 2464 | Drain Wire | 300 V | -20°C ~ 80°C | - | 0.0315" (0.800mm) | Poly-Vinyl Chloride (PVC) | - |
|

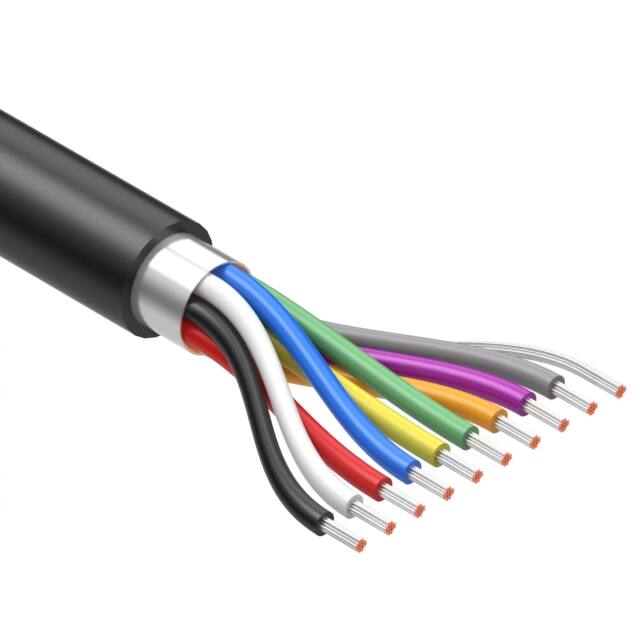

30-01514CBL 9COND 18AWG SHLD MPPE |
2,551 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 9 | 18 AWG | 41/0.0063" | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.323" (8.20mm) | Foil | 502.0' (153.0m) | Black | UL Style 21509 | Drain Wire | 600 V | -40°C ~ 105°C | - | 0.0315" (0.800mm) | Polyphenylene Ether, Modified (mPPE) | - |
|

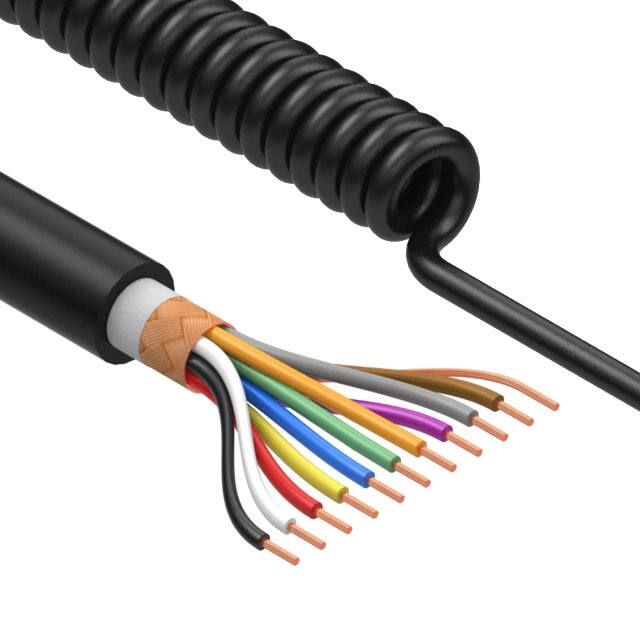

31-00156CBL COIL SHLD 10C 26AWG 1115MM |
3,258 |
|
Datasheet | - | Bulk | Active | Round - Coiled | 10 | 26 AWG | 19/0.0039" | Copper, Bare | Thermoplastic Polyurethane (TPU) | 0.244" (6.20mm) | Braid | 3.68' (1.12m) | Black | UL Style 20280 | Drain Wire | 300 V | - | - | 0.0315" (0.800mm) | Thermoplastic Elastomer (TPE) | - |
|

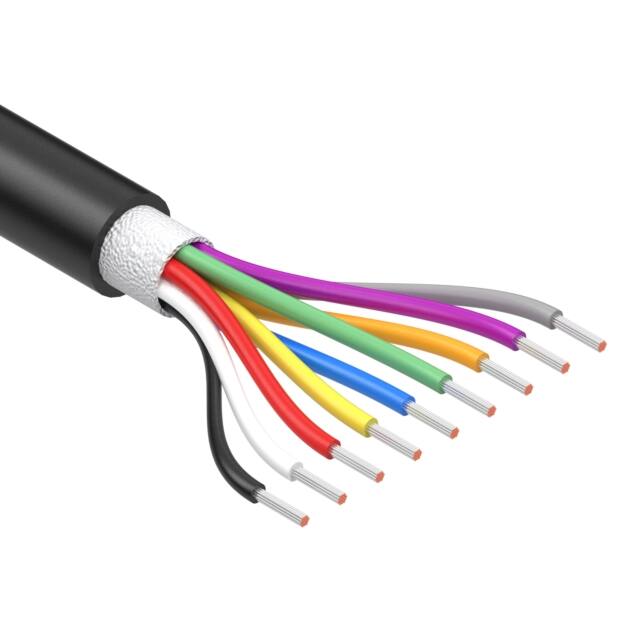

30-01956CABLE 9COND 18AWG BLACK |
4,592 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 9 | 18 AWG | 65/36 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.272" (6.91mm) | - | 502.0' (153.0m) | Black | UL Style 21296 | - | 300 V | -40°C ~ 105°C | - | 0.0236" (0.600mm) | Fluorinated Ethylene-Propylene (FEP) | - |
|
30-02030CABLE 9COND 18AWG BLACK |
2,553 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 9 | 18 AWG | 41/0.0063" | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.323" (8.20mm) | - | 502.0' (153.0m) | Black | UL Style 21509 | Biological Compatibility | 600 V | -40°C ~ 105°C | - | 0.0114" (0.290mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
30-00217CABLE 4COND 32AWG BLACK SHLD 5M |
3,067 |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | Multi-Conductor | 4 | 32 AWG | 19/0.0019" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.079" (2.01mm) | Spiral | 16.40' (5.00m) | Black | - | - | 150 V | 80°C | - | 0.0098" (0.250mm) | Polyethylene (PE) | - |
|
30-00218CABLE 4COND 32AWG WHITE SHLD 5M |
2,278 |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | Multi-Conductor | 4 | 32 AWG | 19/0.0019" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.079" (2.01mm) | Spiral | 16.40' (5.00m) | White | - | - | 150 V | 80°C | - | 0.0098" (0.250mm) | Polyethylene (PE) | - |
|
30-03249CABLE 14COND 18AWG BLACK SHLD |
3,627 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 14 | 18 AWG | 165/0.0031" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.413" (10.49mm) | Foil, Braid | - | Black | - | - | 300 V | -20°C ~ 80°C | - | 0.0354" (0.900mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
30-03221CBL 5COND 18AWG BLK SHLD METER |
3,212 |
|
Datasheet | - | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 5 | 18 AWG | 165/0.0031" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.291" (7.39mm) | Foil, Braid | Enter Number of Meters in Order Quantity | Black | UL Style 2464 | Drain Wire | 300 V | -20°C ~ 80°C | - | 0.0354" (0.900mm) | Poly-Vinyl Chloride (PVC) | - |
