Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
30-03242CABLE 12COND 18AWG BLACK SHLD |
2,160 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 12 | 18 AWG | 165/0.0031" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.394" (10.01mm) | Foil, Braid | - | Black | - | - | 300 V | -20°C ~ 80°C | - | 0.0354" (0.900mm) | Poly-Vinyl Chloride (PVC) | - |
.jpg)
|
30-00504CABLE 5COND 28AWG BLACK 5M |
3,261 |
|
Datasheet | - | Spool | Discontinued at Digi-Key | Multi-Conductor | 5 | 28 AWG | 7/36 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.165" (4.19mm) | - | 16.40' (5.00m) | Black | UL Style 2464 | - | 300 V | 80°C | - | 0.0315" (0.800mm) | Poly-Vinyl Chloride (PVC) | - |
|
31-00099CBL COIL SHLD 7C 24AWG 1115MM |
1,476 |
|
Datasheet | - | Bulk | Active | Round - Coiled | 7 | 24 AWG | 26/0.0039" | Copper, Bare | Thermoplastic Polyurethane (TPU) | 0.213" (5.41mm) | Braid | 3.68' (1.12m) | Black | UL Style 20280 | Drain Wire | 300 V | - | - | 0.0335" (0.851mm) | Thermoplastic Elastomer (TPE) | - |
|
30-00935CABLE 8COND 18AWG BLACK SHLD |
1,665 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 8 | 18 AWG | 65/0.0051" | Copper, Bare | Thermoplastic Polyurethane (TPU) | 0.323" (8.20mm) | Braid | 502.0' (153.0m) | Black | UL Style 20280 | Drain Wire | 300 V | -40°C ~ 80°C | - | 0.0335" (0.851mm) | Thermoplastic Elastomer (TPE) | - |
|

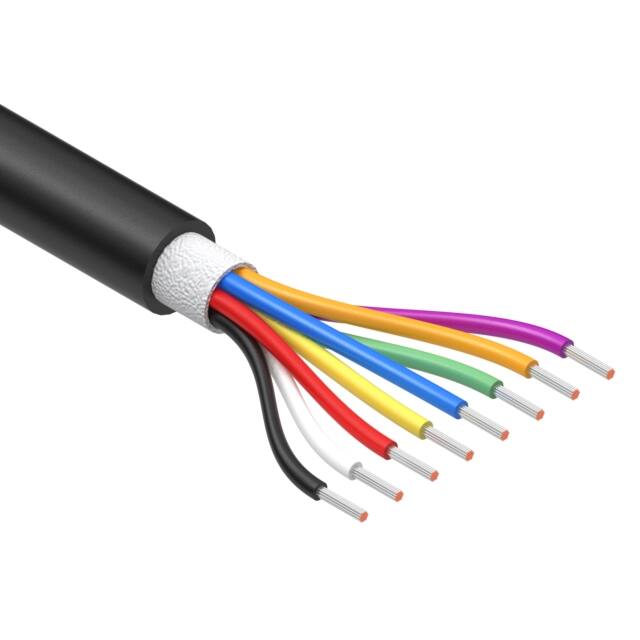

30-01948CABLE 8COND 18AWG BLACK |
4,394 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 8 | 18 AWG | 65/36 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.256" (6.50mm) | - | 502.0' (153.0m) | Black | UL Style 21296 | - | 300 V | -40°C ~ 105°C | - | 0.0236" (0.600mm) | Fluorinated Ethylene-Propylene (FEP) | - |
|
|
30-02475CABLE 10COND 20AWG BLACK SHLD |
3,350 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 10 | 20 AWG | 41/36 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.264" (6.71mm) | Spiral | 502.0' (153.0m) | Black | UL Style 21296 | - | 300 V | -40°C ~ 105°C | - | 0.0236" (0.600mm) | Fluorinated Ethylene-Propylene (FEP) | - |
|
|
30-02450CABLE 7COND 18AWG BLACK SHLD |
1,090 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 7 | 18 AWG | 65/36 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.244" (6.20mm) | Spiral | 502.0' (153.0m) | Black | UL Style 21296 | - | 300 V | -40°C ~ 105°C | - | 0.0236" (0.600mm) | Fluorinated Ethylene-Propylene (FEP) | - |
|

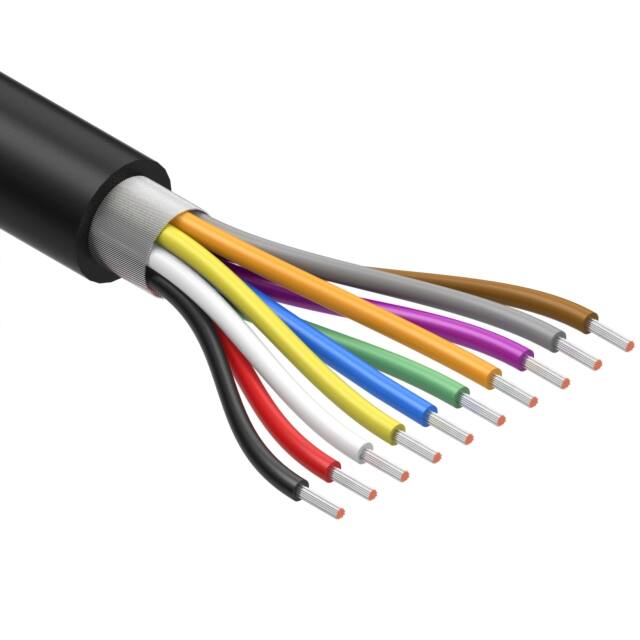

30-01882CABLE 10COND 18AWG BLACK SHLD |
1,970 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 10 | 18 AWG | 65/0.005" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.327" (8.31mm) | Spiral | 502.0' (153.0m) | Black | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0299" (0.759mm) | High Density Polyethylene (HDPE) | - |
|
|
30-03257CABLE 18COND 20AWG BLACK SHLD |
1,597 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 18 | 20 AWG | 105/0.0031" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.394" (10.01mm) | Foil, Braid | - | Black | - | - | 300 V | -20°C ~ 80°C | - | 0.0354" (0.900mm) | Poly-Vinyl Chloride (PVC) | - |
|
30-00353CABLE 2COND 20AWG BLACK 5M |
4,198 |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | Multi-Conductor | 2 | 20 AWG | 26/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.185" (4.70mm) | - | 16.40' (5.00m) | Black | UL Style 2464 | - | 300 V | 80°C | - | 0.0299" (0.759mm) | Poly-Vinyl Chloride (PVC) | - |
